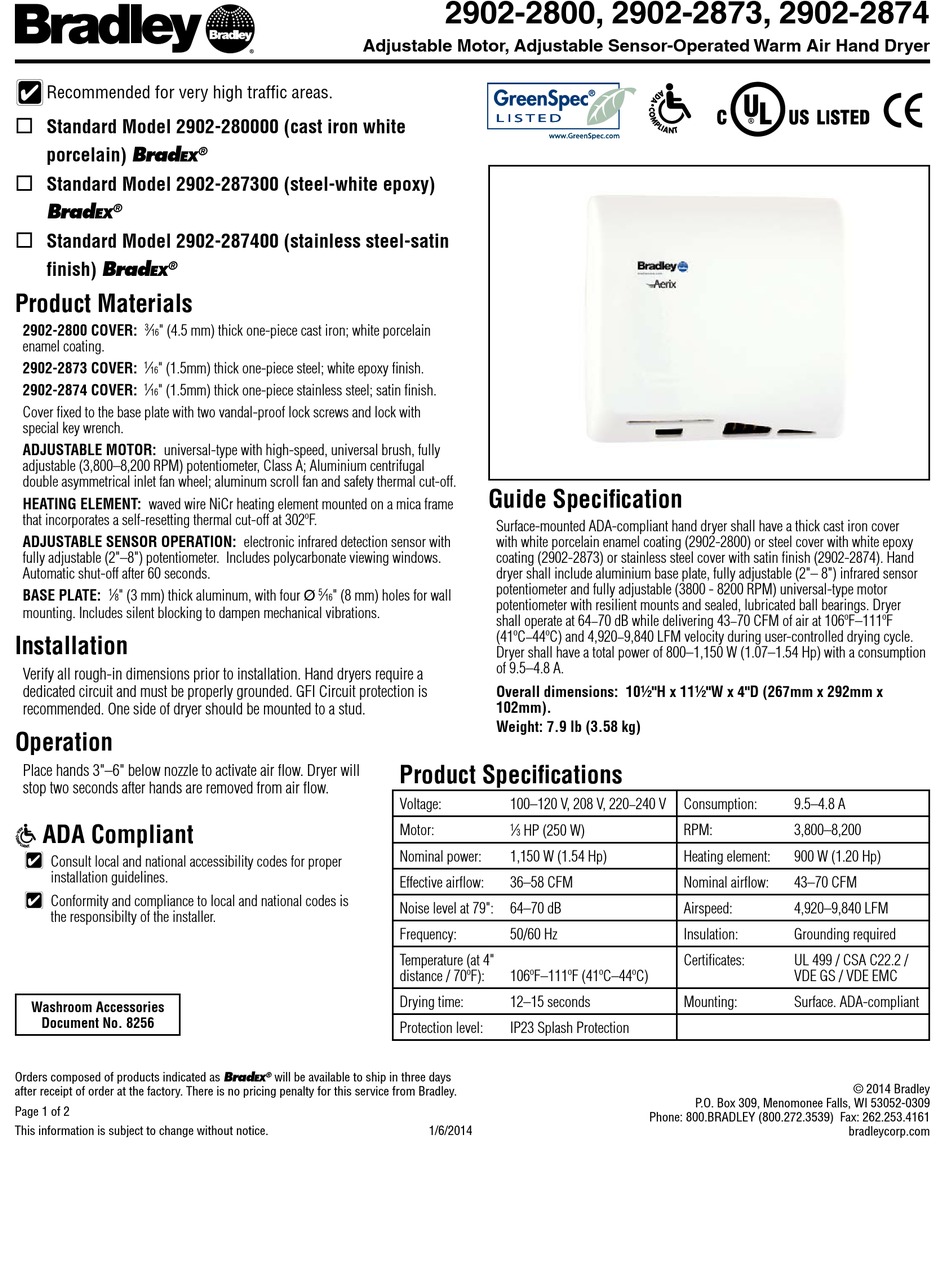

Bradley 2902-2800 Product Specifications

Recommended for very high traffic areas.
 Standard Model 2902-280000 (cast iron white
porcelain) Brad
ex
 Standard Model 2902-287300 (steel-white epoxy)
Brad
®
ex
 Standard Model 2902-287400 (stainless steel-satin
finish) Brad
®
ex
Product Materials
⁄
2902-2800 COVER: " (4.5 mm) thick one-piece cast iron; white porcelain
3
16
enamel coating.
⁄
2902-2873 COVER: " (1.5mm) thick one-piece steel; white epoxy finish.
1
16
⁄
2902-2874 COVER: " (1.5mm) thick one-piece stainless steel; satin finish.
1
16
Cover fixed to the base plate with two vandal-proof lock screws and lock with
special key wrench.
ADJUSTABLE MOTOR: universal-type with high-speed, universal brush, fully
adjustable (3,800–8,200 RPM) potentiometer, Class A; Aluminium centrifugal
double asymmetrical inlet fan wheel; aluminum scroll fan and safety thermal cut-off.
HEATING ELEMENT: waved wire NiCr heating element mounted on a mica frame
that incorporates a self-resetting thermal cut-off at 302ºF.
ADJUSTABLE SENSOR OPERATION: electronic infrared detection sensor with
fully adjustable (2"–8") potentiometer. Includes polycarbonate viewing windows.
Automatic shut-off after 60 seconds.
BASE PLATE: ⁄
" (3 mm) thick aluminum, with four Ø
1
8
mounting. Includes silent blocking to dampen mechanical vibrations.
Installation
Verify all rough-in dimensions prior to installation. Hand dryers require a
dedicated circuit and must be properly grounded. GFI Circuit protection is
recommended. One side of dryer should be mounted to a stud.
Operation
Place hands 3"–6" below nozzle to activate air flow. Dryer will
stop two seconds after hands are removed from air flow.
ADA Compliant
Consult local and national accessibility codes for proper
installation guidelines.
Conformity and compliance to local and national codes is
the responsibilty of the installer.
Washroom Accessories
Document No. 8256
Orders composed of products indicated as Brad
after receipt of order at the factory. There is no pricing penalty for this service from Bradley.
Page 1 of 2
This information is subject to change without notice.
Adjustable Motor, Adjustable Sensor-Operated Warm Air Hand Dryer
®
⁄
" (8 mm) holes for wall
5
16
will be available to ship in three days
®
ex
2902-2800, 2902-2873, 2902-2874
Guide Specification
Surface-mounted ADA-compliant hand dryer shall have a thick cast iron cover
with white porcelain enamel coating (2902-2800) or steel cover with white epoxy
coating (2902-2873) or stainless steel cover with satin finish (2902-2874). Hand
dryer shall include aluminium base plate, fully adjustable (2"– 8") infrared sensor
potentiometer and fully adjustable (3800 - 8200 RPM) universal-type motor
potentiometer with resilient mounts and sealed, lubricated ball bearings. Dryer
shall operate at 64−70 dB while delivering 43−70 CFM of air at 106ºF–111ºF
(41ºC−44ºC) and 4,920−9,840 LFM velocity during user-controlled drying cycle.
Dryer shall have a total power of 800–1,150 W (1.07–1.54 Hp) with a consumption
of 9.5–4.8 A.
Overall dimensions: 10½"H x 11½"W x 4"D (267mm x 292mm x
102mm).
Weight: 7.9 lb (3.58 kg)

Product Specifications

Voltage: 100–120 V, 208 V, 220−240 V
Motor: ⁄
HP (250 W)
1
3
Nominal power: 1,150 W (1.54 Hp)
Effective airflow: 36–58 CFM
Noise level at 79": 64–70 dB
Frequency: 50/60 Hz
Temperature (at 4"
distance / 70ºF): 106ºF–111ºF (41ºC–44ºC)
Drying time: 12–15 seconds
Protection level: IP23 Splash Protection
1/6/2014
®
Consumption: 9.5–4.8 A
RPM: 3,800–8,200
Heating element: 900 W (1.20 Hp)
Nominal airflow: 43–70 CFM
Airspeed: 4,920–9,840 LFM
Insulation: Grounding required
Certificates: UL 499 / CSA C22.2 /
VDE GS / VDE EMC
Mounting: Surface. ADA-compliant
