Maintenance Manual
Hand Dryer
5G68
Scan or click code to view
Installation Guide (English)
Read the instructions in this manual before beginning installation. Save these instructions
and refer to them for inspection, maintenance, and troubleshooting information.
For questions regarding the operation, installation or maintenance of this product, visit bradleycorp.com or call 800.BRADLEY (800.272.3539).
Product warranties and parts information may also be found under "Resources" on our website at bradleycorp.com.
P20-246 Rev. A: ECO 22-15-010
© 2023 Bradley
Page 1 of 9
10/31/2023
Installation and
Scan or click code to view
Installation Guide (French)

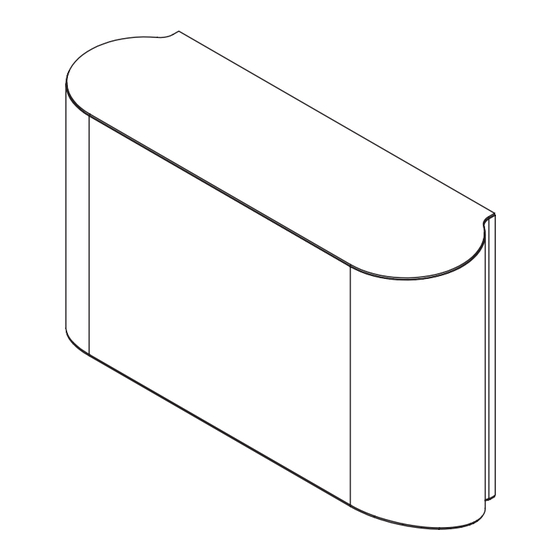

Elvari™ Surface-Mounted
ADA Compliant Hand Dryer
Table of Contents
Safety Information .............................................................2
Compliance Information ....................................................2
Dimensions ........................................................................3
Circuit Diagrams ................................................................3
Technical Specifications ....................................................4
Filter Installation ................................................................4
Installation .........................................................................5
Operation ...........................................................................6
Warm Air Speed Adjustment .............................................6
Heater Element Switch ON/1 ............................................7
Sensor Range Adjustment ................................................7
Cleaning and Maintenance ................................................8
Troubleshooting: Initial Installation Failures ......................9
Troubleshooting: In-Service Failures .................................9
Scan or click code to view
Installation Guide (Spanish)
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
2B4 Series
Scan or click code to view
Installation Guide (Arabic)
P.O. Box 309
+1 262 251 6000
bradleycorp.com
Advertisement
Table of Contents
Related Manuals for Bradley Elvari 2B4 Series
Summary of Contents for Bradley Elvari 2B4 Series
-
Page 1: Table Of Contents
For questions regarding the operation, installation or maintenance of this product, visit bradleycorp.com or call 800.BRADLEY (800.272.3539). Product warranties and parts information may also be found under “Resources” on our website at bradleycorp.com. -
Page 2: Safety Information
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The responsible party for this product is Bradley Corporation. Address: W142N9101 Fountain Blvd, Menomonee Falls, WI, 53051. Phone number: (262)-251-6000. -
Page 3: Dimensions
Elvari™ Automatic Hand Dryer – 2B4 Series Installation & Maintenance Dimensions (mm) 12.5" (318) 3.9" (100) 8.5" (217) Circuit Diagrams 110~120V 220~240V Bradley • P20-246 Rev. A: ECO 22-15-010 10/31/2023... -
Page 4: Technical Specifications
12.5" W x 8.5" H x 3.9" D Unit Size (318mm x 217mm x 100mm) Filter Installation Attach the filter kit to the underside of the hand dryer cover using the two screws (provided) as shown. Bradley • P20-246 Rev. A: ECO 22-15-010 10/31/2023... -
Page 5: Installation
Fix the base plate to the wall using four ¼" x 1½" screws, Reinstall the front cover and secure plastic washers (black), and chrome washers in the order shown below. using the L key. Order of Fastener Installation Chrome Washer Plastic Washer Screw (black) Bradley • P20-246 Rev. A: ECO 22-15-010 10/31/2023... -
Page 6: Operation
VR shaft. • Gently turn clockwise (CW) to increase power to maximum (+) • Gently turn counter-clockwise (CCW) to 110~120V reduce power as required (-) DO NOT OVERTURN! VR for Air Speed 220~240V Bradley • P20-246 Rev. A: ECO 22-15-010 10/31/2023... -
Page 7: Heater Element Switch On/1
Adjust the sensor range using the VR for the sensor. • Gently turn clockwise (CW) to increase the sensing range (+) • Gently turn counter-clockwise (CCW) to decrease the sensing range (-) 110~120V VR for Sensor 220~240V VR for Sensor Bradley • P20-246 Rev. A: ECO 22-15-010 10/31/2023... -
Page 8: Cleaning And Maintenance
6. Replace the cover. Do not overtighten the screws. 7. Reconnect the electrical supply. Cleaning Stainless Steel Scan or click the QR code below to view the Stainless Steel Washroom Accessories document. Bradley • P20-246 Rev. A: ECO 22-15-010 10/31/2023... -
Page 9: Troubleshooting: Initial Installation Failures
Check the output nozzle for obstructions. If none are present, disconnect the power. Remove velocity the dryer cover. Remove any dust/lint build-up from the intake vent slots. If problem persists, replace the unit. Bradley • P20-246 Rev. A: ECO 22-15-010 10/31/2023...
