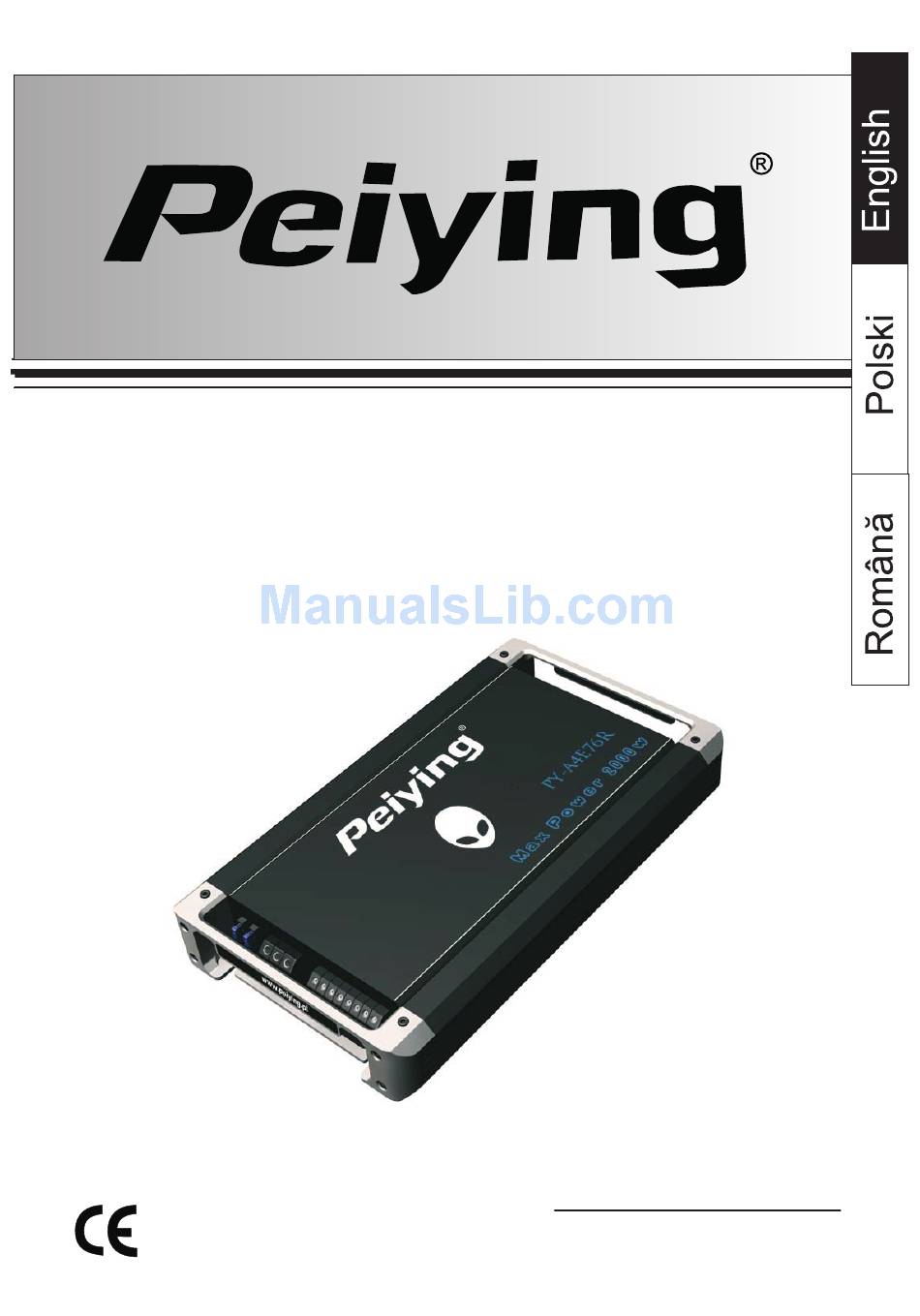

  • Page 1 OWNER’S MANUAL CAR POWER AMPLIFIER PY-A4E76R...
  • Page 2 LOW INPUT Left and right channels inputs of the amplifier system. Preamplifier outputs of a source (head unit, CD player, DAT, etc.) or of an external electronic crossover must be connected to them.

  • Page 3: Electrical Connection

    ELECTRICAL CONNECTION +12V Anode of power connection terminals. Connect to the anode of car battery. Terminal to be connect with Remote cable, which comes from the source and which controls the amplifier switching on. Applied voltage must be between 7 and 15VDC. Ground terminal.
  • Page 4 YSTEM IRING CHANNEL STEREO CONFIGURATION X-OVER CH1/CH2 [CH3/CH4] Low Input FLAT Gain Bass Boost 4CH 2CH Protect Hi Input Power Gain 0dB 18dB 50Hz 500Hz Min Max 50Hz 1KHz Remote CH3/CH4 FLAT Min Max 0dB 18dB 50Hz 500Hz 50Hz 1KHz X-OVER CH1/CH2 CH3/CH4...
  • Page 5 YSTEM IRING CHANNEL BRIDGED MODE CONFIGURATION Speaker Power Fuse +12V Bridged Bridged SPEAKER 4~ 8 Ohm Connect to chassis ground of vehicle* SPEAKER 2~ 4 Ohm YSTEM IRING CHANNEL BRIDGED MODE CONFIGURATION Speaker Power Fuse +12V Bridged Bridged Connect to chassis SPEAKER IMPEDANCE 2~ 4 Ohm ground of vehicle*...

  • Page 6: Troubleshooting

    ROUBLESHOOTING Before removing your amplifier ,refer to the list below and follow the suggested procedures. Always test the speakers and their wires first. AMPLIFIER WILL NOT POWER UP. Check for good ground connection. Check that remote DC terminal has at least 7V DC. Check that there is battery power on the + terminal.
  • Page 7 INSTRUKCJA OBS£UGI WZMACNIACZ SAMOCHODOWY PY-A4E76R...

  • Page 8: Opis Funkcji

    OPIS FUNKCJI X-OVER CH1/CH2 Low Input [CH3/CH4] FLAT Gain Bass Boost 4CH 2CH Protect Hi Input Power Gain 50Hz 500Hz Min Max 0dB 18dB 50Hz 1KHz Remote CH3/CH4 FLAT 0dB 18dB Min Max 50Hz 500Hz 50Hz 1KHz X-OVER CH1/CH2 CH3/CH4 Bass Boost Speaker Power...
  • Page 9 Napiêcie sygna³u steruj¹cego musi zawieraæ siê w przedziale od 7 do 15V DC Uziemienie. Pod³¹cz do metalowego elementu samochodu (jak najkrótszym kablem) CD PLAYER SPECYFIKACJA Model PY-A4E76R Moc RMS 13,8 VDC Moc dla 4 Ohms 120W x 4 Moc dla 2 Ohms...
  • Page 10 SCHEMAT POD£¥CZENIA 4 KANA£OWEGO STEREO Zdalne sterowanie wzmacniaczem (w³¹czanie/wy³¹czenie) Uziemienie. Pod³¹cz do elementu metalowej konstrukcji pojazdu* Impedancja g³oœników 2~ 4 Ohm...
  • Page 11 SCHEMAT POD£¥CZENIA 3 KANA£ÓWEGO W TRYBIE POMOSTOWYM Uziemienie.Pod³¹cz Impedancja g³oœników 4~ 8 Ohm do elementu metalowej konstrukcji pojazdu* Impedancja g³oœników 2~ 4 Ohm SCHEMAT POD£¥CZENIA 2 KANA£OWEGO W TRYBIE POMOSTOWYM Uziemienie. Pod³¹cz do elementu metalowej Impedancja g³oœników 4~ 8 Ohm konstrukcji pojazdu*...
  • Page 12 RZWI¥ZYWANIE PROBLEMÓW Przeczytaj przed pod³¹czeniem, postêpuj zgodnie z procedurami. Zawsze sprawdzaj najpierw g³oœniki i przewody Nie mo¿na w³¹czyæ wzmacniacza. SprawdŸ czy dobrze pod³¹czy³eœ uziemienie GND. SprawdŸ czy sygna³ steruj¹cy wzmacniaczem ma odpowiednie napiêcie w granicach 7-15 V DV. SprawdŸ czy dobrze pod³¹czy³eœ przewód zasilaj¹cy. SprawdŸ...
  • Page 13 PY-A4E76R...
  • Page 14 INSTRUCTIUNI PENTRU FUNCTII SI CONTROL X-OVER CH1/CH2 Low Input [CH3/CH4] FLAT Bass Boost 4CH 2CH Gain Protect Hi Input Power Gain 0dB 18dB 50Hz 500Hz Min Max 50Hz 1KHz Remote CH3/CH4 FLAT Min Max 0dB 18dB 50Hz 500Hz 50Hz 1KHz X-OVER CH1/CH2 CH3/CH4...
  • Page 15 CD PLAYER Conectati la alimentarea sursei de semnal Conectati la sasiul masinii SPECIFICATII Model PY-A4E76R Putere RMS 13,8 VDC Putere 4 Ohms 0W x4 Putere 2 Ohms 180W x 4 Putere in punte 4 Ohms 300W x2...
  • Page 16 SISTEMUL DE CUPLARE 4 CONFIGURATA CANALULUI STEREO conectati la cablul de remote conectati la caroseria masinii Impedanta difuzorului 2~ 4 Ohmi...
  • Page 17 SISTEMUL DE CUPLARE 3 CONFIGURATIA MODULUI POD - CANAL conectati la caroseria masinii difuzorului 4~ 8 Ohmi difuzorului 2~ 4 Ohmi SISTEMUL DE CUPLARE 2 CONFIGURATIA MODULUI POD - CANAL difuzorului 4~ 8 Ohmi conectati la caroseria masinii...
  • Page 18 DEPANARE In cazul aparitiei unei anomalii de functionare, consultati lista de mai jos si urmati procedurile sugerate. Testati intotdeauna difuzoarele si cablurile acestora. AMPLIFICATORUL NU PORNESTE Verificati pentru o buna conectare la masa. Verificati ca terminalul de alimentare +12 V DC sa aiba cel putin 7V DC. Verificati ca terminalul + al bateriei sa aiba suficienta tensiune.
  • Page 19 RECYCLING Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and othor European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life.
