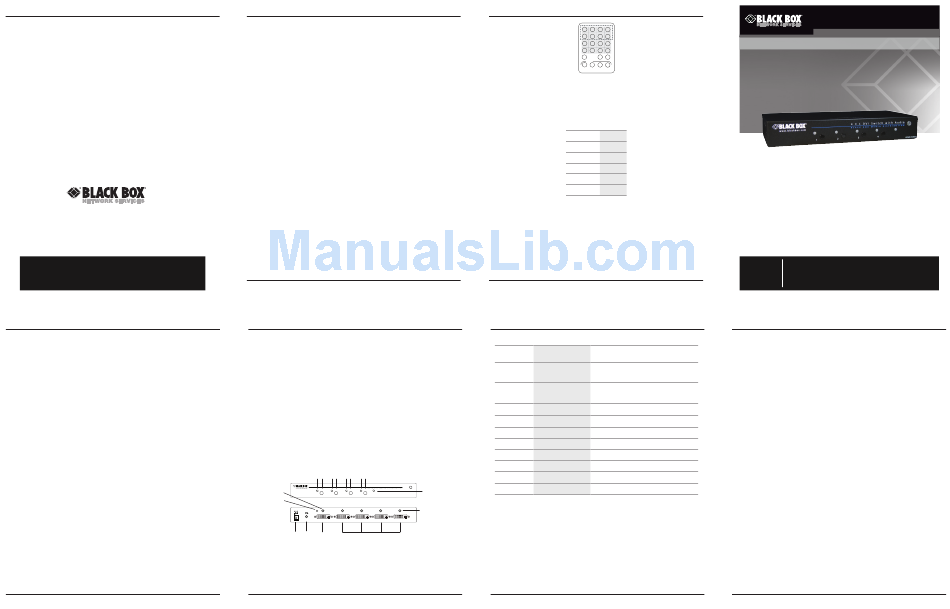

4 x 1 DVI and Audio Switches
© Copyright 2013. Black Box Corporation. All rights reserved. Black Box
and the Double Diamond
®
logo are registered trademarks of BB Technologies, Inc. Any third-party trademarks appearing in
this manual are acknowledged to be the property of their respective owners.
AVSW-DVI4X1, version 2
FREE! Live, 24/7 T
ech Support is just 30 seconds away.
724-746-5500 | blackbox.com
Chapter 1: Specifications/Chapter 2: Overview
1. Specifications
Enclosure — Metal
Maximum Video Resolution — Full HD 1080p (1920 x 1080), WUXGA (1920 x 1200)
Number of DVI Inputs — (4)
Remote Control Support — Yes
Serial Control Support —Yes
User Controls — (1) Function button, (4) port selection buttons
Connectors — Input: (4) DVI (digital only), (4) audio jacks;
Output: (1) DVI (digital only), (1) audio jack
Indicators — (5) LEDs: (1) dual-color for Power and Video,
(4) LEDs for video input
Power — Consumption: 4.5 W
Size — 1.3"H x 8.7"W x 3.9"D (3.4 x 22 x 10 cm)
2. Overview
2.1 Features
• Select (1) DVI + Audio from (4) DVI + Audio sources.
• Control via front-panel push buttons, IR remote control, or serial control.
• Function button adjusts the optimal video signal strength corresponding to the length
or quality of DVI cable.
• LED shows the active status of DVI + Audio sources.
• HDTV compatible.
• Protects content via HDCP.
• Supports up to Full HD 1080p/1920 x 1200 resolution.
• Compatible with most of the popular screen resolutions to XGA, SXGA, UXGA, WSXGA,
Full HD, WUXGA system.
724-746-5500 | blackbox.com
AVSW-DVI4X1
Chapter 4: Operation/Chapter 5: IR Remote Control
4. Operation
LED Indicator
The Power LED turns green when the video switch is powered on. When a video port
is selected, its corresponding Port LED turns yellow.
Push Button
Press the corresponding button to select a port.
Function button
The Function button adjust the optimal video strength corresponding to the length and
quality of DVI cable.
To adjust the video signal strength, follow these steps:
1. Press the Function button three times.
2. Press Push button #1 one or two times to adjust the selected port's input video strength.
One beep = Normal or two beeps = Enhance.
or
Press Push button #3 one or two times to adjust the selected port's output current.
One beep = Normal or two beeps = Enhance.
or
Press Push button #4 one, two, or three times to adjust the selected port's output emphasis.
One beep = no pre-emphasis, two beeps = low pre-emphasis, three beeps = medium pre-
emphasis, or four beeps = high pre-emphasis.
3. Once the setting is finished, press the Function button one time to exit the setting.
5. IR Remote Control
The remote control operates within a 1.5-ft. (5-m) range of the DVI switch. To select a source
device with a remote control, press the number button (1–4 or 1–8) to directly switch to the
corresponding port.
NOTES:
1. Remove the battery protector on the remote control before operation.
2. On the remote control, only buttons 1–4 are activated. The rest of the buttons are reserved
for other models.
724-746-5500 | blackbox.com
AVSW-DVI4X1
Chapter 2: Overview
2.2 What's Included
BLACK BOX
4 x 1 DVI and Audio Switch (AVSW-DVI4X1):
®
• Video switch
• (1) DB9 F to ear jack cable, 3.8-ft. (1.2-m)
• Rear bracket
• Screw kit
• Foot pad
• IR remote controller
• Power supply and power cord
• This user manual
Optional:
• Audio cable

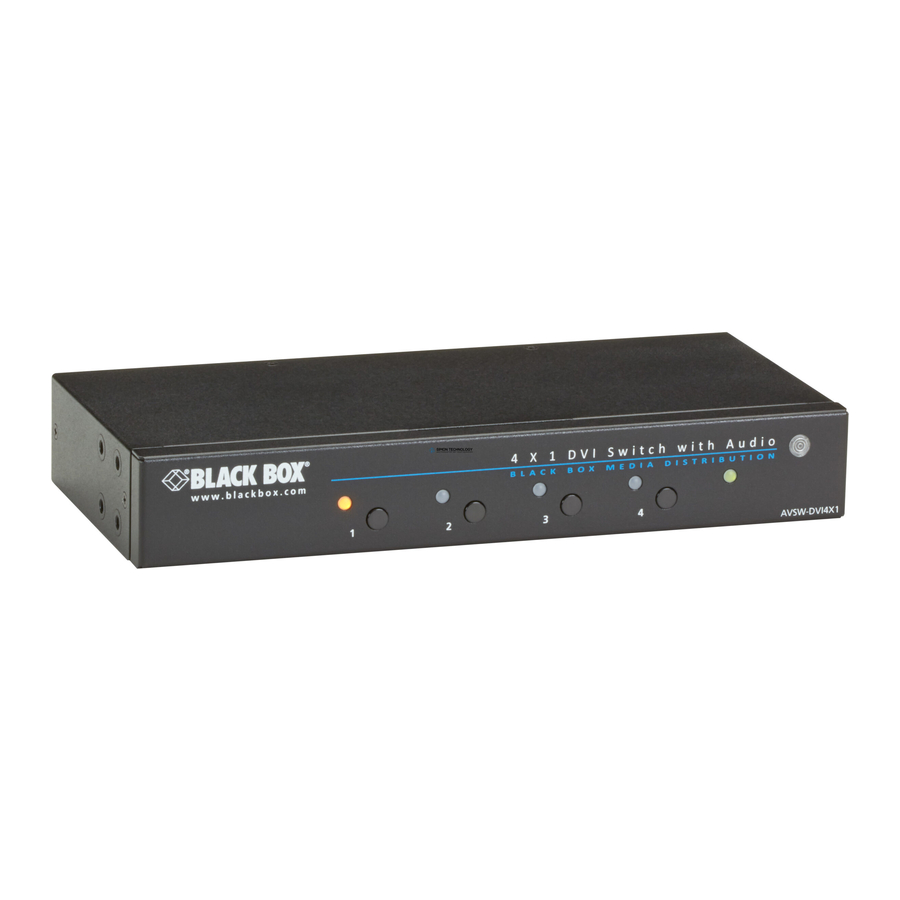

2.3 Hardware Description
Figure 2-1 shows the front and back panels of the AVSW-DVI4X1. Table 2-1 describes its
components.
1 3
1 3
1 3
1 3
4 X 1 D V I S w i t c h w i t h A u i d o
4
1
2
3
4
8
OUTPUT
4
3
10
9
6
7
Figure 2-1. 4X1 DVI and Audio switch front and back panels.
Page 1
724-746-5500 | blackbox.com
AVSW-DVI4X1
Chapter 5: IR Remote Control/Chapter 6: Serial Control
6. Serial Control
The DVI and audio switches' built in serial interface enables users to control the switch via a PC,
serial controller devices, or home theater system. The controller's serial port should be configured
as shown in Table 6-1.
Table 6-1. Serial parameters settings.
To select a source device via serial interface, select the number that corresponds to the port.
For example, send "1" to switch to Port 1.
Page 5
724-746-5500 | blackbox.com
AVSW-DVI4X1
Table 2-1. 4X1 DVI and Audio switch components.
Number in
Fig. 2-1
Component
1
(4) Input LED indicators
2
(1) Power LED indicator
3
(4) Push buttons
4
(1) Audio port (Output)
5
(4) Audio ports (Input)
6
(1) Video port (Output)
7
(4) Video ports (Input)
8
(1) Function button
9
(1) Serial port
10
Power supply
2
5
2
1
Page 2
724-746-5500 | blackbox.com
AVSW-DVI4X1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SHIFT
VIDEO
AUDIO
ON/OFF
ON/OFF
RESOURCES
13
14
15
16
Figure 5-1. Remote control.
Parameter
Setting
Baud Rate
9600
Data Bits
8
Parity
None
Stop Bits
1
Flow Control
None
Page 6
Chapter 2: Overview
3. Installation
• Before installation, power off all devices that will be connected to this system.
• Make sure that all devices you will connect are properly grounded.
Description
• Place cables away from fluorescent lights, air conditioners, and machines that are likely
On Yellow when port 1–4 is selected.
to generate electrical noise.
Off when port 1–4 is not selected.
NOTE: If no screen displays, follow these steps:
1. Make sure the device cables are correctly and firmly attached.
On Green when power to the unit is on.
2. Set your display device's input source as DVI.
Off when power to the unit is off.
3. Check the PC BIOS configuration for the video output settings.
Press buttons 1–4 to select a port.
4. Connect your computer to the display DIRECTLY to check if the video signal gets through.
Installation Steps
Connects to a speaker.
1. Use a video cable (DVI) to connect the display to the video output port on the back of the
Connect to audio sources 1–4.
switch. Plug a set of audio jacks from the speaker to the switch's speaker port.
2. Use a video cable (DVI) to connect the source device to the video input port on the switch.
Connects to a display.
Use an audio cable to connect the speaker port from the input side of the switch to the
Connect to video sources 1–4.
corresponding output port on the source device.
3. Plug the power supply into the switch and power on the switch.
Adjusts the video signal strength.
4. Turn on the display (monitor, projector, or TV) and then power on the source device(s).
Connects to a computer for serial control.
Applies power to the unit.
Page 3
AVSW-DVI4X1
AVSW-DVI4X1
4 x 1 DVI and Audio Switch
Send up to four source inputs
BLACK BOX
®
for screen output to one display.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
Customer
call 724-746-5500) FREE technical support 24 hours a day, 7 days a
Support
Information
week: Call 724-746-5500 or fax 724-746-0746 Mailing address:
Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
Chapter 3: Installation
Page 4
724-746-5500 | blackbox.com
