D-Link GLB-802C User Manual page 37

CHAPTER-3

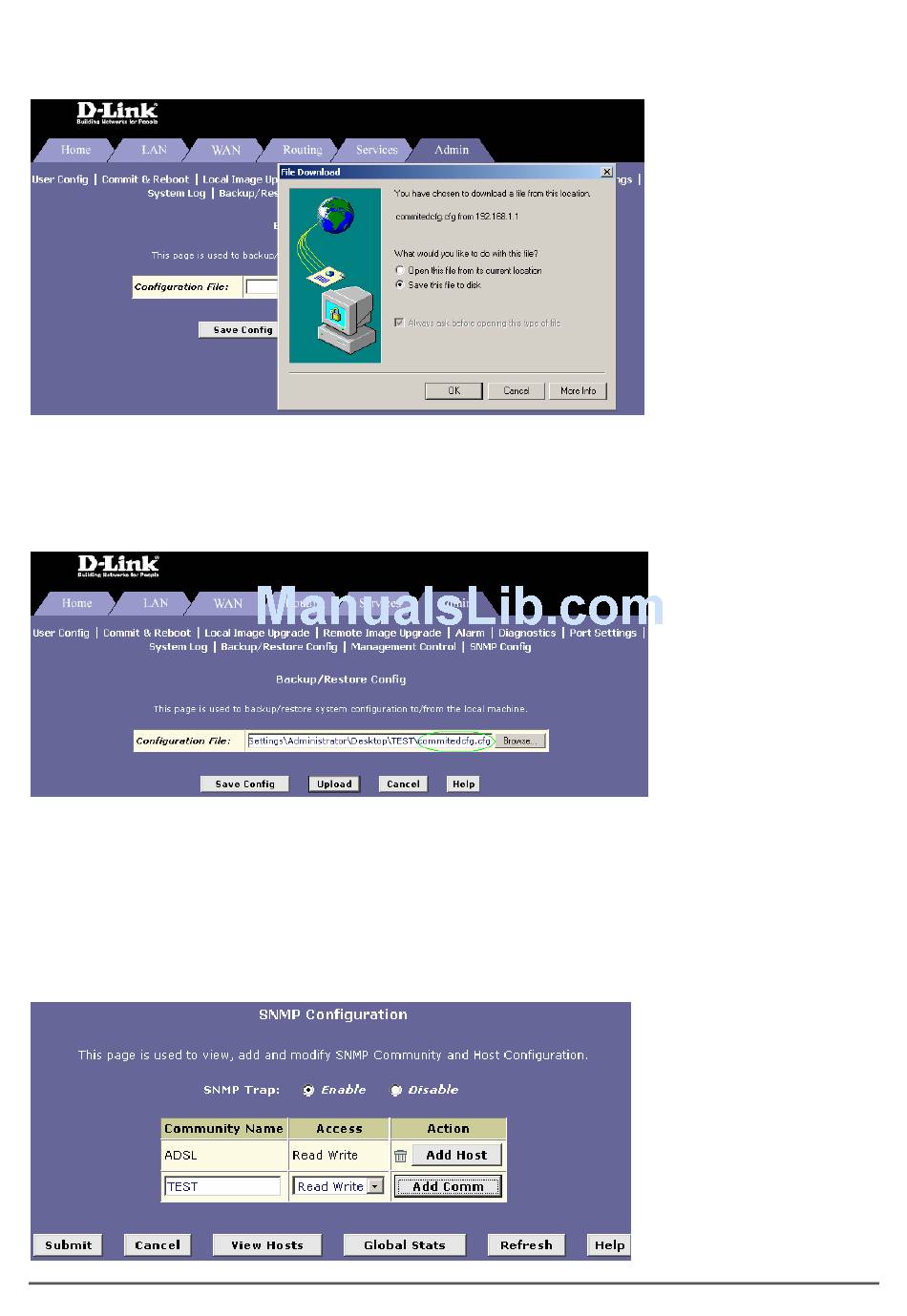

2. In the Admin tab, click Backup/Restore config.
3. To take a backup of the configuration, click Save config .A Windows dialog box will display to choose
where to save the file.
4. To restore a saved configuration, select the saved file and click Upload.
3.3.8.10 SNMP
To create Communities
1. On the SNMP configuration page, type a community name in the left column of the table.
2. From the Access column of the table, select the privileges (Read only or Read/Write) to assign to all
hosts that are part of this community.
4. Click "Add comm"
D-Link GLB-802C ADSL2+ Router User Manual
34
