CHAPTER-3

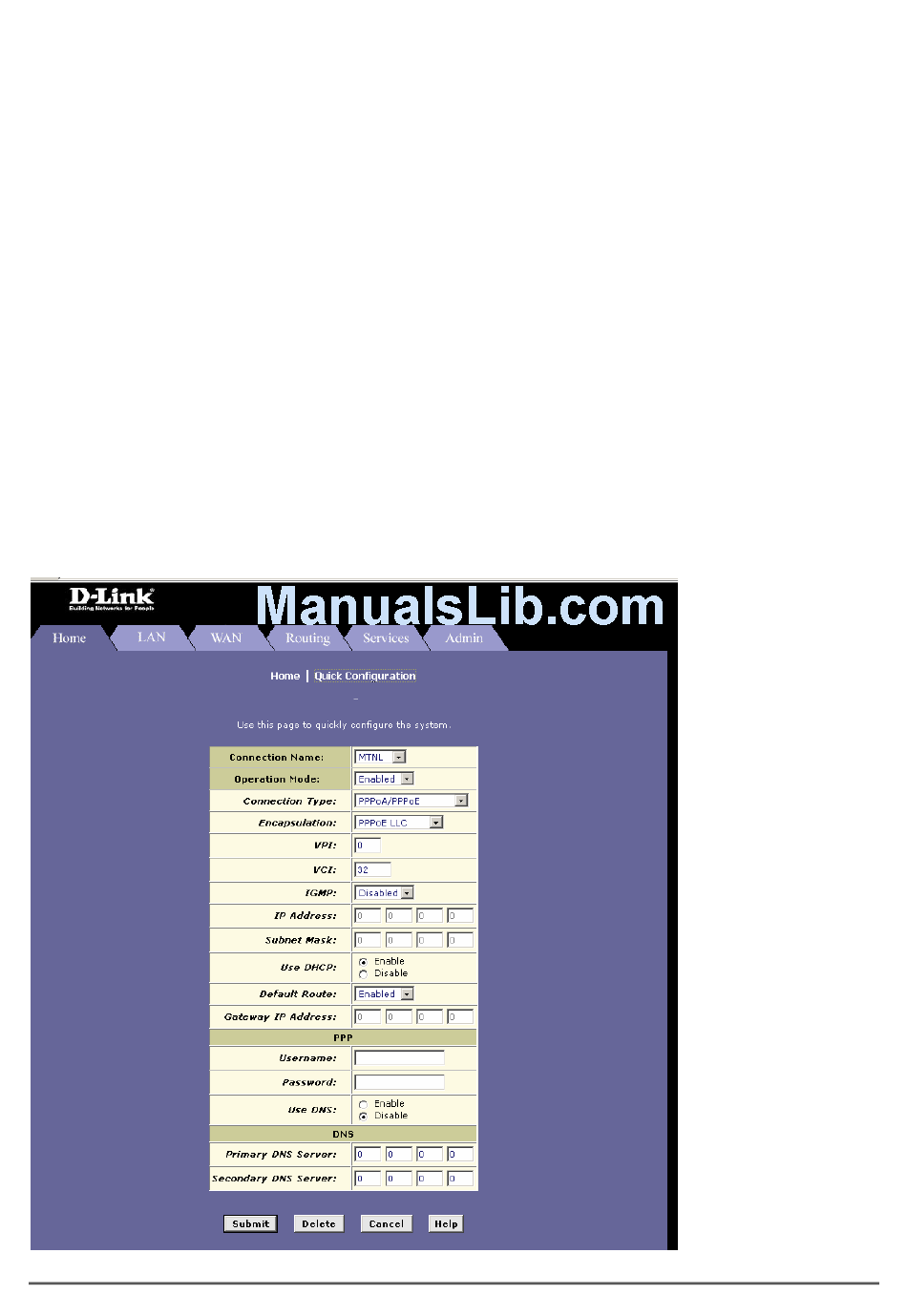

3.3.2.5. To set the router in Dynamic IP address (1483 Bridge) mode, go to Quick configuration,
• Select the appropriate Connection name
•
"Enabled" in Operation mode
• Connection type as "Dynamic IP address"
• "RFC1483 Bridge IP LLC (or) RFC1483 Bridge IP VC-Mux" as Encapsulation, (as provided by
ISP)
• Enter the VPI and VCI as provided by ISP,
• Enable the "Use DHCP" option
• Enable the "Default route" option.
• Enable the "Use DNS" option or enter the DNS servers provided by the ISP.
• And, click "Submit" to save the settings.
• Save the settings and reboot the router (Refer to 3.3.2.2)
• To check the WAN IP address obtained from ISP ,go to HOME tab >System View
D-Link GLB-802C ADSL2+ Router User Manual
14
