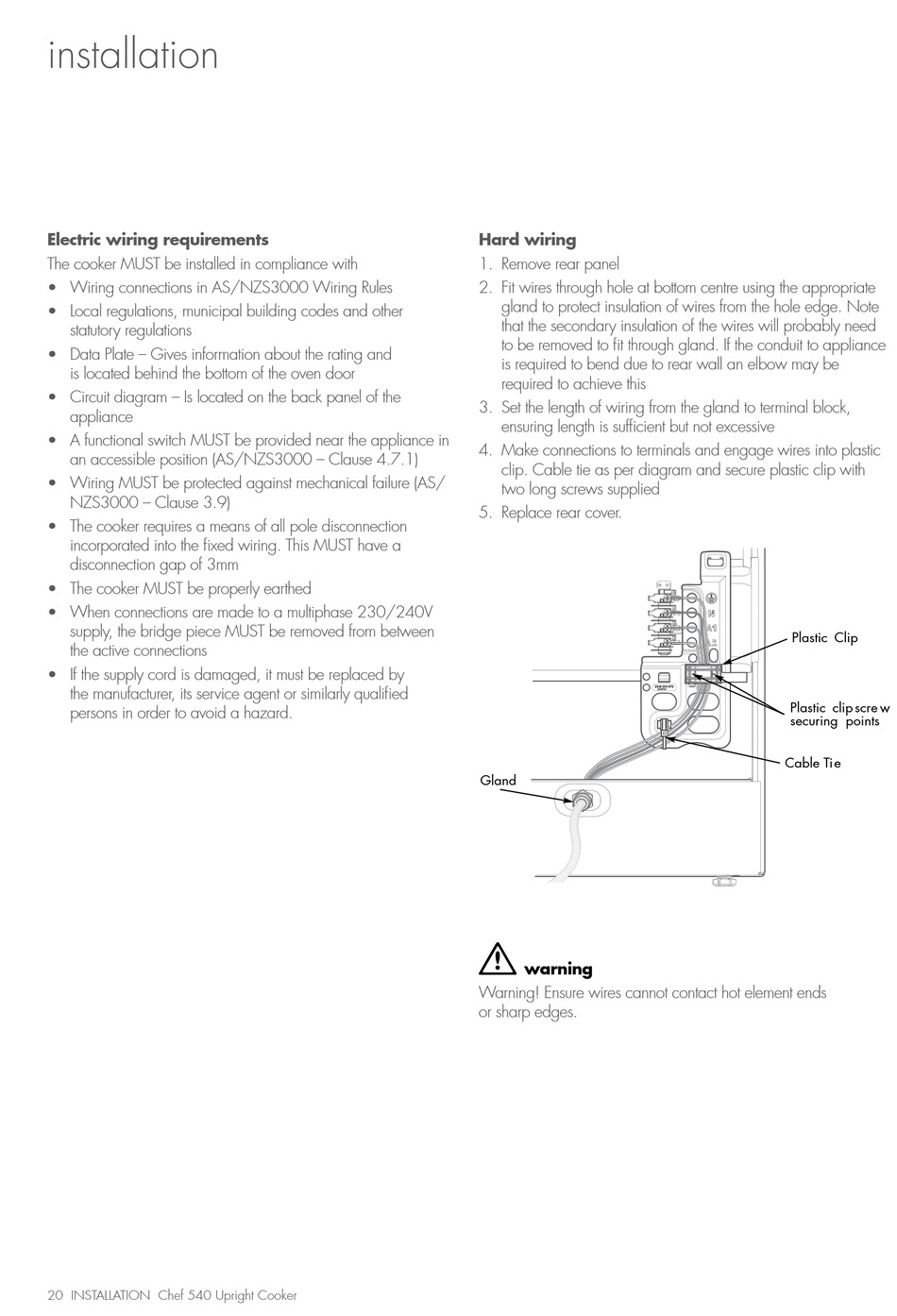

Chef cooking CFE532WA User Manual page 20

installation
electric wiring requirements
The cooker MUST be installed in compliance with
• Wiring connections in AS/NZS3000 Wiring Rules
• L ocal regulations, municipal building codes and other
statutory regulations
• D ata Plate – Gives information about the rating and
is located behind the bottom of the oven door
• C ircuit diagram – Is located on the back panel of the
appliance
• A functional switch MUST be provided near the appliance in
an accessible position (AS/NZS3000 – Clause 4.7.1)
• W iring MUST be protected against mechanical failure (AS/
NZS3000 – Clause 3.9)
• T he cooker requires a means of all pole disconnection
incorporated into the fixed wiring. This MUST have a
disconnection gap of 3mm
• T he cooker MUST be properly earthed
• W hen connections are made to a multiphase 230/240V
supply, the bridge piece MUST be removed from between
the active connections
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
20 INSTALLATION Chef 540 Upright Cooker
Hard wiring
1. Remove rear panel
2. Fit wires through hole at bottom centre using the appropriate
gland to protect insulation of wires from the hole edge. Note
that the secondary insulation of the wires will probably need
to be removed to fit through gland. If the conduit to appliance
is required to bend due to rear wall an elbow may be
required to achieve this
3. Set the length of wiring from the gland to terminal block,
ensuring length is sufficient but not excessive
4. Make connections to terminals and engage wires into plastic
clip. Cable tie as per diagram and secure plastic clip with
two long screws supplied
5. Replace rear cover.
Gland
WARNING
warning
Warning! Ensure wires cannot contact hot element ends
or sharp edges.
Plastic Clip
Plastic clip scre w
securing points
Cable Ti e
