Connections

Important Note
: Make sure the power is turned off to the CopyWriter Live system when
connecting or disconnecting any cables.

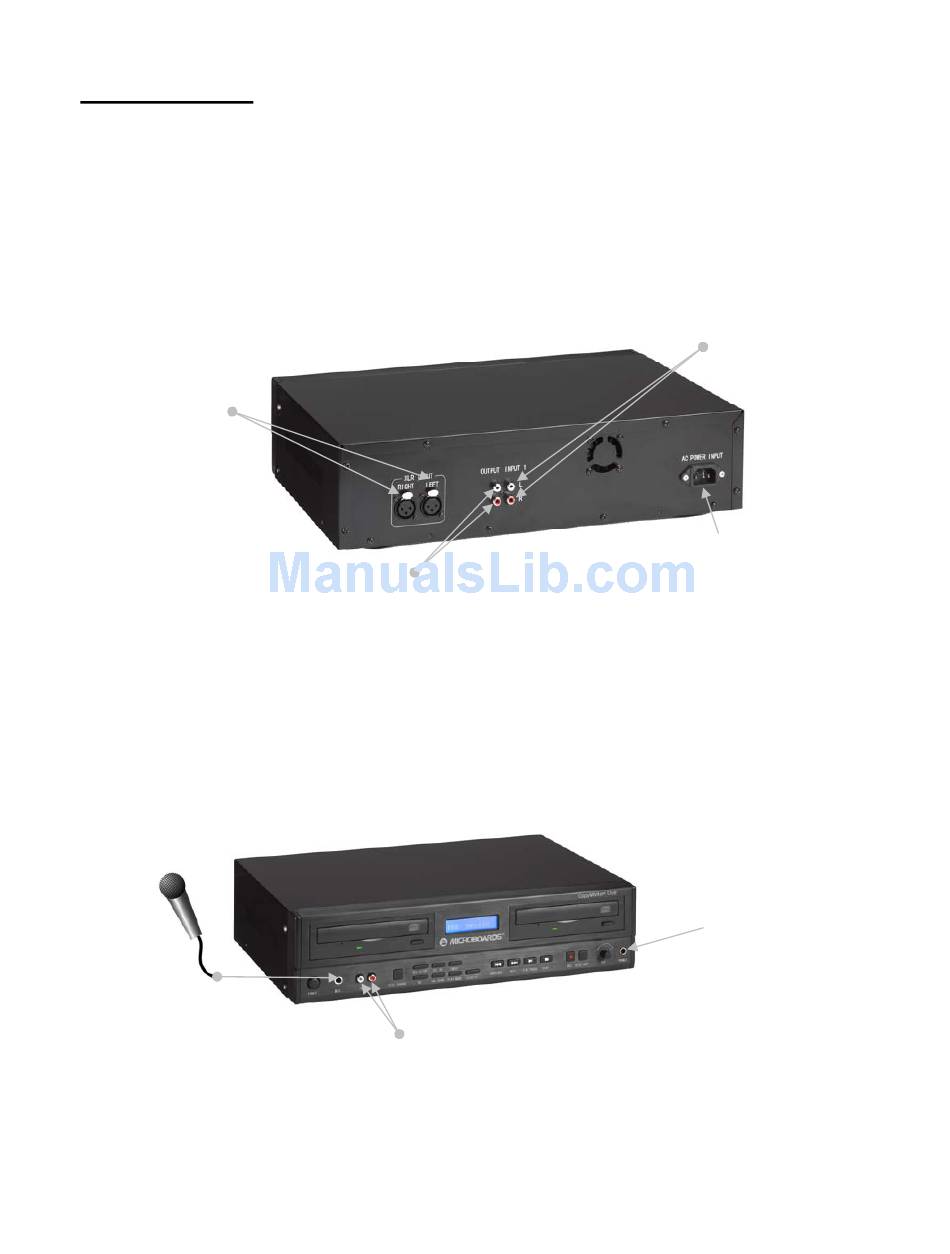

Back Panel: XLR, RCA Output, RCA Input 1, and Power

Input connections can be made to the XLR connection on the back, or to the RCA Input 1
connection. The power connection is also on the back.
Audio monitoring can be done either from the Headphone jack on the front of the CopyWriter Live,
or from the Output RCA jacks on the back.
XLR Connection
to External
Source
Left/Right RCA Output
to Audio Receiver

Front Panel: MIC, Input 2, and Headphones

Plug a microphone into the 1 ¼ inch input port on the front of the CopyWriter Live. Left/Right
RCA Input 2 is available as an input source on the front panel.
The Headphone jack can be used to monitor the audio either during recording or playback. It is
recommended that you set the headphone volume at a comfortable level before changing the input
volumes during recording.
Microboards CopyWriter Live
Left/Right RCA Input 2
7
RCA Input 1 to Tape
or CD Player
(Left & Right)
Power Connection, 100-
240V AC (Auto Detect)
Headphone
Jack
