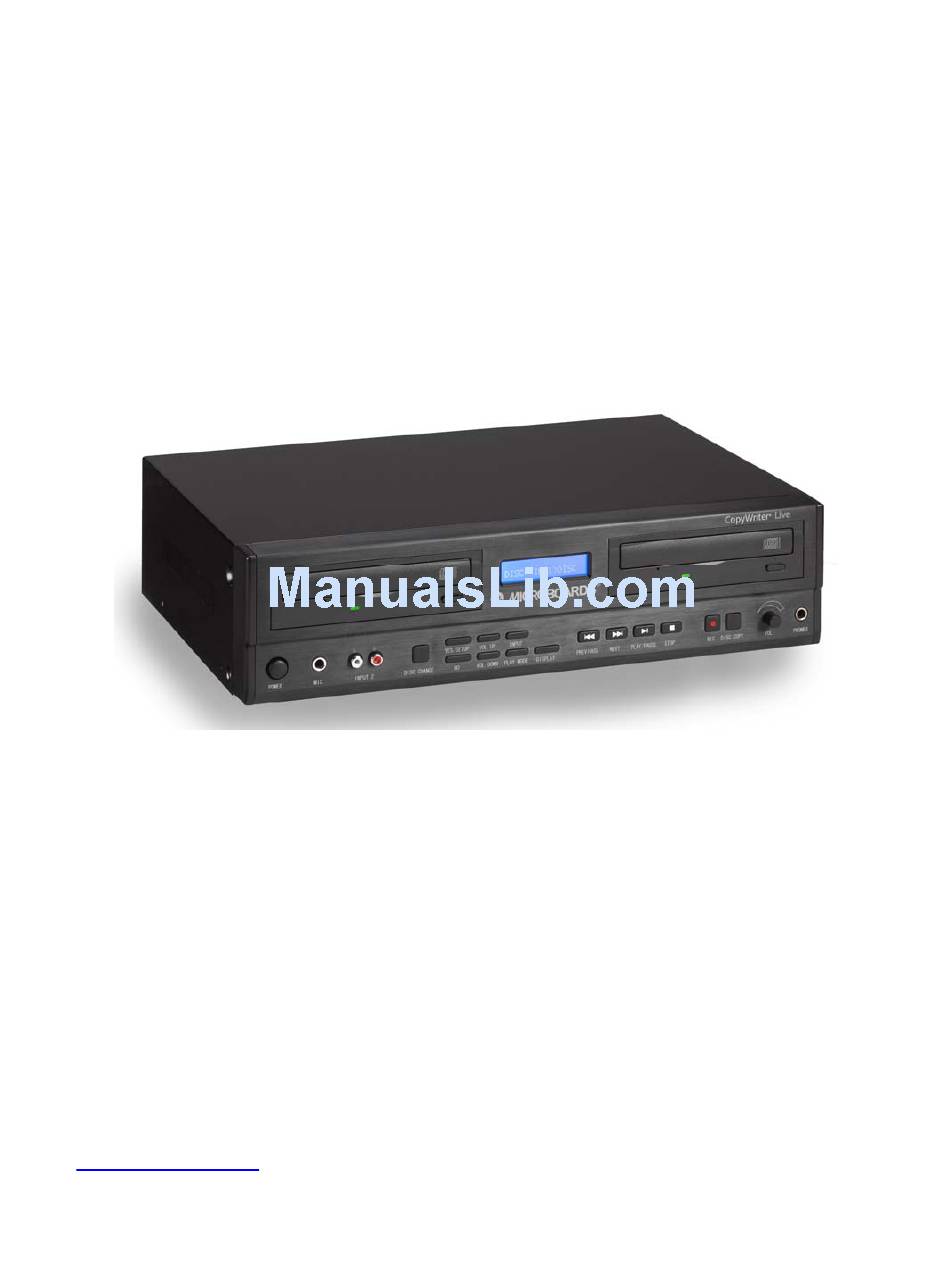

- Page 1 ® CopyWriter Live CWL-6200 Audio Disc Recorder Instruction Manual Microboards Technology LLC 8150 Mallory Court Chanhassen, MN 55317 Version 2.3 www.microboards.com...
- Page 2 Microboards CopyWriter Live...
-
Page 3: Table Of Contents
Microboards CopyWriter Live Table of Contents Introduction........................5 What’s Included:....................... 5 Controls..........................6 Connections ........................7 Back Panel: XLR, RCA Output, RCA Input 1, and Power..........7 Front Panel: MIC, Input 2, and Headphones..............7 Rack Mount Installation....................8 System Operation......................8 Creating a Disc ........................ -
Page 4: Important Safety Instructions
Microboards CopyWriter Live Important Safety Instructions • Read the User’s Manual completely • Observe all warnings • Do not connect or disconnect the power cord when your hands are wet • Keep unit and power cord aware from any heat source, such as radiators, stoves, or heat registers. -
Page 5: Introduction
• CopyWriter Live system • AC Power Cord • RCA cables • Users Manual • CD-R media • Rack Mount brackets and screws If any of these items are missing, please contact Microboards Technical Support at 952- 556-1639 or by email at support@microboards.com. -
Page 6: Controls
Microboards CopyWriter Live Controls 1) Left CD Recorder Drive 12) Play Mode Button 2) Eject for Left CD Recorder Drive 13) Display Screen 3) Right CD Recorder Drive 14) Display Button 4) Eject for Right CD Recorder drive 15) Previous Button... -
Page 7: Connections
Microboards CopyWriter Live Connections Important Note : Make sure the power is turned off to the CopyWriter Live system when connecting or disconnecting any cables. Back Panel: XLR, RCA Output, RCA Input 1, and Power Input connections can be made to the XLR connection on the back, or to the RCA Input 1 connection. -
Page 8: Rack Mount Installation
Microboards CopyWriter Live Rack Mount Installation To mount the rack mount brackets on your CopyWriter Live system, please follow these steps: 1) If you system is turned on, turn off power and unplug the power cord from the back of the system. -
Page 9: Playing A Disc
Microboards CopyWriter Live If your audio source volume is too low, the meter may show little or no activity. In that case, you should increase your input volume by pressing the Vol Up button. If your audio source volume is too high, the meter will indicate this by displaying an asterisk ( * ) as the right bar symbol, and the input volume should be reduced by pressing the Vol Down button. -
Page 10: Copying A Disc
Microboards CopyWriter Live Copying a Disc To copy a disc, all you need to do is place a blank disc in one drive and the master disc in the other drive. It does not matter which drive contains the master and which drive contains the blank. Press the Disc Copy button on the CopyWriter Live front panel and the copy process will begin. - Page 11 Microboards CopyWriter Live In order for a recorded disc to play back correctly in other players, the disc must be closed. If you press Stop to stop your recoding, then the disc is closed and can be played on other playback devices.
-
Page 12: Track Extraction
Microboards CopyWriter Live Track Extraction This menu option allows you to extract tracks from one master and burn them to a blank disc. To use this feature, follow the directions below: 1. Press Yes/Setup at the Track Extraction menu selection in the Setup menu to begin. -
Page 13: Auto Track Index
Microboards CopyWriter Live In the Setup menu, press the No button until System Update is selected. Press the Yes/Setup button and the left drive will eject, prompting you to place the firmware disc in the drive with the message Insert Program Disc. Place the disc in the drive and close the tray The new firmware will be read by the system and then copied into the CopyWriter Live. -
Page 14: Troubleshooting
Microboards CopyWriter Live Troubleshooting Playback is not appearing on the screen. Confirm the RCA connections are correct. No Audio playback Confirm the RCA connections are correct. Check the playback volume and make sure it is not too low. Disc will not play back on other player Confirm the recorded disc is Closed. -
Page 15: Contact Information
Microboards CopyWriter Live Contact Information For technical questions or support issues, contact Microboards Technology technical support: United States Europe Japan PH: 952-556-1639 PH: +44 (0) 845 230 7800 PH: 03-3561-2266 FAX: 952-556-1628 www.microboards.co.uk www.microboards.co.jp support@microboards.com www.microboards.com Technical Specifications Advanced Features •...
