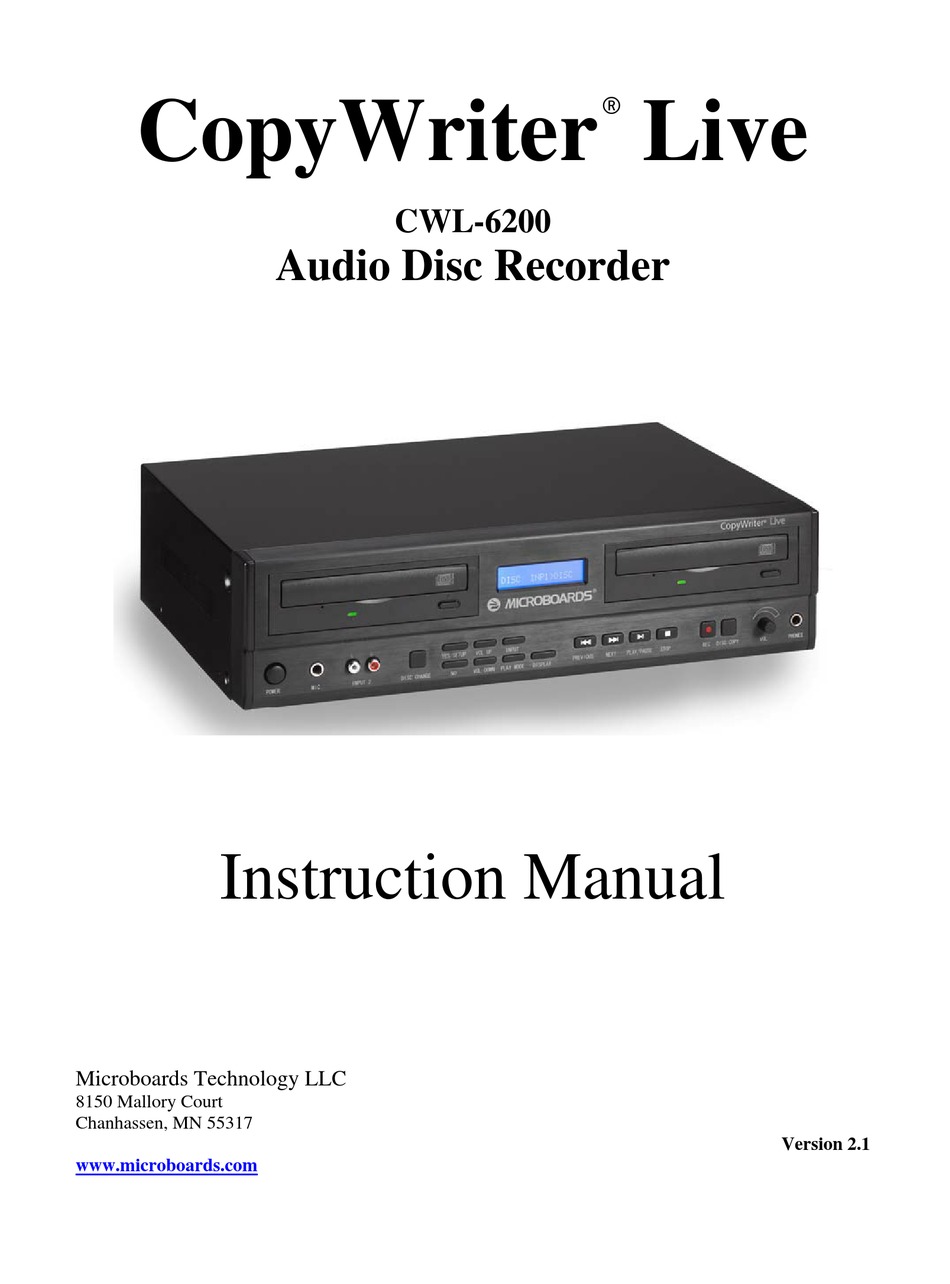

- Page 1 CopyWriter Live CWL-6200 Audio Disc Recorder Instruction Manual Microboards Technology LLC 8150 Mallory Court Chanhassen, MN 55317 Version 2.1 www.microboards.com...
- Page 2 Microboards CopyWriter Live...
-
Page 3: Table Of Contents
Microboards CopyWriter Live Table of Contents Introduction... 5 What’s Included:... 5 Controls... 6 Connections ... 7 Back Panel: XLR, RCA Output, RCA Input 1, and Power... 7 Front Panel: MIC, Input 2, and Headphones... 7 Rack Mount Installation... 8 System Operation... 8 Creating a Disc ... -
Page 4: Important Safety Instructions
Important Safety Instructions • Read the User’s Manual completely • Observe all warnings • Do not connect or disconnect the power cord when your hands are wet • Keep unit and power cord aware from any heat source, such as radiators, stoves, or heat registers. -
Page 5: Introduction
Microboards CopyWriter Live Introduction The CopyWriter Live combines the flexibility of cassette tapes with the quality and longevity of CDs, in one low-cost, easy to use unit. You can record from practically any audio source, including live feed from a microphone, a cassette deck, a mixer and many others. -
Page 6: Controls
Microboards CopyWriter Live Controls 1) Left CD Recorder Drive 2) Eject for Left CD Recorder Drive 3) Right CD Recorder Drive 4) Eject for Right CD Recorder drive 5) Power Button 6) Disc Change Button 7) Yes/Setup Button 8) No Button 9) Volume Up 10) Volume Down 11) Input Button... -
Page 7: Connections
Microboards CopyWriter Live Connections Important Note : Make sure the power is turned off to the CopyWriter Live system when connecting or disconnecting any cables. Back Panel: XLR, RCA Output, RCA Input 1, and Power Input connections can be made to the XLR connection on the back, or to the RCA Input 1 connection. -
Page 8: Rack Mount Installation
Microboards CopyWriter Live Rack Mount Installation To mount the rack mount brackets on your CopyWriter Live system, please follow these steps: 1) If you system is turned on, turn off power and unplug the power cord from the back of the system. 2) Turn the system over and remove the four feet from the bottom of the CopyWriter Live. -
Page 9: Recording Procedure For Audio Cd
Microboards CopyWriter Live Recording Procedure for Audio CD 1. If you are creating an Audio CD with multiple tracks, set your Gap value to determine how long the silence will be between tracks. See page 12 for a description of how to set the Gap value. 2. -
Page 10: Copying A Disc
Microboards CopyWriter Live Copying a Disc To copy a disc, all you need to do is place a blank disc in one drive and the master disc in the other drive. It does not matter which drive contains the master and which drive contains the blank. -
Page 11: Cd Tools
CD Tools The CD Tools menu item allows you to close an open Audio CD. It also allows you to erase a CD-RW disc. Press Yes/Setup when you have selected the CD Tools entry on the Setup Menu. There are 3 options under the CD Tools menu: Close Disc In order for a recorded disc to play back correctly in other players, the disc must be closed. -
Page 12: Beep
6. After the selected tracks have been burned, the display will read Next Master? Press Yes/Setup, and the master drive will be ejected to allow you to insert a new master. Close the tray, and repeat steps 3-5 for the new master. 7. -
Page 13: Auto Track Index
Microboards CopyWriter Live Auto Track Index This feature allows you to have the Copywriter Live automatically create tracks based on the time period you select. Press Yes/Setup button when the Setup menu display reads AUTO Trk INDEX. The first selection is No, which will not create tracks automatically. The choices which will allow auto tracking are 3 minutes, 5 minutes, 7 minutes, and 10 minutes. -
Page 14: Contact Information
Contact Information For technical questions or support issues, please contact Microboards Technology technical support at PH: 952-556-1639, FAX: 952-556-1628, by email at support@microboards.com or on the web at http://www.microboards.com. Technical Specifications Advanced Features • Standalone CD Duplication with automatic format detection •...
