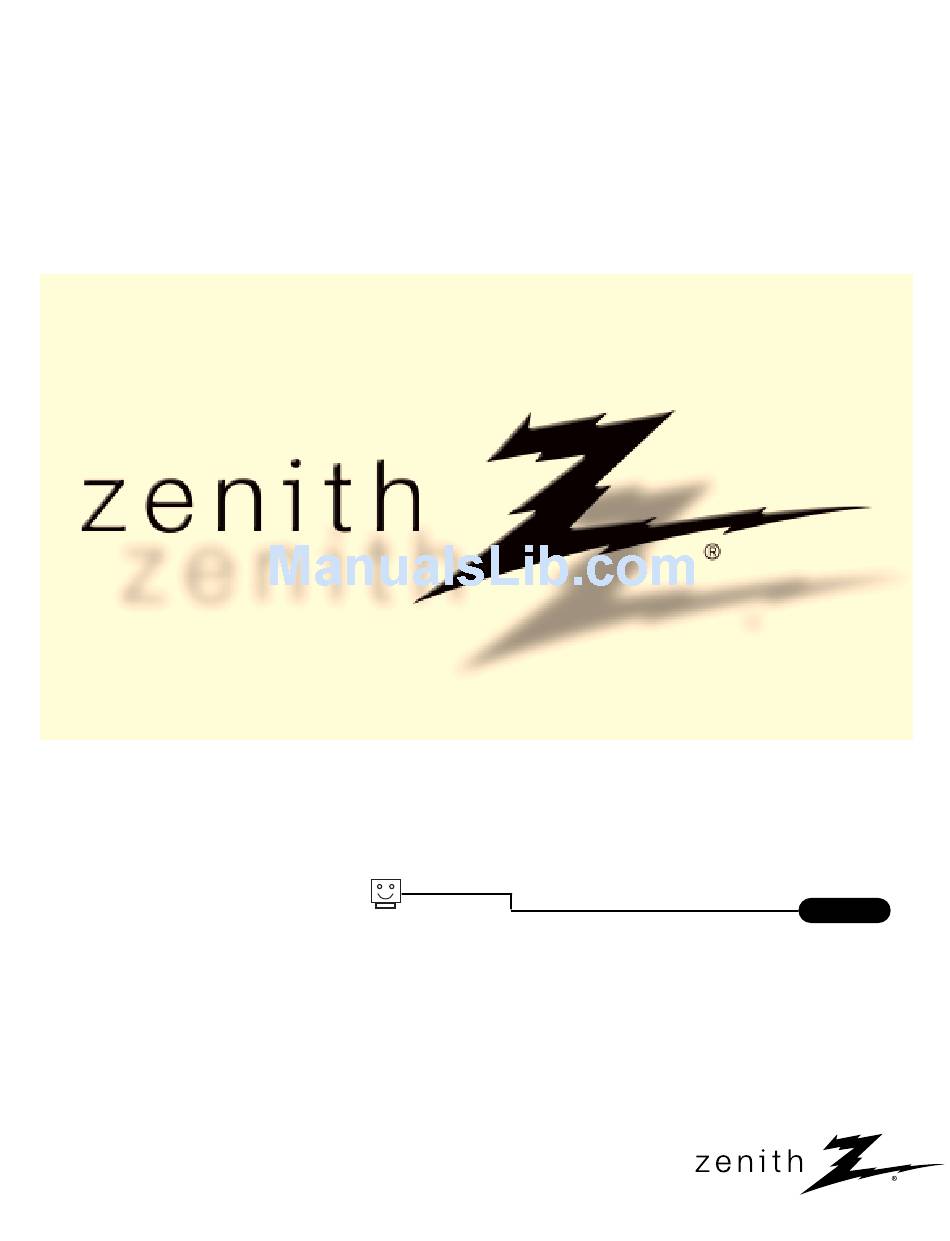

- Page 1 Installation and Setup Guide | Warranty Model Number | L10V34H | L10V34S | LCD TV/Monitors t a b l e o f c o n t e n t s p a g e © Copyright 2003, Zenith Electronics Corporation...
- Page 2 Consult the dealer or an experienced radio/TV technician for help. • CAUTION: Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product. COMPLIANCE: The responsible party for this product’s compliance is:...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Important safeguards for you and your new product This product has been manufactured and tested with safety in mind. However, improper use can result in potential electri- cal shock or fire hazards. To avoid defeating the safeguards that have been built into the new product, please read and observe the following safety points when installing and using the new product, and save them for future reference. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS (Continued from previous page) short-out parts that could result in a fire or electric shock. 14. Outdoor Antenna Grounding Never spill liquid of any kind on the product. If an outside antenna or cable system is connected to the 19. -
Page 5: Table Of Contents
Shown herein is an optional user’s remote control available for the L10V34S model only. The remote control is NOT included with the LCD TV/Monitor. However, the user’s remote can be purchased separately, see your Zenith dealer. Instructions for operating the remote can be found on page 47. Photocopy Guest operation pages as needed. -
Page 6: Table Of Contents
LCD-TV, TV stand, and if used, ment. optional AC to DC Power Converter. To copy the TV’s setup, the installer will need a clone programmer. Is there a Zenith • Determine mounting and installation LT2000 Clone Programmer available? requirements. If used, AC Power source... -
Page 7: Installation/Connections Overview
Installation/Connections Overview DC POWER INPUT (Optional AC - DC converter is available.) See page 14. To hook up source equipment, see below and also refer to the Table of Contents on page 5; shows pages to go to for equipment hookup options. MASTER POWER SWITCH ‘I’... -
Page 8: Vesa Standard Tv Mounts
VESA Standard TV Mounts VESA Standard 75mm TV Mounts and Stands Following are shown some examples of VESA standard 75 mm mounts. Since there are numerous types of stands and mounts available, only a few are shown here. Refer to the instructions provided with the TV stand that will be used to mount the TV. - Page 9 Install TV on VESA Standard TV Mount Installing the TV on VESA Standard 75mm TV Mounts and Stands Follow the instructions provided with the mounting bracket that will be used for the installation. Since there are numerous types of TV stands and brackets which can be used, these instructions are included and should be thought of only as general guidelines for installing the TV on a mount.
-
Page 10: Antenna
19 to run Auto Program. If the antenna is a 75 ohm RF cable, then no adapters are required. A 300 to 75 ohm adapter is not included with the Zenith LCD TV/Monitor. Antenna DC IN L - AUDIO - R... -
Page 11: Cable Service
Cable Service Hookup Connect cable service to the Cable TV Wall Jack LCD TV/Monitor Locate the Antenna/Cable jack on the DC IN L - AUDIO - R VIDEO IN back of the TV. Connect the cable wire to the Connections Panel Antenna/Cable jack according to one of the diagrams to the right. - Page 12 Antenna & VCR Hookup Connect antenna and a VCR to the LCD-TV Antenna Locate the Antenna/Cable jack on Round the back of the VCR. Flat wire (300 ohm) Connect the antenna wire that runs VCR Back from the wall jack to the VCR. Connect other wires according to the diagram to the right.
- Page 13 Cable Service w/VCR Hookup Connect cable service and a VCR to the LCD TV/Monitor Cable TV Cable TV Wall Jack Wall Jack Locate the Antenna/Cable jack on the back of the VCR. Connect the cable service wire to the VCR. Connect other wires according to the dia- gram to the right.
-
Page 14: Dc Power Hookup/Master Power Switch
DC Power Hookup Connect the TV to DC power directly or use the optional AC/DC power converter Power 12 Volt DC Power Hookup Supply The LCD-TV is designed to operate on 12V DC Optional power. AC to DC Power Locate the DC input on the back of the Converter LCD TV/Monitor. -
Page 15: Front Panel Controls
Front Panel Controls Operation Using the front control panel to operate the LCD TV/Monitor Note: The TV master switch must be set to ‘ I’ for the TV to be in standby mode. TV Operation Press the POWER button to turn the LCD TV/Monitor on from standby mode. -
Page 16: On-Screen Menus Overview
On-Screen Menus Overview Descriptions of the menus and on-screen displays available to the installer Menu Name Page Description ON-SCREEN MENUS SETUP MENU Adjusts the basic operational features of the TV Auto Program Automatically finds and stores active channels to scroll through using Channel Up/Down. Add/Del/Blnk Manually picks and chooses which active channels will appear when using Channel Up/Down Channel Labels... - Page 17 Other Menus & On-Screen Displays Press the remote keys indicated below to access these menus and displays ALARM MENU TIME NOW 3:11 PM TIMER 6:10 AM TIMER VOLUME• PRESS DIGITS TO SET TIME TIMER TO SELECT AM/PM Volume Display Alarm Menu Sleep Timer Menu Press VOLUME.
-
Page 18: Installer Remote Key Functions
Installer Remote Key Functions A quick list of the keys on the optional LP702 installer’s remote and what they do FLASHBK (FLASHBACK) CC (CLOSED CAPTIONING) Direct access to closed captions. Returns to the last channel viewed. Press ENTER to exit. POWER MUTE Turns TV On or Off... -
Page 19: Auto Program
Auto Program (Channel Search) AUTO PROGRAM TO PROGRAM Use Auto Program to specify Antenna or cable service ADD/DEL/BLNK incoming signal source and automatically store all of the CH. LABELS CLOCK SET channels that are found by channel search TIMER CAPTIONS LANGUAGE With the optional Installer remote control in hand, press the POWER key to turn the TV on. -
Page 20: Add/Del/Blank
Channel Add/Del/Blank Menu Fine-tune the user’s channel selection list CH 44 ADDED TIMER Press the MENU key repeatedly on the Installer’s remote until the Setup menu appears. Press SELECT repeatedly to highlight the Add/Del/Blnk option. Using either the NUMBER keypad and ENTER or the Channel Up/Down arrow on the remote, select a channel. -
Page 21: Channel Labels
Setting Up Channel Labels SETUP MENU AUTO PROGRAM Overview ADD/DEL/BLNK CH. LABELS CH 32 ABC Channel Labels help the user identify the channel or network being viewed. CLOCK SET In the Setup menu with the CH LABELS option highlighted, use the ADJ TIMER CAPTIONS Left/Right arrow to scroll through the available channel labels, such as,... -
Page 22: Clock Set
Setting the Clock CLOCK MENU SETUP MENU AUTO PROGRAM ADD/DEL/BLNK AUTO CLOCK SET CH. LABELS TIME ZONE DAY. SAVING CLOCK SET TO SET CLOCK TIMER AUTO CAPTIONS EASTERN LANGUAGE CENTRAL MOUNTAIN AUTO USE SELECT TO CHOOSE PACIFIC USE ADJ TO CHANGE CLOCK MENU SETUP MENU AUTO PROGRAM... -
Page 23: Timer (On/Off Timers)
Timer SETUP MENU TIMER Set up On/Off Timers AUTO PROGRAM ON TIME 9:00 AM ADD/DEL/BLNK Note: On/Off Timers oper- CH. LABELS OFF TIME 7:00 PM ate independently of each CLOCK SET ON/OFF TIMER TIMER TO SET TIMER other. CAPTIONS LANGUAGE On the optional Installer’s remote, press MENU repeatedly until the Setup menu appears. - Page 24 Captions (Caption/Text) Set up Closed Caption/Text options for the user SETUP MENU CAPTIONS SETUP AUTO PROGRAM QUICK/MUTE OPER. MODE ADD/DEL/BLNK SEL. TYPE CH. LABELS CAPTION CLOCK SET ON MUTE CAPTION 1 TIMER CAPTION LOCK CAPTION 2 TO SET CAPTIONS CAPTIONS ON, OFF CAPTION 3 PRESS SELECT TO CHOOSE...
-
Page 25: Language
Language SETUP MENU AUTO PROGRAM Choose the language for the on-screen menus ADD/DEL/BLNK CH. LABELS CLOCK SET TIMER CAPTIONS LANGUAGE ENGLISH Press the MENU key repeatedly on the installer’s remote control until the Setup menu appears. Use SELECT on the remote control to highlight the Language option on the menu. -
Page 26: Audio Menu
Audio Menu AUDIO MENU BASS Adjust the audio options for the end user TREBLE BALANCE AUDIO MODE STEREO FRONT SURR SOUNDRITE AUDIO PREF CUSTOM Press MENU repeatedly on the installer’s remote control until the Audio menu appears. Using SELECT on the remote control, highlight the setting you want to change. -
Page 27: Video Menu
Video Menu VIDEO MENU CONTRAST Use the Video menu to customize the picture appearance BRIGHTNESS COLOR TINT SHARPNESS PICTURE PREF PRESET Press MENU repeatedly until the Video menu appears. Your options are: • Contrast: Adjusts the level of difference between white and black in the TV picture. -
Page 28: Installer Parental Control Menu
Installer Parental Control Menu If used, this optional feature can “block” undesirable programming from appearing on the TV Parental Control offers the user a wide variety of options and settings that restrict or “block” the programming that can appear on the TV. Parental control allows the user the capability of defining which program rating they consider accept- able, to the younger or more sensitive viewer. - Page 29 Installer Parental Control Menu After you have read the preceding page, follow instructions below to set up and activate Parental Control SETUP MENU AGE BLOCK AUDIO MENU GENERAL UNBLOCKED VIDEO MENU CHILDREN PRESS CC TO RETURN PARENTAL CONTROL CONTENT BLOCK AUX SOURCES MPAA RATING DIALOG...
- Page 30 Installer Parental Control Menu Unblocked Unblocked Blocked TV-G and Above TV-PG and Above TV-14 and Above Unblocked TV-MA G and Above TO BLOCK PG and Above PG-13 and Above Unblocked R and Above TV-Y and Above NC-17 and Above TV-Y7 General Children Dialog...
-
Page 31: Managing The Channel Banks
The TV has four channel banks, where the administrator or installer can store groups of TV channels Note: Channel banks set up requires an installer’s remote with “Source” or “Bank” keys like the optional Zenith MBR3447, or a similar remote. PLANNING THE CHANNEL BANKS ADDING / DELETING CHANNELS Generally, TV channels are grouped into “program pack-... - Page 32 Managing the Channel Banks Examples of typical channel banks charts filled in Figure 1. Typical channel banks after running Auto Program B Purpose Channel Number 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 A = Active - - Channel was found during AUTO PROGRAM Figure 2.
- Page 33 Managing the Channel Banks PLAN YOUR CHANNEL BANKS BY FILLING IN THESE CHARTS (or use photocopies) B Purpose Channel Number 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 B Purpose Channel Number 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 B Purpose Channel Number...
-
Page 34: Installer Menus
Installer menus Use the Installer Menu to set up or change operational settings 0IMCRM1038A 01.83 See descriptions of the Installer items on the following pages... Accessing the Installer’s Menu Installer’s menu items can be accessed by using the optional LP702 installer’s remote INST. - Page 35 Installer menus Installer Menu Items 26-I through 63-I Menu Item Function Value Range Default Value Brief Description of Function and Comments 26-I NOT USED 27-I NOT USED 28-I CH. OVER RIDE 0 / 1 When set to 0. limits direct access to favorite channels. 29-I OLD OCV 0 / 1...
- Page 36 SLEEP TIMER is also nonfunctional. Power Manage is OFF. Settings range from 0 - 7, with 1 - 7 repre- *M.P.I. Multiple Protocol Input: Zenith protocol for remote control of TV through RJ11 (M.P.I.) jack on TV connections panel. 206-3824...
- Page 37 Installer menus Installer Menu Items 3-I through 11-I: Detailed Descriptions 3-I. BAND/AFC (Band/Automatic Frequency Control) vent damage to the screen. The default is “0” or OFF. There are 8 possible settings for this option: NOTE: When captions are on, the “Ghost Channel” is not dis- played.
- Page 38 30-I. ACK MASK 20-I. FEATURE LEVEL M.P.I. Communication Parameter. Leave at default setting unless Default set to ZEN 1 for Zenith IR remote control operation. changed by Pay-Per-View provider. Set O, P LBL for Zenith Private Label IR remote con- trol operation.
- Page 39 Installer menus Installer Menu Items 32-I through 57-I: Detailed Descriptions 32-I. TIMING PULSE 48-I. DIS. SETUP M. M.P.I. Communication Parameter. Leave at default setting unless Set to 1 to disable the Setup menu. Setup menu will not appear. changed by Pay-Per-View provider. Set to 0 to enable the Setup menu.
- Page 40 Installer menus Installer Menu Items 58-I through 76-I: Detailed Descriptions 58-I. FOR. AUDIO. COL. (Audio Menu Foreground Color) 1 = Red 4 = Blue 7 = White 0 = Black 3 = Yellow 6 = Cyan 2 = Green 5 = Violet 1 = Red 4 = Blue 7 = White...
- Page 41 Installer menus Installer Menu Items 77-I through 86-I: Detailed Descriptions 77-I. NOT USED Adds an additional delay to the handshake time which is 64 msec, thus relaxing M.P.I. timing requirements to be compatible 78-I. UPN MSB with PC based Windows controlled systems, range is 0 - 5. User programmable number, most significant byte readable by Set to 0 to retain standard 64 msec delay.
-
Page 42: Before You Begin
Using a Zenith Multi-Brand remote like the MBR3447, set up a • Use a Zenith MBR Remote like the MBR3447 or the TV front “master” TV with custom settings and features as described in the panel controls to operate Learning and Teaching menus. - Page 43 Since the Clone Programmer’s time cannot be set directly, the time needs to be copied from a Zenith TV equipped with M.P.I. input capability. 206-3824 P A G E 4 3...
-
Page 44: Troubleshooting
Clone Selection Menu Choices Operation Notes The LT2000 programmer is designed to be used with TVs contain- ing the 221-01006 and later processors. Use with earlier TV sets Disconnect the Clone from the TV when you are finished; auto- may give unpredictable results. The specific microprocessor used matically switching it off. - Page 45 Maintenance Routine TV cabinet and screen cleaning Careful and regular cleaning can extend the the useful service life of the TV. Be sure to turn the power off and pull out the plug before you begin any cleaning. Screen Cleaning 1.
- Page 46 Troubleshooting Some quick and easy tips to resolving problems SYMPTOMS POSSIBLE SOLUTION(S) Snowy picture and unclear sound. • Check the antenna connection or location. • Check the cable input. • Check to see if the TV/VCR button on the VCR has the TV selected. •...
- Page 47 End User Remote Key Functions A quick list of the keys on the optional end user remote for L20V34S and what they do FLASHBK (FLASHBACK) CC (CLOSED CAPTIONING) Direct access to closed captions. Returns to the last channel viewed. Press ENTER to exit. POWER MUTE Turns TV On or Off...
-
Page 48: User Parental Control Menu
Not for children under age 17 under any circumstances. Strong sexual content. Hard Core Films Same as NC-17 rating. Note: Zenith Electronics Corporation is not liable for any program content that appears when using this rating system; as always, user discretion is advised. 206-3824... -
Page 49: User Parental Control Menu
End User Parental Control Menu After you have read the preceding page, follow instructions below to set up and activate Parental Control CHANNEL PREVIEW• CONTENT BLOCK - - - - DIALOG - - - - LANGUAGE - - - - - - - - SEX SCENES TV-MA... -
Page 50: User Menus And On-Screen Displays
User Menus & On-Screen Displays Press the remote keys indicated below to access these menus and displays ALARM MENU Rating: Ch 25 - PBS 7:15 TV-14 TIME NOW 3:11 PM TIMER 6:10 AM TIMER PRESS DIGITS TO SET TIME OLD TIME MOVIES TIMER TO SELECT AM/PM LENGTH 01:00 TIME LEFT 00:36... - Page 51 Front Panel Controls Operation Using the front control panel to operate the LCD TV/Monitor Note: The TV master switch must be set to ‘ I’ for the TV to be in standby mode. TV Operation Press the POWER button to turn the LCD TV/Monitor on from standby mode.
- Page 52 Image-Persistence Cause & Prevention Image-Persistence is rare on LCDs but is something of which you, the customer, should be aware. What is Image-Persistence? A residual image from a previous screen is still viewable after changing channels/inputs. Sometimes the after image will fade away in a few seconds/minutes, but it is possible that the image is persistent and doesn’t fade away.
- Page 53 LCD TV/Monitor Welcome to the Zenith family! We believe that you will be pleased with your LCD TV/Monitor. Please read this warranty carefully, it is a “LIMITED WARRANTY” as defined under Federal Law. This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state within the U.S.A.
