Motherboard rear and audio connections

2.2.1

Rear I/O connection

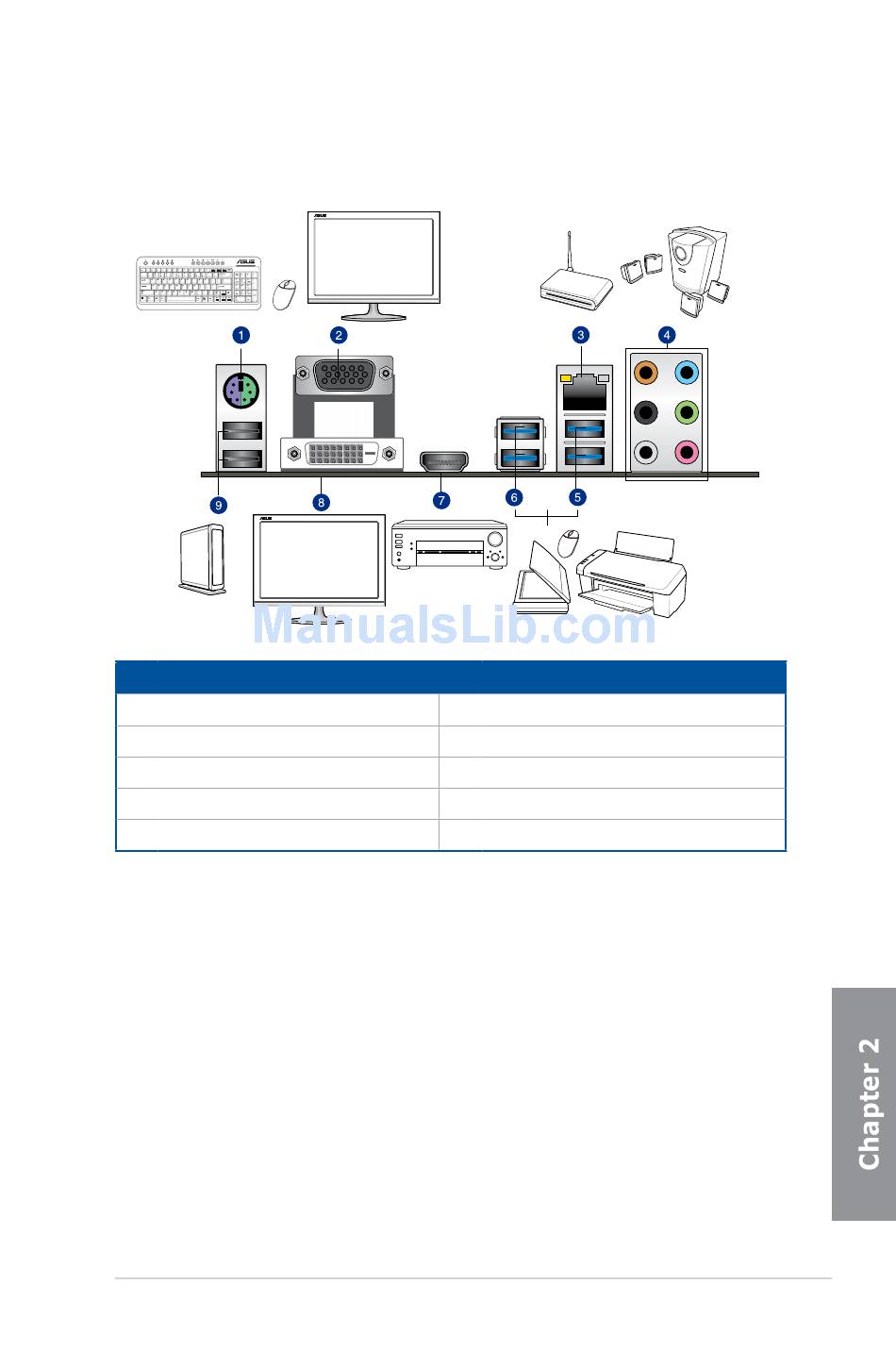

Rear panel connectors
PS/2 Keyboard / Mouse Combo port
1.
2. Video Graphics Adapter (VGA) port
3. Intel LAN port (LAN)*
®
4. Audio I/O ports**
5. USB 3.0 ports 34
* and **: Refer to the tables on the next page for LAN port LEDs, and audio port definitions.
ASUS H97-PRO
6. USB 3.0 ports 56
7. HDMI port
8. DVI-D port
9. USB 2.0 ports 78
