Indoor Unit; Outdoor Unit - Daikin FTXN25KEV1B Operation Manual

Outdoor Unit

• Appearance of the outdoor unit may differ from some models.

Indoor Unit

1. Air fi lter
2. Titanium apatite photocatalytic
air-purifying fi lter:
• These fi lters are attached to the inside of
the air fi lters.
3. Air inlet
4. Front panel
5. Panel tab
6. Room temperature sensor:
• It senses the air temperature around the
unit.
7. Display
8. Air outlet
9. Flap (horizontal blade):
10. Louvers (vertical blades):
• The louvers are inside of the air outlet.
(page 12)
11. Model name plate

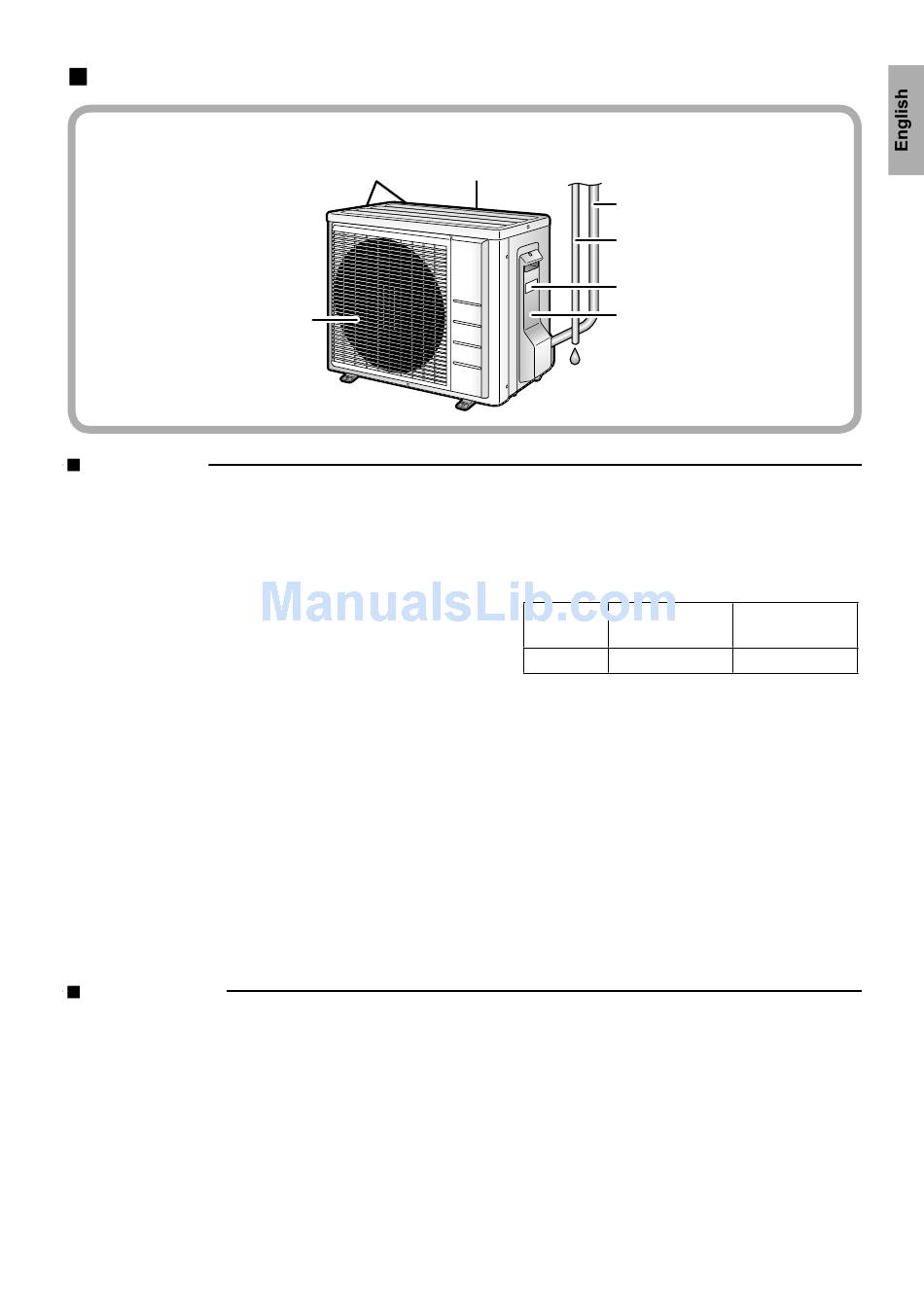

Outdoor Unit
16. Air inlet (back and side)
17. Refrigerant piping and inter-unit wiring
18. Drain hose
19. Earth terminal:
• It is inside of this cover.
16
20
(page 11)
21
17
18
22
19
12. Indoor unit ON/OFF switch:
• Press this switch once to start operation.
Press once again to stop it.
• The operation mode refers to the following
table.
Temperature
Mode
AUTO
• This switch is useful when the remote
controller is missing.
13. OPERATION lamp (green)
14. TIMER lamp (yellow):
15. Signal receiver:
• It receives signals from the remote controller.
• When the unit receives a signal, you will
hear a beep sound.
• Operation start
• Settings changed
• Operation stop
20. Air outlet
21. Outdoor temperature sensor (back)
22. Model name plate
Airfl ow rate
setting
25°C AUTO
(page 16)
.............beep-beep
.........beep
.............long beep
5
