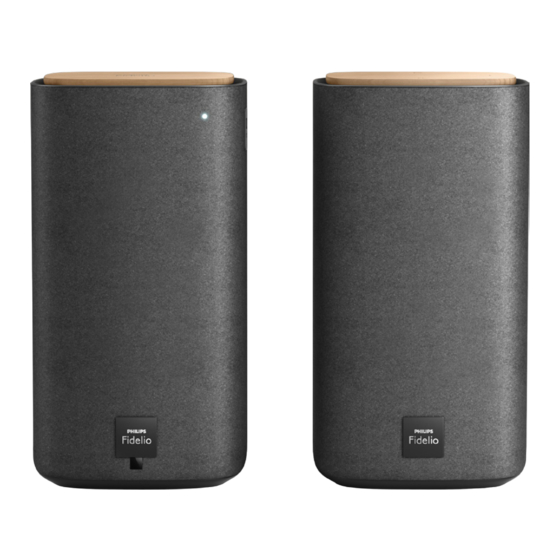

Philips BTS7000 User Manual

Speaker system
Hide thumbs

Advertisement

Quick Links

Always there to help you
Register your product and get support at
www.philips.com/welcome
BTS7000
Question?
Contact
Philips

User manual

Advertisement

loading

  Also See for Philips BTS7000

  Related Manuals for Philips BTS7000

  Summary of Contents for Philips BTS7000

  • Page 1: User Manual

    Always there to help you Register your product and get support at www.philips.com/welcome BTS7000 Question? Contact Philips User manual...
  • Page 3: Table Of Contents

    Contents 1 Important Safety Care for your product Care of the environment Compliance Help and support Mains fuse 2 Your product Main unit Remote control Connectors 3 Connect and set up Connect the main unit Place speakers Connect to TV Connect audio from TV and other devices 4 Use your product...
  • Page 4: Important

    1 Important • Parts of this product can be made of glass. Handle with care to avoid injury and damage. Risk of overheating! Read and understand all instructions before you • Never install this product in a confined use your product. If damage is caused by failure to space.
  • Page 5: Care For Your Product

    Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Help and support For extensive online support, visit www.philips. com/support to: When this crossed-out wheeled bin symbol is • download the user manual and the quick...
  • Page 6: Mains Fuse

    Mains fuse This information applies only to products with a UK mains plug. This product is fitted with an approved molded plug. If you replace the fuse, use one with: • the ratings shown on the plug, • a BS 1362 approval, and • the ASTA approval mark. Contact your dealer if you are not sure about what type of fuse to use.
  • Page 7: Your Product

    Congratulations on your purchase, and Blue LED welcome to Philips! To fully benefit from the • Lights up when you switch to support that Philips offers, register your product Bluetooth mode and Bluetooth devices at www.philips.com/welcome. are paired. • Blinks when you switch to Bluetooth...
  • Page 8 (Mute) Mute or restore volume. d VOL +/- Increase or decrease volume. e BASS +/- Increase or decrease bass. f TREBLE +/- Increase or decrease treble. g RESET Set the bass and treble to the default settings. h AUDIO SYNC +/- Increase or decrease audio delay.
  • Page 9: Connectors

    On the left speaker a AUDIO IN Audio input from, for example, an MP3 player (3.5mm jack). b USB connector (not for media play) • Used for software upgrade of this product. • Used to charge a USB device. c OPTICAL Connect to an optical audio output on the TV or a digital device.
  • Page 10 On the right speaker a TO L SPEAKER Connect to the left speaker. b AC MAINS~ Connect to the power supply.
  • Page 11: Connect And Set Up

    3 Connect and set This section helps you connect this product to a TV and other devices, and then set it up. For information about the basic connections of this product and accessories, see the quick start guide. Note • For identification and supply ratings, see the type plate at the back or bottom of the product.
  • Page 12: Connect Audio From Tv And Other Devices

    Using a High Speed HDMI cable, connect Option 1: Connect audio through a the HDMI ARC connector on the left digital optical cable speaker to the HDMI (ARC) input on the Best quality audio • The HDMI ARC connector on the TV might be labeled differently.
  • Page 13: Use Your Product

    4 Use your Press TREBLE +/- or BASS +/- to change the frequency. product » If the treble or bass is set to the maximum or minimum, the white LED on the speaker lights up for two seconds. This section helps you use this product to play To reset the bass and treble to the default audio from connected devices.
  • Page 14: Play Music Via Bluetooth

    Bluetooth, search for and select Philips • The operational range between the main BTS7000 to start connection (see the user unit (left and right speakers) and a NFC manual of the Bluetooth device on how to device is approximately 10 meters (30 enable Bluetooth).
  • Page 15: Auto Standby

    Auto standby If no audio/video playback is detected from a connected device for 30 minutes, this product automatically switches to standby. Apply factory settings You can reset this product to the default settings programmed at the factory. In OPTICAL mode, press and hold RESET for five seconds.
  • Page 16: Update Software

    Unzip the download if zipped, and make sure that the unzipped folder is named "BTS7000.BIN". b Put the "BTS7000.BIN" folder in the root directory. Connect the USB storage device to the USB connector (POWER OUT) on the left speaker of this product.
  • Page 17: Product Specifications

    6 Product • Power consumption: 50 W • Standby power consumption: ≤ 0.5 W specifications • Speaker impedance: • Woofer: 4 ohm • tweeter: 8 ohm • Speaker drivers: 2 x 101.6 mm (4") woofer + 2 x 25.4 mm (1") tweeter • Dimensions (WxHxD): Note 160 x 305 x 160 mm...
  • Page 18: Troubleshooting

    • This product is already connected with If you still have a problem, get support at www. another Bluetooth device. Disconnect the philips.com/support. connected device, then try again. Quality of audio play from a connected Main unit Bluetooth device is poor.
  • Page 19 Specifications are subject to change without notice 2013 © WOOX Innovations Limited. All rights reserved. Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by WOOX Innovations Limited under license from Koninklijke Philips N.V.
