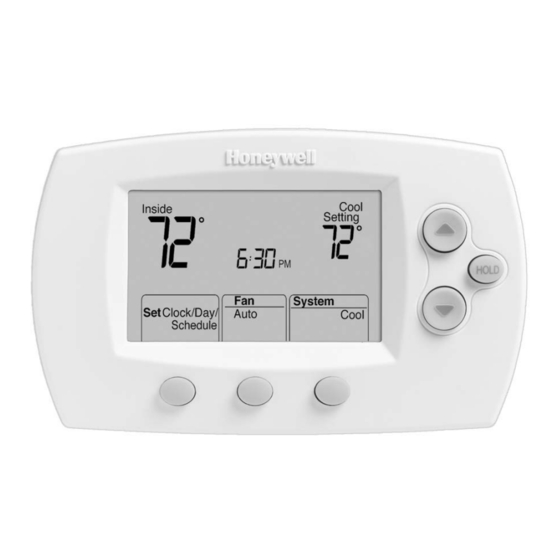

FocusPRO
Programmable Thermostat
TH6000 Series
®
Operating
Manual
69-1921EFS-03

Advertisement

loading

  Summary of Contents for Honeywell FocusPRO TH6000 Series

  • Page 1: Operating Manual

    Operating Manual FocusPRO TH6000 Series ® Programmable Thermostat 69-1921EFS-03...
  • Page 2: Battery Holder

    (Remove battery holder to find model number) Need Help? For assistance with this product please visit http://yourhome.honeywell.com or call Honeywell Customer Care toll-free at 1-800-468-1502 Read and save these instructions. ® U.S. Registered Trademark. Patents pending. Copyright © 2011 Honeywell International Inc. All rights reserved.
  • Page 3: Table Of Contents

    FocusPRO TH6000 Series ® Table of contents About your new thermostat Appendices Thermostat features ........2 Battery replacement ........ 17 Programming at a glance ......3 In case of difficulty........18 Quick reference to controls ....... 4 Customer assistance ....... 20 Quick reference to display ......
  • Page 4: About Your New Thermostat

    Operating Manual About your new thermostat About your new thermostat Congratulations on the purchase of your new Honeywell thermostat. It has been designed to give you many years of reliable service and easy-to-use, push-button climate control. Features 69-1921EFS—03...
  • Page 5: Set Time And Day

    FocusPRO TH6000 Series ® About your new thermostat This thermostat is ready to go! Your new thermostat is pre-programmed and ready to go. All you have to do is set the time and day. Then check the settings below and change if needed: Set time and day (required for proper operation) ......See page 6 Select fan setting (Auto/On): Preset to Auto ....To change, see page 7 Select system setting (Heat/Cool): Preset to Heat ..To change, see page 8...
  • Page 6: Quick Reference To Controls

    Operating Manual About your new thermostat Quick reference to controls Digital display (see page 5). Battery holder (see page 17). Temperature Buttons Press to adjust temperature settings (see page 11-13). Hold Button Press to override programmed temperature M29457 control (see page 13). Function Buttons Press to select the function displayed just above each button.
  • Page 7 FocusPRO TH6000 Series ® About your new thermostat Quick reference to display screen Current inside temperature Low battery warning Current time/day (see page 17) (see page 6) In Recovery Temperature setting Heat Inside Replace Battery (see page 16) Setting (see pages 11-13) In Recovery Auxiliary heat 6 : 30...
  • Page 8: Set The Time And Day

    Operating Manual About your new thermostat Set the time and day Press SET CLOCK/DAY/SCHEDULE, then adjust time 1. Press the SET CLOCK/DAY/SCHEDULE 4 : 30 button, then press to set the clock time. System Set Clock/Day/ Auto Heat 2. Press the SET DAY button, then Schedule press to select the day...
  • Page 9 FocusPRO TH6000 Series ® About your new thermostat Select the fan setting Press the FAN button to select Auto or System Set Clock/Day/ Auto Heat In “Auto” mode (the most commonly used Schedule setting), the fan runs only when the heating runs continuously.
  • Page 10 Operating Manual About your new thermostat Select the system setting Press the SYSTEM button to select: System Set Clock/Day/ Auto Heat Heat: Thermostat controls only the Schedule heating system. Cool: Thermostat controls only the cooling system. System Off: Heating and cooling systems are off. Set Clock/Day/ Auto Cool...
  • Page 11: Save Money By Setting Program Schedules

    FocusPRO TH6000 Series ® About your new thermostat Save money by setting program schedules time periods each day, with different settings for weekdays and weekends. Set to the time you awaken and the temperature you want during WAKE 6:00 am the morning, until you leave for the day.
  • Page 12 Operating Manual About your new thermostat Energy-saving settings for maximum cost savings This thermostat is pre-set with energy-saving program settings. We recommend these (Mon-Fri) (Mon-Fri) (Sat-Sun) (Sat-Sun) Heat Cool Heat Cool Wake ° ° ° ° (6:00 am) ° ° Leave °...
  • Page 13: To Adjust Program Schedules

    FocusPRO TH6000 Series ® About your new thermostat To adjust program schedules 1. Press SET CLOCK/DAY/SCHEDULE, then SET System Set Clock/Day/ Auto Cool SCHEDULE. Schedule 2. Press to set your weekday Wake time (Mon–Fri), then press NEXT. 3. Press to set the temperature for this Done time period, then press NEXT.
  • Page 14: Program Schedule Overrides

    Operating Manual About your new thermostat Program schedule override (temporary) Press to temporarily adjust temperature. Press to immediately adjust the temperature. This will temporarily Heat Temporary Inside Setting override the temperature setting for the current time period. 6 : 30 The new temperature will be System Run Schedule...
  • Page 15 FocusPRO TH6000 Series ® About your new thermostat Program schedule override (permanent) Press to permanently adjust temperature. Press HOLD to permanently adjust the temperature. This will override Heat Inside Setting the temperature settings for all time Hold periods. 6 : 30 The “Hold”...
  • Page 16: Auto-Changeover (Heat/Cool)

    Operating Manual About your new thermostat Auto changeover (heat/cool) Auto Changeover is a feature used in cli- System mates where both air conditioning and heat- Set Clock/Day/ Auto Auto Schedule ing are used on the same day. When the sys- tem is set to Auto, the thermostat automati- cally selects heating or cooling depending on MCR29465...
  • Page 17: Compressor Protection

    FocusPRO TH6000 Series ® About your new thermostat Built-in compressor protection This feature helps prevent damage to the Cool Inside Setting compressor in your air conditioning or heat pump system. 6 : 30 restarted too soon after shutdown. This fea- Cool On ture forces the compressor to wait for a few System...
  • Page 18: Adaptive Intelligent Recovery

    Operating Manual About your new thermostat Adaptive Intelligent Recovery (AIR) Adaptive Intelligent Recovery eliminates guesswork when setting your schedule. It allows the thermostat to “learn” how long your furnace and air conditioner take to reach the temperature you want. Just set your program schedule to the time you want the house to reach your desired temperature.
  • Page 19: Battery Replacement

    FocusPRO TH6000 Series ® About your new thermostat Battery replacement Press and pull to remove Batteries are optional (to provide backup power) if your thermostat was wired to run on AC power when installed. Replace Battery Install fresh batteries immediately when the REPLACE BATTERY warning begins flashing.
  • Page 20: In Case Of Difficulty

    Operating Manual About your new thermostat In case of difficulty If you have difficulty with your thermostat, please try the following suggestions. Most problems can be corrected quickly and easily. Display is blank batteries are correctly installed (see page 17). Make sure heating and cooling temperatures are set to acceptable ranges: Temperature settings do not...
  • Page 21 FocusPRO TH6000 Series ® About your new thermostat In case of difficulty Heating or SYSTEM button to set system to Heat. Make sure the temperature cooling system is set higher than the Inside temperature. does not respond SYSTEM button to set system to Cool. Make sure the temperature is set lower than the Inside temperature.
  • Page 22: Customer Assistance

    Model number Accessories/replacement parts xxxxxxx xxxxxxx To order, please call Honeywell Customer Care toll-free at 1-800-468-1502. Battery holder ....Part No. 50007072-001 Cover plate assembly* ..Part No. 50002883-001 *Use to cover marks left by old thermostats. MCR29468...
  • Page 23: Year Limited Warranty

    (5) years from the date of purchase by the consumer. If at any time during the warranty period the product is determined to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option).
  • Page 24 This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that the defect or malfunction was caused by dam- age which occurred while the product was in the possession of a consumer.
  • Page 25 Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. If you have any questions concerning this warranty, please write Honeywell Customer 69-1921EFS—03...
  • Page 26 Automation and Control Solutions Honeywell International Inc. http://yourhome.honeywell.com ® U.S. Registered Trademark. © 2011 Honeywell International Inc. Printed in U.S.A.
