Installation

The QuickScan

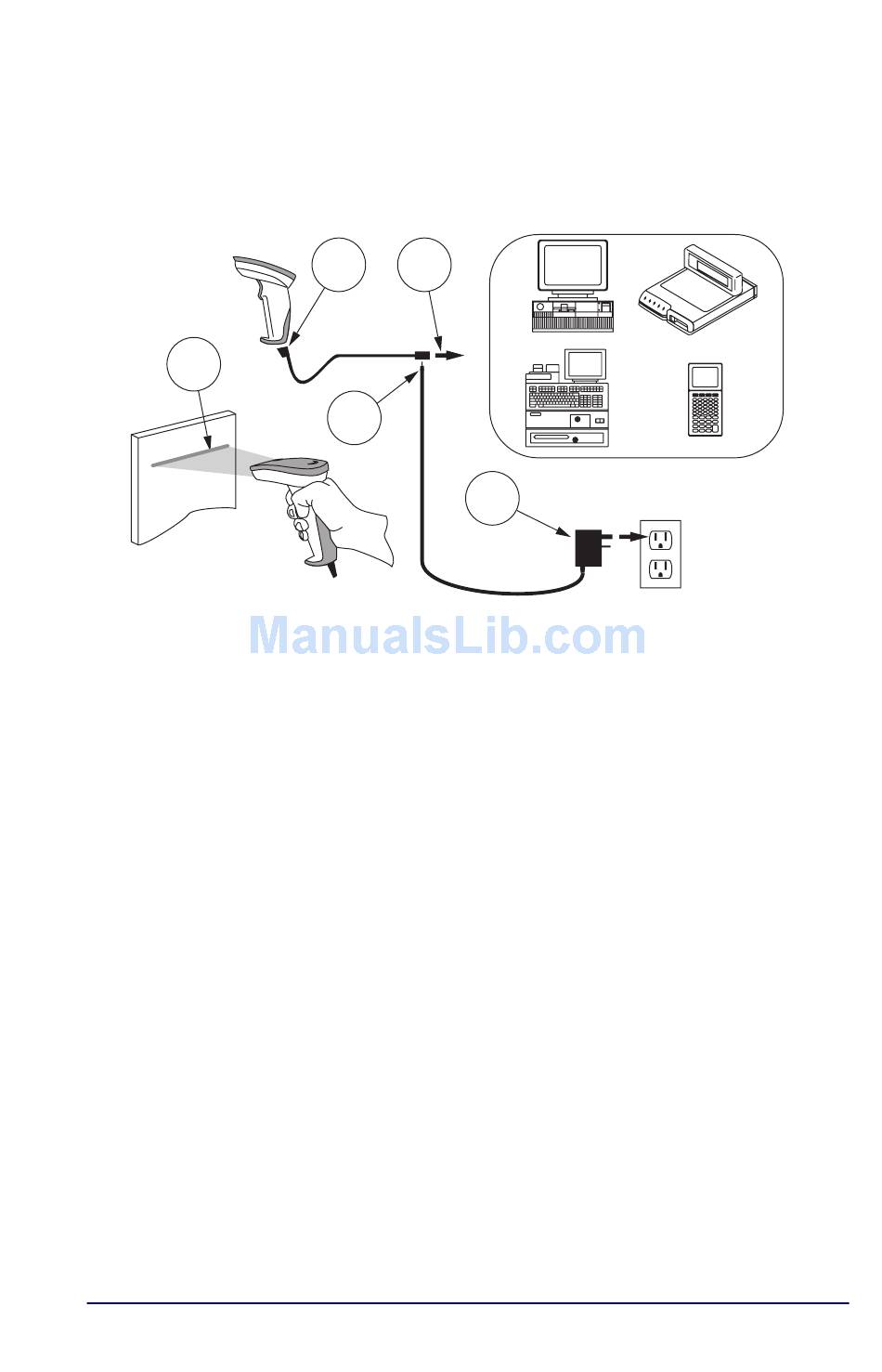

The following figure shows the steps to perform an installation.
Turn off the host computer before connection. Consult the host
terminal's manual if necessary.
5
1. Connect the interface (I/F) cable to the linear imager.
2. Connect the I/F cable to the terminal's communication port.
3. Connect the power cord to the I/F cable connector if
required. Linear imagers that use power off the terminal
(P.O.T.) do not require a power supply.
4. If required, connect the AC adapter to the wall outlet.
5. To verify operation, point the linear imager at a bar code and
pull the trigger. The linear imager should emit a single beep
indicating that the label has been scanned successfully.
The linear imager installation is complete.

Power Supply

Unit requires either a Listed Class 2 or Listed LPS power source
which supplies power directly to the linear imager.
Quick Reference Guide
®
QS6500 linear imager is easy to install and use.
1
2
3
$4.50
$2.79
$3.99
4
1
