3 Label Location

Serial Number Location (Tracer
SX5 non-recliner is located on right
crossbrace. Tracer SX5 recliner is
located on right frame)
Part No. 1110550
IMPORTANT NOTICE
The wheel locks on this wheelchair have been
pre-set at the factory to comply with the
Veterans Administration functional Standard
8320.01 of the Federal Register, paragraph
3.2.4.5.3. If these wheel locks do not meet
your needs, follow instructions below.
CAUTION
!
Any wheel lock adjustments should embed
wheel lock shoe at least 1/8" into tire when
locked (3/16" on pneumatic tires).
INSTRUCTIONS FOR WHEEL
LOCK ADJUSTMENTS
1. Loosen wheel lock mounting fastener,
which runs through mounting bracket and
frame.
2. Slide clamp toward rear wheel until wheel
lock shoe is embedded into tire material at
least 1/8" when handle is engaged to the
lock position (3/16" for pneumatic tires).
3. Tighten mounting fastener to secure
mounting bracket in desired location and
recheck lock shoe embedding.
4. Inspect for correct locking action BEFORE
actual use.
00078X021-0394
WARNING
Refer to Owner's Manual
for proper anti-tipper
setting.
1085379
REV. 5/98
13

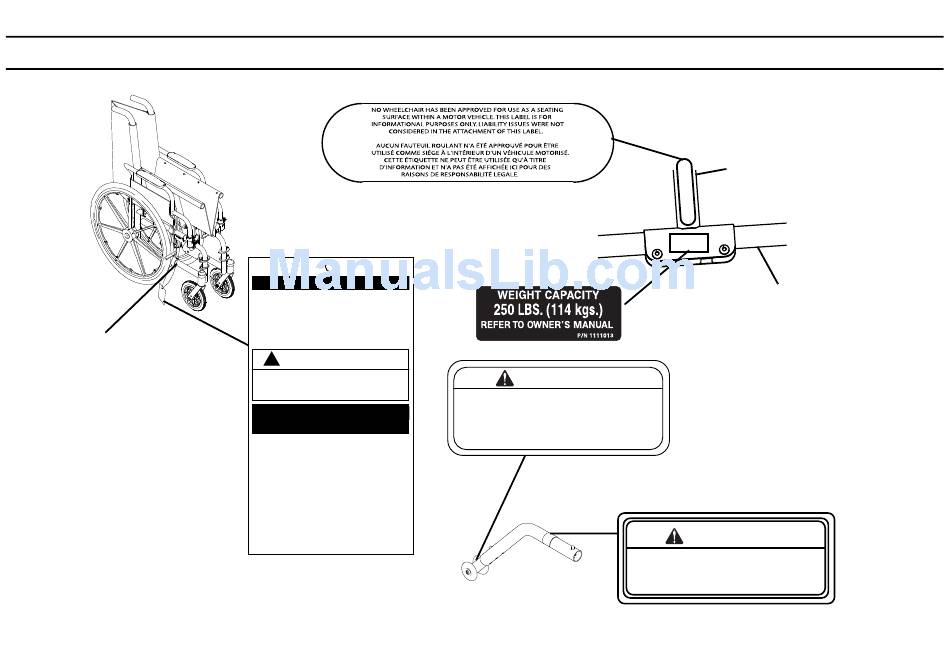

3 LABEL LOCATION
Crossmember
Lower Frame Tube
NOTE: On all
adjustable anti‐tippers
WARNING
DO NOT OPERATE WITHOUT
THE ANTI-TIP TUBES
INSTALLED.
P/N 60106X144
®
Tracer SX5
