Sterling Plumbing ACCLAIM 71090125 Specifications

Features
• Compression molded from Sterling's exclusive solid
Vikrell material
®
• Stainless steel grab bars 1-1/2" (3.8 cm) OD
• Modular 4-piece design
• Lightly pebbled bottom surface for sure footing
• Tongue-and-groove "snap together" design
• Durable high gloss finish
• Handicap seat mounts directly to back wall of bath
surround and rests on dam of bath
• 10 year consumer/3 year commercial limited warranty
• 15" (38.1 cm) bath depth (floor to top of dam)
• Backwall bars: Two 42" (106.7 cm) long grab bars
Endwall bar: 24" (61 cm) long grab bar
• 60" (152.4 cm) x 31-1/2" (80 cm) x 73-1/2"
(186.7 cm) complete unit rough-in dimensions include
flanges
• 60" (152.4 cm) x 30" (76.2 cm) x 72" (182.9 cm)
complete unit finished dimensions
Codes/Standards Applicable
Specified model meets or exceeds the following:
• ADA
• ANSI Z124.1.2
• ASTM E162
• ASTM E662
• IAPMO/UPC
• HUD, UM Bulletin 73A
• NAHB Research Foundation, Inc.
Specified Model
Model ADA Compliant Complete Unit Description
71090115 60" (152.4 cm) ADA compliant bath and wall surround, left drain
71090125 60" (152.4 cm) ADA compliant bath and wall surround, right drain
Model ADA Adaptable Component Description
71091114 60" (152.4 cm) bath only, left drain
71091124 60" (152.4 cm) bath only, right drain
71092103 Back wall, with grab bars
71094103 Complete wall set, with grab bars
71095103 End wall set, with grab bars
SterlingPlumbing.com
Visit us online for fixture color choices, detailed product information, color photos, installation instructions, care
guides, and warranties. Sterling offers additional lines of plumbing products to complement the Sterling product
you've chosen. Sign up for the Sterling monthly e-newsletter which showcases our latest product innovations. You
may also call our Sterling Plumbing Answer Center from within the USA at 1-888-STERLING in addition to
consulting with your local dealer. Sterling. Strong. Professional. Design.
Page 1 of 2
D
1016222-4-

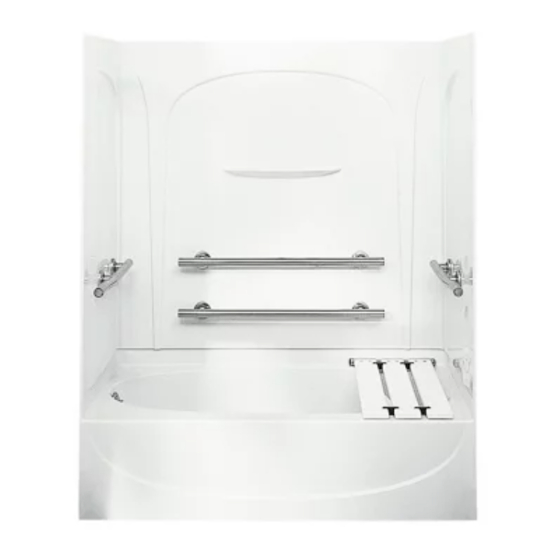

60" (152.4 cm) ADA COMPLIANT
BATH/SHOWER SYSTEM
Colors/Finishes
•
0: White
•
Other: Refer to Price Book for additional colors/finishes
Colors/Finishes
❑ 0
❑ 0
Colors/Finishes
❑ 0
❑ 0
❑ 0
❑ 0
❑ 0
ACCLAIM
TM
71090115
ALSO 71090125
❑ Other_____
❑ Other_____
❑ Other_____
❑ Other_____
❑ Other_____
❑ Other_____
❑ Other_____
