Sterling Plumbing 71224106 Specification Sheet

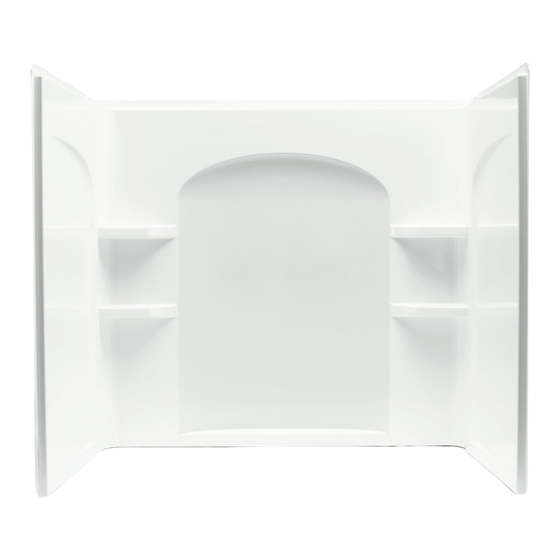

Ensemble 32″ (81.3 cm) bath/shower surround with backer boards
Hide thumbs


Advertisement

Features
• Compression molded from Sterling's exclusive solid
Vikrell
material
®
• Modular 3-piece design
• Tongue-and-groove "snap together" design
• Durable high gloss finish
• 10 year consumer/3 year commercial limited warranty
• Allows for future attachment of grab bars
• Curved design
• Wall surround allows for attachment of grab bars
• Integrated shelving on back wall
• 60" (152.4 cm) x 32" (81.3 cm) bath/shower or
whirlpool bath available separately
• 60" (152.4 cm) x 33-1/4" (84.5 cm) x 55-1/4" (140.3
cm) complete unit rough-in dimensions include flange
• 60" (152.4 cm) x 32" (81.3 cm) x 54" (137.2 cm)
complete unit finished dimensions
Codes/Standards Applicable
Specified model meets or exceeds the following:
• ANSI Z124.1.2
• IAPMO/UPC
• CSA B45
Specified Model
Model
Wall Component Description
71224106
32" (81.3 cm) complete wall set with backers
Model
Complete Unit Description
71220116
Bath and complete wall set with backers, left hand drain
71220126
Bath and complete wall set with backers, right hand drain
71220118
Bath and complete wall set with backers, left hand AFD
71220128
Bath and complete wall set with backers, right hand AFD
SterlingPlumbing.com
Visit us online for fixture color choices, detailed product information, color photos, installation instructions, care
guides, and warranties. Sterling offers additional lines of plumbing products to complement the Sterling product
you've chosen. Sign up for the Sterling monthly e-newsletter which showcases our latest product innovations. You
may also call our Sterling Plumbing Answer Center from within the USA at 1-888-STERLING in addition to
consulting with your local dealer. Sterling. Strong. Professional. Design.
Page 1 of 2
A
1063920-4-
32" (81.3 cm) BATH/SHOWER
SURROUND WITH BACKER BOARDS
Colors/Finishes
0: White
Other: Refer to Price Book for additional colors/finishes
Colors/Finishes
❑ 0
Colors/Finishes
❑ 0
❑ 0
❑ 0
❑ 0
ENSEMBLE
TM
71224106
❑ Other_____
❑ Other_____
❑ Other_____
❑ Other_____
❑ Other_____
