Features
• Compression molded from our exclusive solid Vikrell
material
• Stainless steel grab bars 1-1/2" (3.8 cm) OD
• Tongue-and-groove 4-piece modular design allows for
easy "snap together" installation
• Durable high-gloss finish
• Handicap seat mounts directly to back wall of bath
surround and rests on dam of bath
• 10-year consumer/3-year commercial limited warranty
• Backwall bars: Two 33" (83.8 cm) long grab bars
Endwall bar: 24" (61 cm) long grab bar
• 15" (38.1 cm) bath depth (floor to top of threshold)
• 60-1/4" (153 cm) x 31-1/2" (80 cm) x 73-1/2"
(186.7 cm) complete unit rough-in dimensions include
flanges
• 60" (152.4 cm) x 30" (76.2 cm) x 72" (182.9 cm)
complete unit finished dimensions
Codes/Standards Applicable
Specified model meets or exceeds the following:
• ADA
• ASTM E162
• ASTM E662
• CSA B45.5/IAPMO Z124
• HUD, UM Bulletin 73A
• NAHB Research Foundation, Inc.
Specified Model
Model
ADA Compliant Complete Unit Description
71090115
60" (152.4 cm) ADA compliant bath and wall surround, left drain
71090125

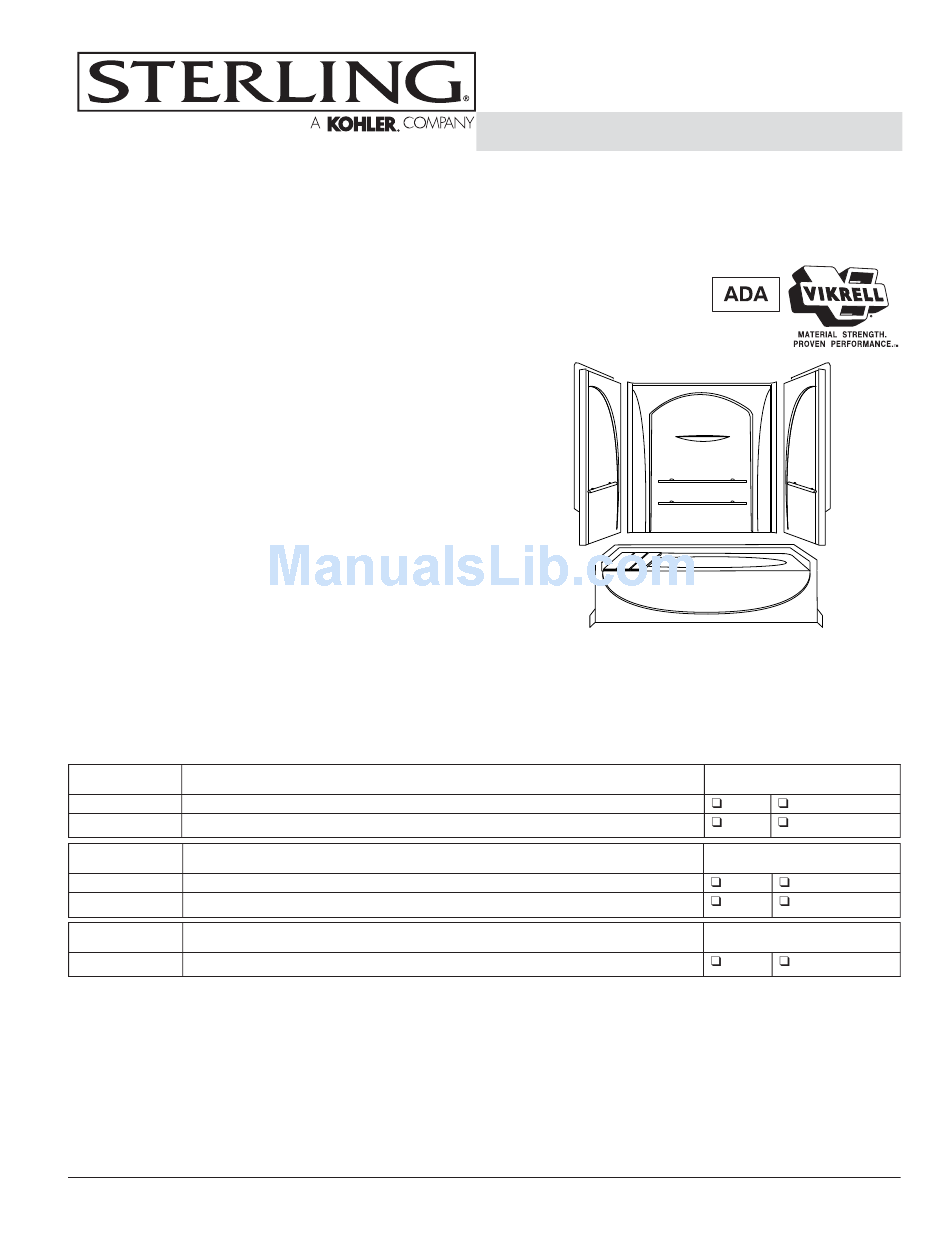

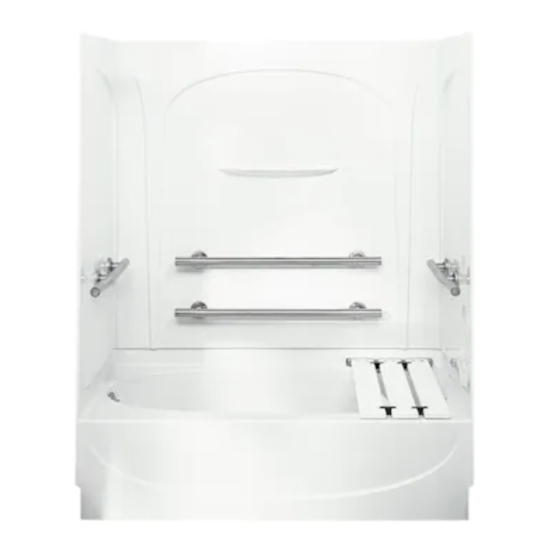

60" (152.4 cm) ADA compliant bath and wall surround, right drain (shown)
Model
Component Description
71091114
60" (152.4 cm) bath only, left drain
71091124
60" (152.4 cm) bath only, right drain
Model
ADA Adaptable Wall Component Description
71094103
Complete wall set, with grab bars
Page 1 of 2
H
1016222-4-
60" (152.4 cm) ADA COMPLIANT
BATH AND WALL SURROUND
®
Colors/Finishes
•
0: White
•
Other: Refer to Price Book for additional colors/finishes
ACCLAIM
TM
71090115
ALSO 71090125
Colors/Finishes
0
Other_____
0
Other_____
Colors/Finishes
0
Other_____
0
Other_____
Colors/Finishes
0
Other_____
For more information
visit SterlingPlumbing.com
or call 1-800-STERLING
