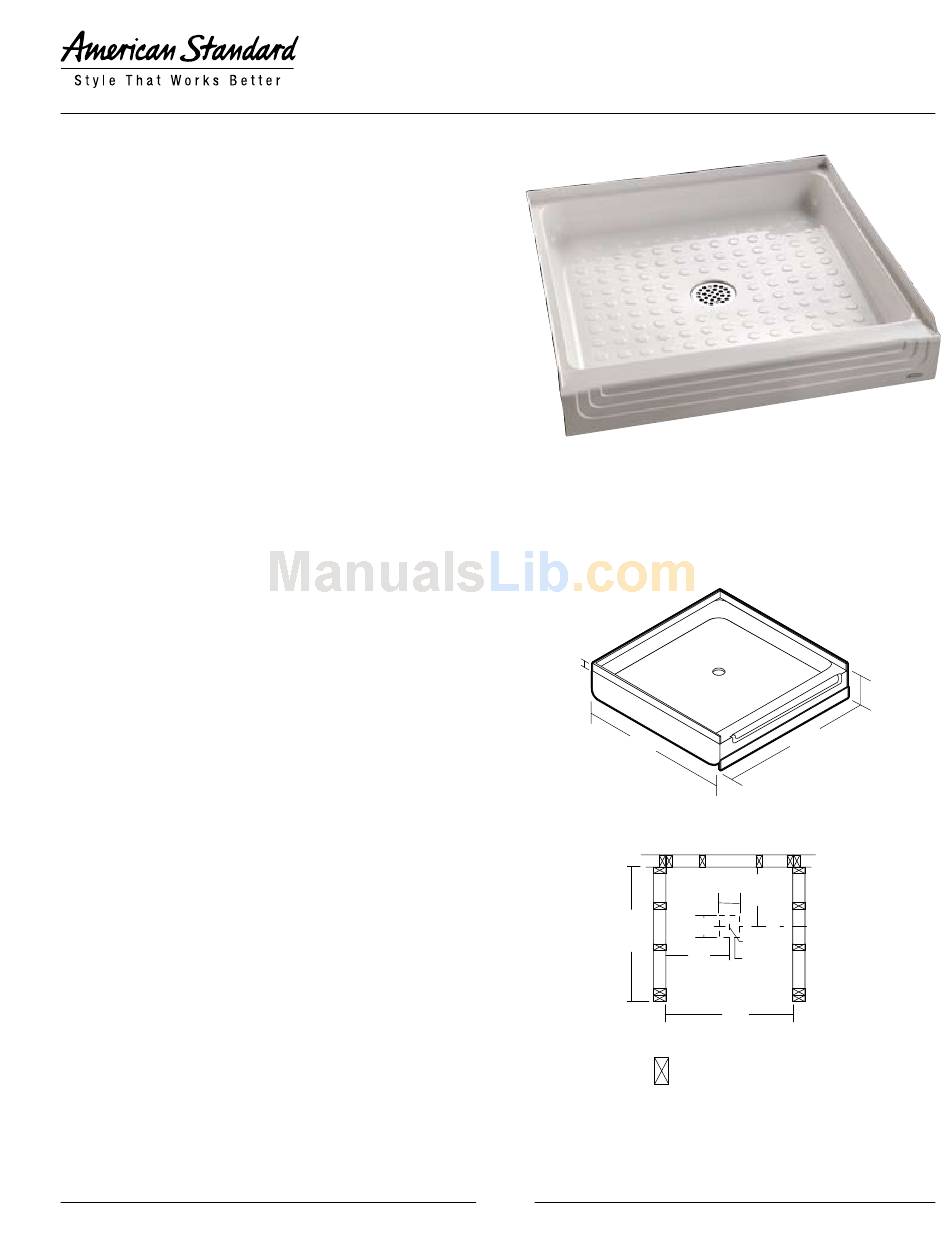

American Standard Acrylux 32"x 32" 3232Y1.ST Specifications

ACRYLUX™ 32" x 32" SHOWER BASE
❑ 3232Y1.ST SHOWER BASE

Product Features:

• High-gloss acrylic-capped ABS with
fiberglass reinforcement
• Single threshold
• Integral three-sided, tiling/water
retention flange
• Textured bottom

Nominal Dimensions:

31-7/8" x 31-5/8" x 5-1/8"
(810 x 803 x 130mm)

For use with:

• 3232Y1.SW Shower Wall Set
• Base can also be installed without Acrylux wall set

Compliance Certifications -

Meets or Exceeds the Following Specifications:
• ANSI Z124.2 for Plastic Showers
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
© 2008 AS America Inc.
1"
(25mm)
31-5/8"
(828mm)

STUD LAYOUT

33-1/2"
(851mm)
H165
ACRYLUX 32" x 32"
™
SHOWER BASE
HIGH GLOSS
31-7/8"
(835mm)
6"
14-3/4"
(152mm)
(375mm)
6"
Drain C L
(152mm)
16"
(406mm)
Floor Cut Out
6" x 6" (154 x 154mm)
32"
(813mm)
= Stud Location
5-1/8"
(130mm)
Revised 5/08
