American Standard Bath And Shower Trim kits T385.5XX Installation Instructions

Reliant 3
BATH AND SHOWER TRIM KITS
with
EverClean™ Finish
Congratulations on purchasing your American Standard faucet with
EverClean finish found only on American Standard faucets.
EverClean Finish
• One wipe effortlessly removes spots.
• Eliminates the need for cleaners and scrubbing.
• Permanent surface protectant remains beautiful for the life of the faucet.
To ensure that your installation proceeds smoothly-please read these
instructions carefully before you begin.
Required Tools
Phillips Screwdriver

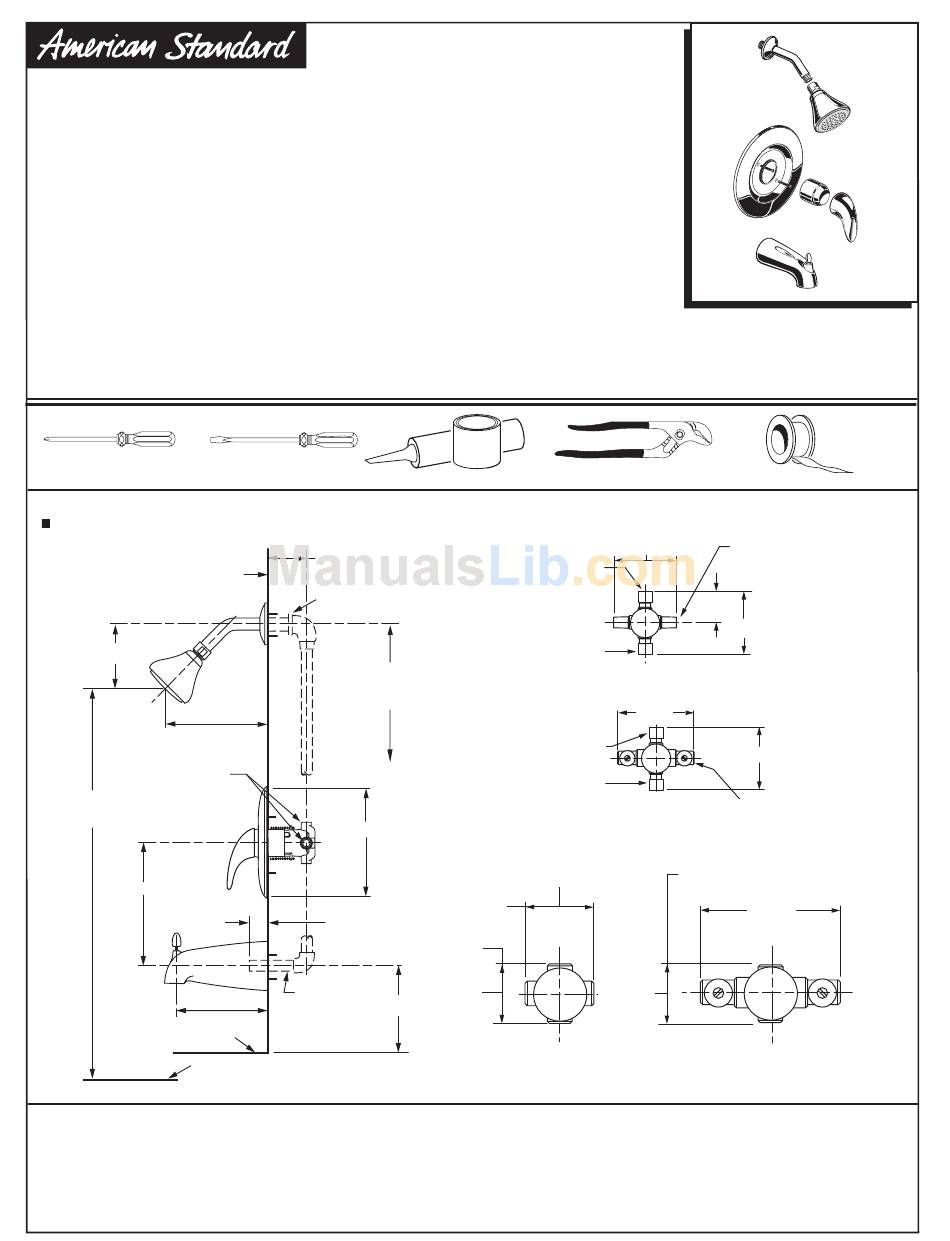

ROUGHING-IN DIMENSIONS
To assure proper positioning in relation to wall, note
roughing-in dimensions.
FINISHED WALL
4-1/4" REF.
6" REF.
"SEE ILLUSTRATION "
74" FOR HEAD
CLEARANCE
18" OPTIONAL
5-1/2" REF.
TOP OF TUB RIM
BOTTOM OF TUB
EverClean™ Finish Care Instructions
American Standard's EverClean finish will wipe clean with a soft, dry cloth. A soft cloth with
clean water may also be used, if desired. No additional cleaning products are required.
DO NOT USE: Soaps, acid, polish, abrasives, harsh cleaners, or a cloth with a coarse surface.
Flat Blade Screwdriver
Plumbers' Putty or Caulking
3/4"" TO 2-3/8"
1/2" NPT
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 80''
SHR 7-5/8"
TUB
1-1/2" REF.
1/2" COPPER
4"
Installation
Instructions
T385.5XX
Channel Locks
SHR. 1/2" NOM.
COPPER SWEAT
SWEAT
INLETS
TUB 1/2" NOM.
COPPER SWEAT
SWEAT
INLETS (STOPS)
SHR. 1/2" NOM.
COPPER SWEAT
TUB 1/2" NOM.
COPPER SWEAT
INLETS 1/2" NPT
3-3/8"
3-3/8"
OUTLETS
1/2" NPT
THREADED INLETS
Certified to comply with ANSI A112.18.1
Teflon Tape
INLETS
INLETS
1/2" NOM.
4-1/16"
COPPER
SWEAT
2"
4-1/16"
5-7/8"
4-1/16"
INLETS
1/2" NOM.
COPPER
SWEAT
OUTLETS
1/2" NPT
5-7/8"
3-3/8"
THREADED INLETS (STOPS)
M 9 6 8 8 9 8
INLETS
1/2" NPT
