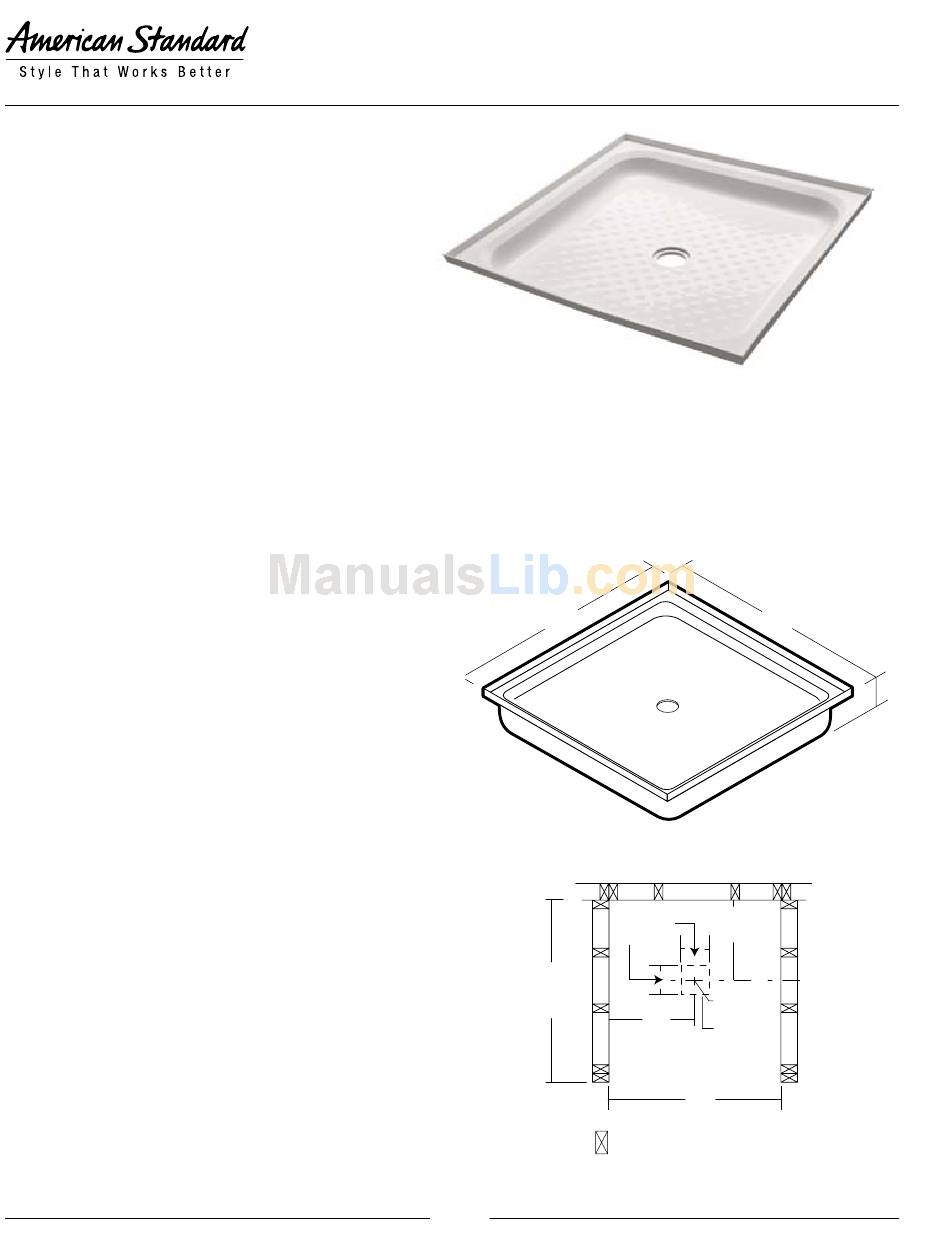

American Standard Evolution NFPA 258 Specifications

ACRYLUX™ 36" x 36" SHOWER PAN
❑ 3636Y1.SR SHOWER PAN

Product Features:

• High-gloss acrylic-capped ABS with
fiberglass reinforcement
• Integral tiling flange on all sides
• Textured bottom

Nominal Dimensions:

36" x 36" x 5"
(914 x 914 x 127mm)

Compliance Certifications -

Meets or Exceeds the Following Specifications:
• ANSI Z124.2 for Plastic Showers
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
© 2008 AS America Inc.
ACRYLUX™ 36" x 36"
36"

STUD LAYOUT

(152mm)
37½"
(952mm)
= stud location
H176
SHOWER PAN
HiGH GLOSS
36"
18"
6"
(457mm)
Drain C L
18"
Floor
(457mm)
Cutout
6" x 6"
(152mm x 152mm)
36"
(914mm)
5"
Revised 5/08
