Page 1: User Manual

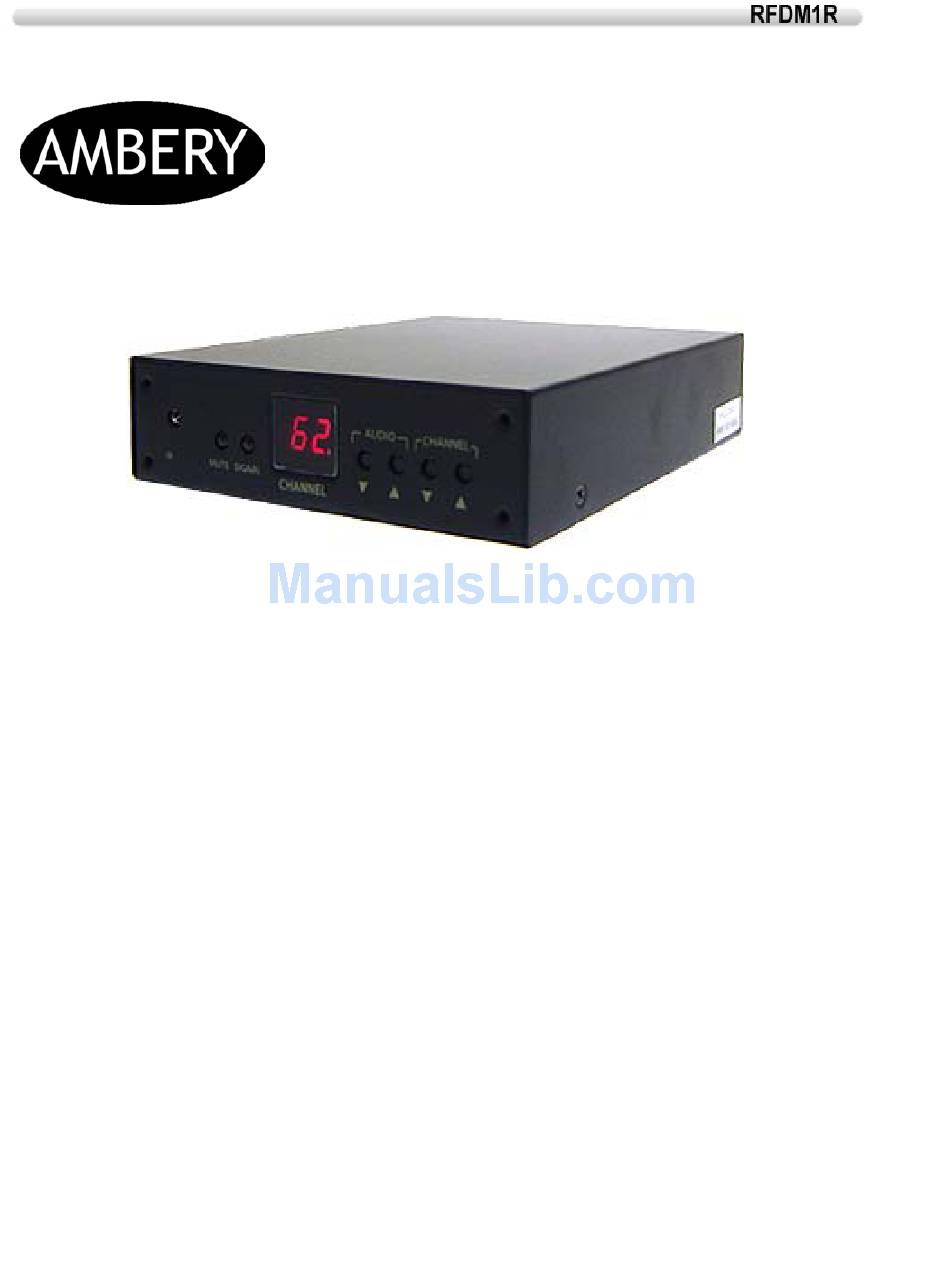

Coax A/V Agile Demodulator TV Tuner User Manual (Model: RFDM1R) -
Page 2: Product Features
RFDM1R Demodulator 1. Product Features : This coax to composite A/V demodulator is a professional grade NTSC TV channel converter, designed to work with coax TV signals such as cable TV or satellite channels, closed circuit private TV channels or other RF... - Page 3 2. Introduction : Front Panel 5. IR: IR remote sensor/receiver (optional) 1. AUDIO ▼: Volume down (level:16-0) 6. MUTE: Shut off the audio L/R channel 2. AUDIO ▲: Volume Up(level:0-16) 7. SIGNAL: The LED lit on for indication of 3. CHANNEL▼: Channel down unit engaging in channel switching.
- Page 4 3. Installation : (1) RF Signal Input (2) Video Output to Monitor (3) Audio Output to speaker (4) DC 7.5 ~ 12V 300mA Power Supply 4: LED Channel Display : CH 100- CH 139 For higher TV channel number in 100+ (3 digit display), the channel LED screen will display with a “dot”...
- Page 5 VHF/UHF Setup The default setting for our RFDM2 is for CATV channel range. To reset RFDM2 unit for VHF/UHF air TV channels. Please follow the steps below: 1. Power on the RFDM2 unit first. The LED screen on the front will display the system status in “nC”...
-
Page 6: Specification
Specification Digital LED Channel Display Channel Display Channel CATV(NTSC) system / CH2 ~ CH139 48.25MHz ~ 883.25MHz Frequency Range Input Level Range -5 ~ +30 dbmv Video Output Level 1Vp-p ± 0.2Vp-p (75 ohm) RF Input : “ F “ type, Female Composite Video Output : RCA Jack Connector Stereo Audio L-Output : RCA Jack...
