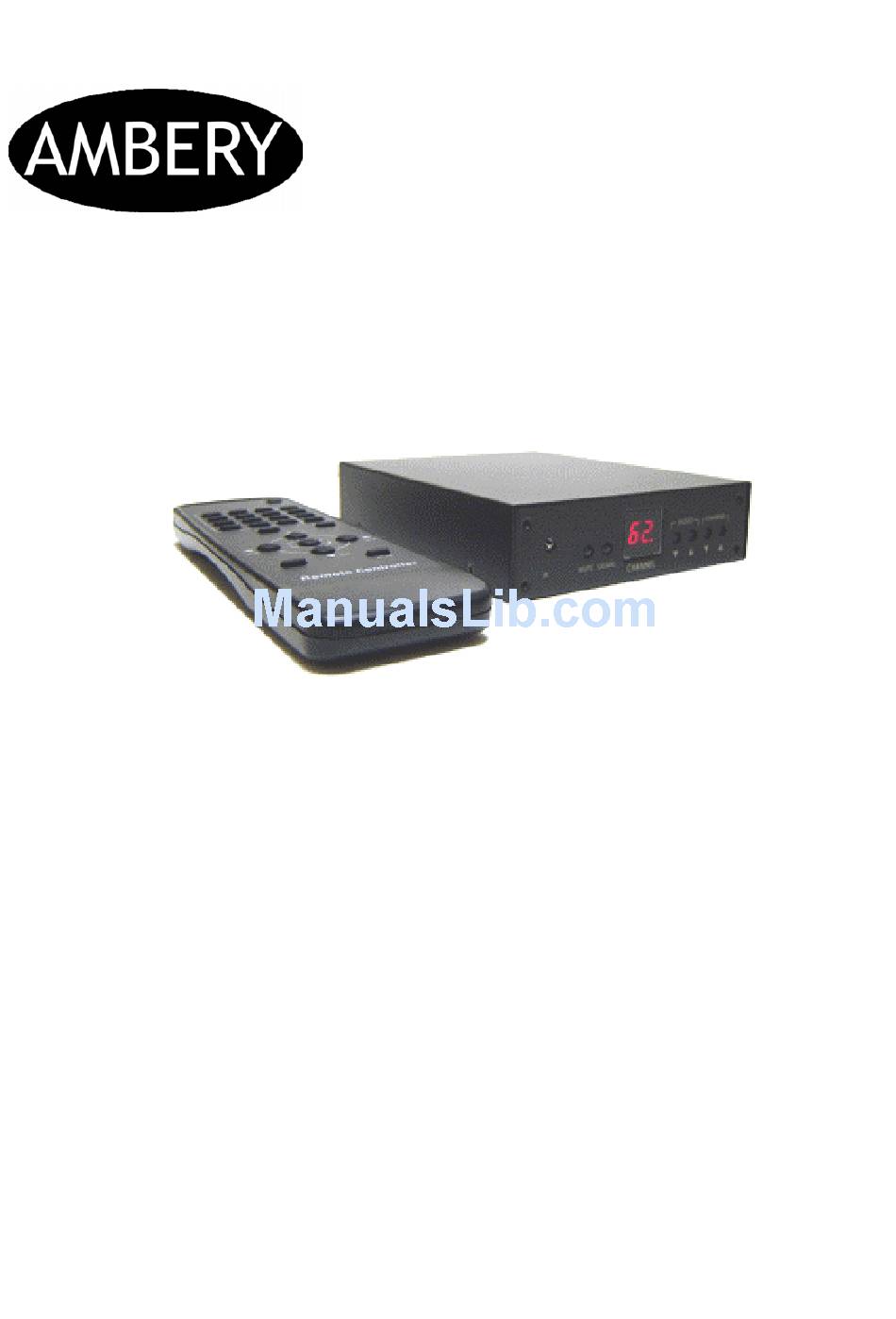

Page 1: User Manual

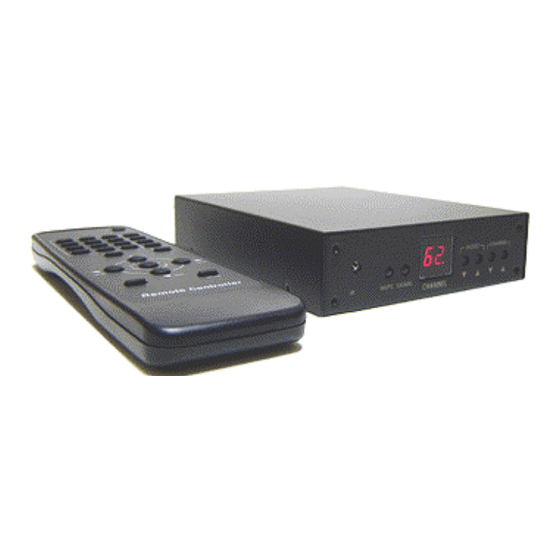

Coax A/V Agile Demodulator Tuner W/IR Remote Control User Manual (Model: RFDM2‐PBG) -
Page 2: Product Features
RFDM2-PBG Demodulator with IR 1. Product Features: This coax to composite A/V demodulator is a professional grade PAL B/G TV channel converter, designed to work with coax TV signals such as cable TV or satellite channels, closed circuit private TV channels or other RF modulated signals to standard video/audio in composite RCA formats for various applications such as displaying, recording, or further A/V broadcast and distribution. - Page 3 2. Introduction : Front Panel 5. AUDIO ▼: Volume down (level:16-0) 1. IR: IR remote sensor/receiver 6. AUDIO ▲: Volume Up(level:0-16) 2. MUTE: Shut off the audio channel 7. CHANNEL▼: Channel down 3. SIGNAL: The LED lit on for indication 8.
- Page 4 3. Installation : (1) RF Signal Input (2) Video Output to Monitor (3) Audio Output to speaker (4) DC 7.5 ~ 12V 300mA Power Supply 4. LED Channel Display : CH 100- CH 139 For higher TV channel number in 100+ (3 digit display), the channel LED screen will display with a “dot”...
- Page 5 5. IR Remote Controller Panel : 1. Lock: Lock/Unlock specific channel (work with 2. Channel Up/Down: CH+ : Fast switching channels up CH - : Fast switching channels down 3. Volume Up/Down: VOL+ : Volume up VOL - : Volume down 4.
- Page 6 6. Remote Controller : (1) After installation, you can switch channel by remote controller. (2) For CH 02 ~ CH99, please enter 2 numbers. ex. : CH 03 press 0 and 3 CH 30 press 3 and 0 when you switch channel, the “signal” light is on. (3) For CH 100 or more, please press 100+ button then 2 numbers.
- Page 7 (3) Press button from the remote controller to lock and confirm. LED Display Description no “dot”, this channel is deleted If you want the hidden channel back, just press again. You can see a “ dot “ there. (4) Press , setting is completed.
- Page 8 VHF/UHF Setup The default setting for our RFDM2 is for CATV channel range. To reset RFDM2 unit for VHF/UHF air TV channels. Please follow the steps below: 1. Power on the RFDM2 unit first. The LED screen on the front will display the system status in “nC”...
-
Page 9: Specification
Specification Channel Display Digital LED Channel Display Channel CATV - PAL B/G system (Ch1 to Ch106) Frequency Range 48.25 - 860.75MHz Input Level Range -5 ~ +30 dbmv Video Output Level 1Vp-p ± 0.2Vp-p (75 ohm) RF Input : “ F “ type, Female Composite Video Output : RCA Jack Connector Stereo Audio L-Output : RCA Jack...
