LevelOne FEP-0811 Technical Specifications

8-Port Fast Ethernet
PoE Switch
H/W Version: 1

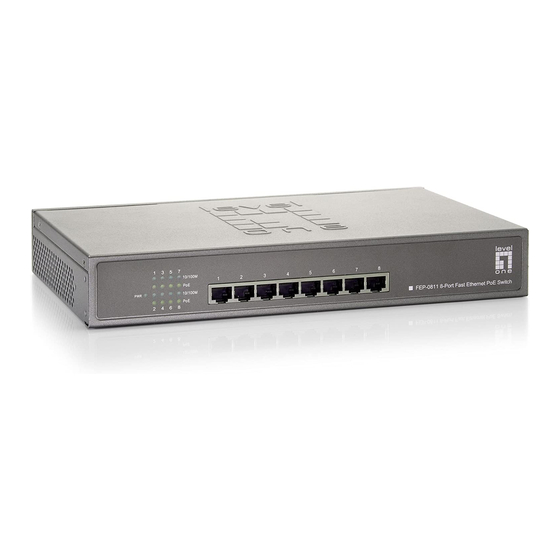

The LevelOne FEP-0811 is a high-performance
10/100Mbps Ethernet PoE Switch. All 8 of the
PoE ports are powered up to 15.4w. The total PoE
power budget is 123.2w. This switch automatically
detects IEEE802.3af compliant powered devices and
provides power and data over a single cable. It's an
ideal solution for office and home users to utilize a
combination of PoE and non-PoE devices.
Flexible PoE Installation & Solution
With data and power over Ethernet from one unit,
the FEP-0811 can reduce cables and eliminate the
need for dedicated power outlets on the wall, ceiling
or any unreachable place. A wire carries both data
and power lowering the installation costs, simplifying
the installation effort and eliminating the need for
electricians or extension cords.
1
Key Features
- Complies with IEEE802.3af, IEEE 802.3, IEEE 802.3u
and IEEE802.3x
- 8 x PoE ports support 15.4w power on each port to
PoE Powered Device
- Each Switching port supports auto-negotiation-
10/100Mbps (Fast Ethernet)
- Auto-MDI / MDI-X detection on each RJ-45 port
- 4K MAC address table, automatic source address
learning and ageing
- 11-inch metal case with 19-inch rack mount holder
- Internal power supply
- Total PoE power budget: 123.2w

2 3 4
Stable and reliable network Environment
The FEP-0811 enables users to deploy a stable and
reliable high-speed LAN environment, with store-and-
forward switching architecture, the FEP-0811 provides
a stable and reliable packet error filtering and non-
blocking packet forwarding architecture. This device
supports N-way auto-networking speed and duplex
modes.
Easy to use
Providing 8 PoE interfaces, the FEP-0811 is ideal for
small businesses and workgroups needing to deploy
PoE for wireless access points, IP-based surveillance
cameras or IP phones in any place easily, efficiently
and cost effectively. For instant error detection, the
FEP-0811 is equipped with LED Indicators to define
problems on the network.
1. LED Indicators
2. 10/100Mbps RJ-45 PoE Ports
3. Power On / Off Switch
4. Power Socket
