LevelOne FEU-2410 Technical Specifications

24-Port Fast Ethernet
Switch
H/W Version: 1
Product Overview

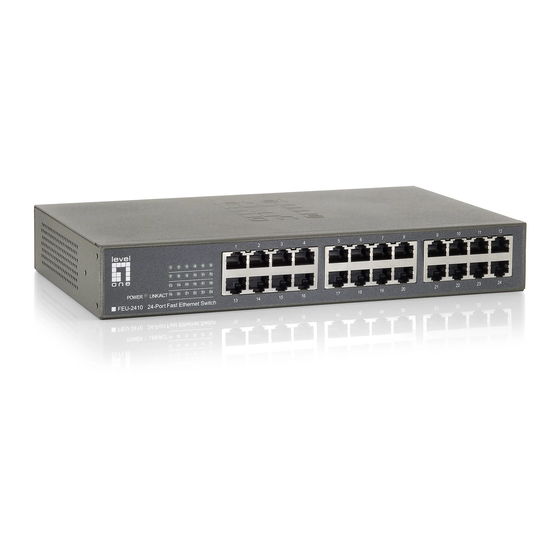

The LevelOne FEU-2410 is a 10/100Mbps NWay
Unmanaged Switch with outstanding performance
and high efficiency. With 24 NWay auto-negotiation
ports, this switch fulfills the needs of connecting
users on a network with automatic selection of best
network speed and duplex mode.
Power Saving Features
The FEU-2410 supports Green Ethernet and is
compliant with IEEE 802.3az Energy Efficient
Ethernet to provide power–saving benefits
without compromising performance. One way is to
automatically detecting the length of connected
cables and to adjust power usage by saving energy on
shorter cable connections.
Key Features
- 24 x 10/100Mbps RJ-45 NWay Ports
- Supports NWay protocol for speed (10/100Mbps)
and duplex mode (full/half ) detection
- Supports MDI/MDI-X auto crossover and support
full/half duplex operation on all ports
- Supports back-pressure (half duplex) and flow
control (IEEE 802.3x)
- Wire-speed packet filtering and forwarding rate
- Store-and-forward architecture filters fragment and
CRC error packets
- Provides LED indicators for network diagnostics
- Metal casing with internal power supply
- Supports IEEE802.1p priority queuing Quality of
Service
- Supports IEEE 802.3az Energy Efficient Ethernet

1 2
1. LED Indicators
2. 10/100Mbps RJ-45 Ports
Traffic Prioritization (Quality of Service)
The FEU-2410 supports IEEE802.1p priority queuing
Quality of Service which provide considerably enhance
download quality. User can reserve bandwidth for
important functions that require a large bandwidth
or have a high priority, such as VoIP, web browsing
application or video conferencing.
Easy to Use
The FEU-2410 is plug-and-play and supports all
kind of network protocols to make installation and
network management easy and fast. LED indicators
provide a quick and easy way to read port and switch
information.
3. Power Socket
4. Wall-Mountable
Works Well With
FEU-2410
3 4 4
FNC-0107TX
Fast Ethernet PCI Card with Wake-
On LAN function
USB-0301
USB Fast Ethernet Adapter
