Summary of Contents for Hotpoint WM60
-

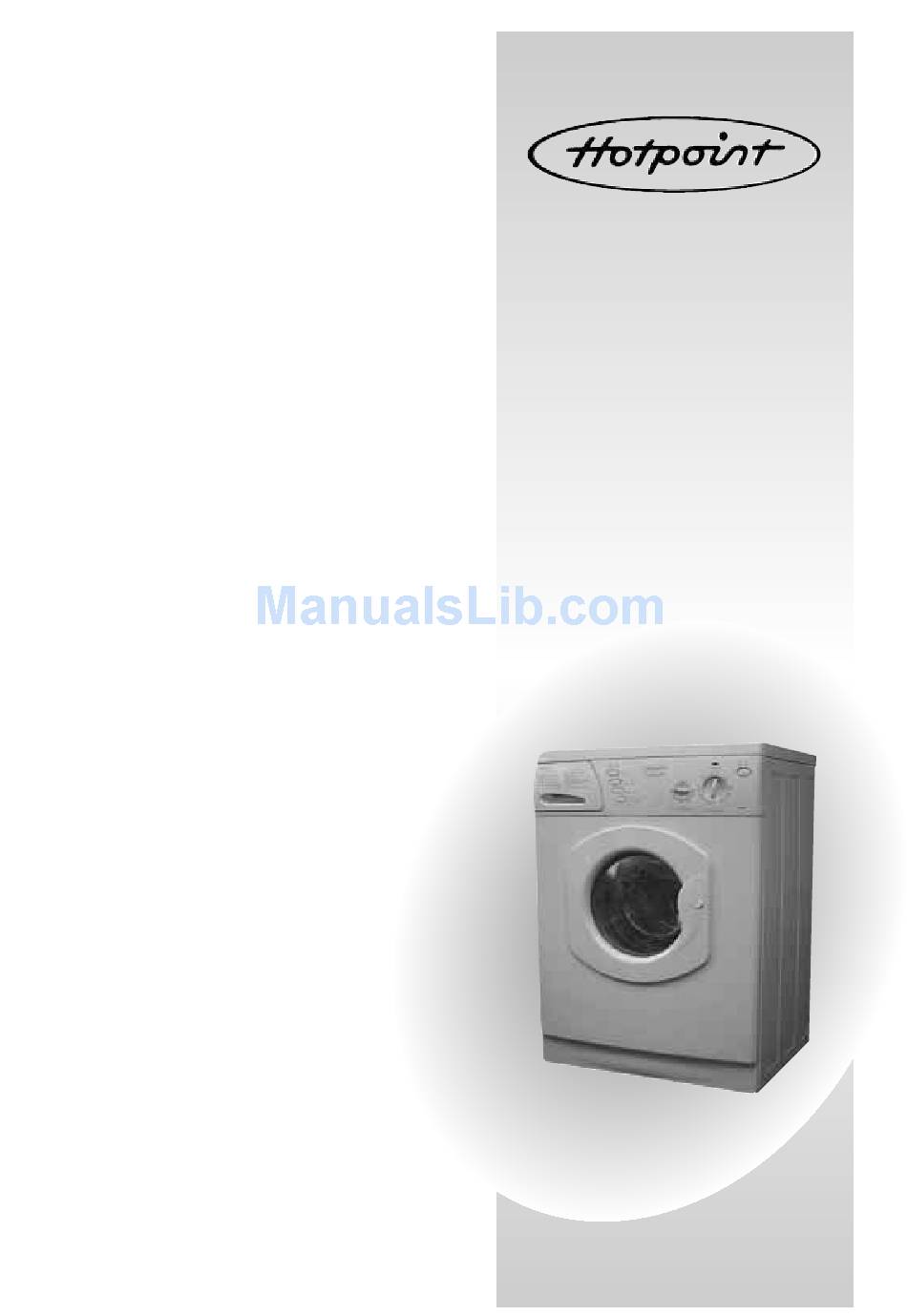

Page 1: Instruction Manual
Instruction Manual For Models WM80, WM79, WM77, WM69, WM68, WM67, WM66 and WM60 Congratulations on the purchase of your new Washing Machine. IMPORTANT INFORMATION Please read this instruction book thoroughly before installing and using your appliance for the first time. -
Page 2: Electricity Supply
(Fig 1). Changing the Mains Lead A special lead can be ordered from Hotpoint Service UK: 08709 066 066 or Republic of Ireland: 1850 302 200 If you have damaged the existing lead or require a longer one a charge will be made. It is strongly advised that this work is carried out by a qualified electrician. -
Page 3: Table Of Contents
Programme Recycling & Disposal Information As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the right to use quality recycled components to keep down customer costs and minimise material wastage. Please dispose of packaging and old appliances carefully. To minimise risk of injury to children, remove the door, plug and cut mains cable off flush with the appliance. -
Page 4: Installation Instructions
Installation Instructions IMPORTANT INFORMATION: Do not plug in and switch appliance on at the mains until installation is complete. You may be charged for a service call if a problem with your appliance is caused by incorrect installation or misuse. Follow these 5 steps for a trouble free installation: 1. - Page 5 2. Remove Transit Bracket... Your appliance is fitted with an internal bracket (Fig 1) which prevents damage to the appliance during transit. Remove parts (Fig 2) following the instructions below. Note: It is normal for the door seal to look creased, it will not affect its use. Fig 1 Remove 3 screws from back of work top lid, retain.
- Page 6 Refit connector and tighten. Turn on water supply taps. If you have no hot water supply... A Cold Fill Adaptor (Fig 3) is available from your local Hotpoint authorised Service Centre or by calling the Genuine Parts & Accessories Mail Order Hotline UK: 08709 077 077 or Republic of Ireland: (01) 842 6836.
-
Page 7: When You Have Installed Your Appliance, Ensure
4. Connect to a Drainage System... Do not remove hooked end support from drainage hose. Do not position standpipe near an electrical outlet. For drainage into a standard work top sink ensure outlet pipe has a minimum bore of 32 mm. To avoid syphoning ensure the end of the drainage hose is above the water level in the sink. -
Page 8: Getting To Know Your Appliance
15. Hooked End Support Mains On/Off Button. Wash Dial Variable Spin Speed Dial 2 available on Models WM80, WM 69, WM66 & WM60 4 available on Models WM79 WM77, WM68 & WM67 Interlocking Door & Release Button Detergent/Fabric Conditioner Drawer... -
Page 9: Button Selection
Button Selection Fig 1 To select, press button and button comes out. To cancel, press again and button is flush with console. Interlocking Door System Fig 2 To Open... Grip the door handle and press the button whilst pulling open the door (Fig 2). -
Page 10: A Typical Wash Programme
A Typical Wash Programme WARNINGS Do not allow children to play with the appliance or tamper with the controls. Do not overload appliance! It may damage laundry and reduce the quality of the wash. Do not attempt to open the door when the indicator light is on. -
Page 11: Choosing A Wash Programme
****1200rpm Maximum spin speed for Models WM80, WM79 and WM66 ***1150rpm Maximum spin speed for Model WM77 and WM68 **1100rpm Maximum spin speed for Models WM67 and WM60 *1000rpm Maximum spin speed for Model WM69 Approximate Prog.Time (in minutes) -
Page 12: Wash Features
Not available with programme ‘A’ or the wool programme ‘K’ . Note: Remember to cancel selections after use. Automatic Features Pulse Spin (for Models WM80, WM79, WM77, WM68, WM67, WM66 & WM60 only) Helps reduce wear and tear on your wash items. -
Page 13: Weight Of Wash Load
Washcare Weight of Wash Load Tips Two examples of typical wash loads for Before washing laundry:- different types of fabric Pre-treat stains. COTTON Close zips, tie belts, strings etc... and press studs to prevent 2 Bath Towels tangling. 5 Shirts Remove paper/tissues from pockets. -
Page 14: The Dispenser Drawer
You will need up to 50% more detergent in hard water than in soft water areas to obtain the same wash results. Note: Hotpoint recommend dispensing detergent from the drawer to achieve the best wash results. Index Drawer Latch. -
Page 15: Changing The Main Wash Indicator
Dispensing Liquid Detergent Changing the Main Wash Indicator The Main Wash Indicator has been fitted, ready to dispense ‘Powder’ detergent only. Refer to detergent manufacturer’s instructions for dosage and pour liquid into the compartment (Fig 1). Note: The ‘Liquid Detergent’ Main Wash Indicator features 3 lines which represent the dosage of liquid to be used (Fig 2). -
Page 16: Cleaning
Cleaning WARNING Do not clean any part of your appliance with abrasive cleaners, scouring agents, acids, chlorine based bleach or metal polish as they may cause damage. Removing and Cleaning the Dispenser Drawer & Compartments Note: It is advisable to clean the dispenser drawer regularly. -
Page 17: Troubleshooting
Troubleshooting... My appliance will not start... Is the appliance plugged in and switched ‘ON’? Is the socket OK? Try another appliance in the socket. Is the fuse in the appliance plug OK? If not, replace it. See ‘Electrical Supply’ section. Did you check the water supply was flowing before connecting the hoses to appliance inlet valves. -
Page 18: Hotpoint After Sales Service
Hotpoint product. If there is a technical problem with your Hotpoint appliance, call Hotpoint Service. If necessary we will arrange for an engineer to call. If the technical problem is not resolved under this Guarantee, Hotpoint will replace your appliance or, if you prefer, give you your money back. -
Page 19: Hotpoint Guarantee
Service Engineer (evidence will be required of date and place of purchase). All Hotpoint servicing is carried out by our own Service Organisation located throughout the United Kingdom and Republic of Ireland. We will be happy to deal with any problems which you may have. -
Page 20: Key Contacts
Republic of Ireland: 1850 502 200 For further product information 08701 50 60 70 All Hotpoint Services are offered as an extra benefit and do not affect your statutory rights. General Domestic Appliances Limited, Morley Way, Peterborough, PE2 9JB. Part No. 016/4377/99 - 01...
