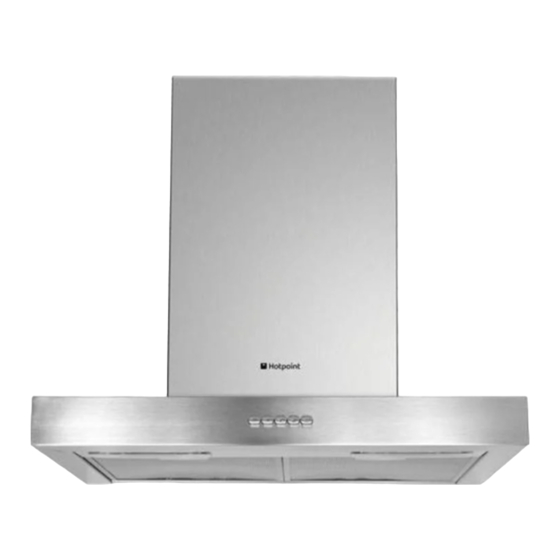

Hotpoint HD 93 X Instructions For Use Manual

Hotpoint HD 93 X Instructions For Use Manual

Hotpoint ventilation hood user manual

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD 93 X and is the answer not in the manual?

Questions and answers

Summary of Contents for Hotpoint HD 93 X

  • Page 1: Table Of Contents

    Instructions for use English HD 63 X HD 73 X HD 93 X Contents Installation, 10-11 Assembly Technical information, 12 Electrical connection Power cable Technical data Description, 13 Filtering version Ducting version Operation, 14 Controls Maintenance,15 Cleaning the hood Cleaning the grease filters...
  • Page 2: Installation

    Installation Assembly Before proceeding with the assembly operations, remove the grease filters so that the hood is easier to handle (for the instructions see the paragraph “Cleaning the grease filters” in the chapter on “Maintenance”). Fixing to the wall 1) Draw a line on the wall along the vertical axis of the hob.
  • Page 3 3) Ducting version: a) Connect the air vent of the hood to the air vent hole using a flexible hose of 15 cm diameter. Lock the flexible hose with hose clamps (hose and clamps not provided). b) Make the electrical connection of the hood by means of the power cable (refer to the paragraph “Electrical connection”).
  • Page 4: Technical Information

    Technical information Electrical connection Arrange the electrical power supply within the decorative flue dimensions. When making the electrical connections, check that the voltage values correspond to those indicated on the data plate inside the appliance itself. In case your appliance is not furnished with a non separating flexible cable and has no plug, or has not got any other device ensuring omnipolar disconnection from the electricity main, with a...
  • Page 5: Description

    Description The hood may be in the filtering or ducting version. Decide from the outset which type is to be installed. For better efficiency, we recommend installing the hood in the ducting version (if possible). Filtering version The hood aspirates air from the kitchen impregnated with fumes and smells, purifies it through the grease filters and the charcoal filter, and then circulates clean air back into the room.
  • Page 6: Operation

    Operation Controls LIGHTING Light button Turns the lights on/off. Motor button Activates/deactivates the motor. The motor is activated at the last speed set. Speed decrease button Repeatedly pressing the button will reduce the motor speed until reaching the minimum speed. MOTOR DECREASE INCREASE...
  • Page 7: Maintenance,15

    Maintenance Always switch off the electricity supply before carrying out any cleaning or servicing operations on the appliance. To avoid possible risks of fire always comply with the indicated instructions when cleaning grease filters and when removing grease deposits from the appliance.
  • Page 8: Precautions And Tips

    Precautions and tips General safety The distance between the supporting surface for the cooking vessels on the hob and the lower part of the hood must be at least 65 cm. If the instructions for installation for the hob specify a greater distance, this has to be taken into account.

This manual is also suitable for:

Hd 63 xHd 73 x
