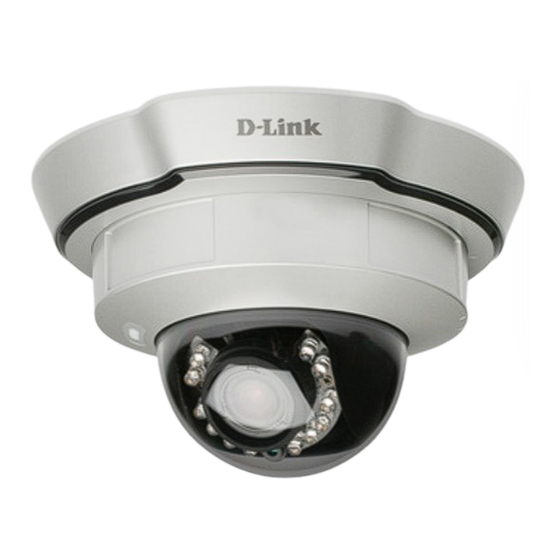

D-Link DCS-6111 Specifications

Day & night wdr dome network camera
Hide thumbs Also See for DCS-6111:

Advertisement

Quick Links

Product Highlights
• WDR VGA Progressive CMOS Sensor
• Built-in IR-Cut Removable (ICR) Filter for Day/Night Use
• 3-Axis Lens Adjustment for Ceiling and Wall
Mount Application
• Tamper-resistant Casing
• 4x Digital Zoom
4
• Up to 30 Frames Per Second
DCS-6111
Day & Night WDR Dome Network Camera
Features
• Simultaneous Dual-Stream Support
• Motion Detection Recording with E-mail Alert
• Built-in Samba Client
• Digital I/O Support for Sensors and Alarm
• Built-in 802.3af PoE
D-ViewCam™ Features
• Manage up to 32 Cameras at once
• Adjustable Image Size and Quality
• Custom Recording Schedules
• Event Notifications
• Upload a Floor Plan
• Flip & Mirror Image
Powerful Day & Night Surveillance
The D-Link® DCS-6111 Day & Night Camera with WDR Sensor is designed for professional
around-the-clock surveillance. It uses a Wide Dynamic Range (WDR) VGA Progressive CMOS
sensor for better performance under various lighting conditions, delivering exceptional
picture quality. The WDR provides the DCS-6111 the capability to capture high resolution,
detailed images in high contrast lighting conditions and significantly improves the quality
of real-time videos. The DCS-6111 is equipped with D-Link's System-on-Chip (SoC) products
to provide high quality video compression in MPEG-4 and Motion JPEG formats. It also
incorporates varifocal lens with IR LEDs to offer enhanced flexibility and enhanced security,
making it the ideal solution for 24/7 hour surveillance.
Wide Dynamic Range (WDR) Applications
The DCS-6111 is recommended for extreme high contrast environments. The Wide Dynamic
Range (WDR) function of the camera provides clear image seven in backlit scenes where
intensity of illumination can vary excessively. For example, when placed on the inside of the
room, the DCS-6111 will be able to see through the intense sunlight or coming in from the
windows.
Various Installation Methods
The DCS-6111 has a unique built-in three axis mechanism that can be drop-mounted from
the ceiling for an unobtrusive look, or mounted on a wall, all with the same housing design.
Combined with tamper-resistant casing, the DCS-6111 is a fixed dome solution that makes
monitoring discreet and protects against tampering.

Advertisement

loading

Summary of Contents for D-Link DCS-6111

  • Page 1 • Flip & Mirror Image intensity of illumination can vary excessively. For example, when placed on the inside of the room, the DCS-6111 will be able to see through the intense sunlight or coming in from the windows. Various Installation Methods The DCS-6111 has a unique built-in three axis mechanism that can be drop-mounted from the ceiling for an unobtrusive look, or mounted on a wall, all with the same housing design.
  • Page 2: Additional Features

    The DCS-6111 also comes MPEG-4 has smaller file sizes, making it more useful for extended recording peri- with a built-in Samba client for NAS so there is no need for a direct connection to ods or for use in low bandwidth networks.
  • Page 3 • Simultaneous profile support for web viewing, 3G mobile viewing¹, and video recording • MPEG-4/MJPEG dual format compression Networking Protocols • IPv4 • PPPoE • DHCP • NTP (D-Link) • ARP • RTP • DNS • UDP • TCP/IP • RTSP •...
  • Page 4: For More Information

    ©2011 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, D-Link logo, and the D-ViewCam™ logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and/or other countries. Other trademarks or registered trademarks are the property of their respective owners.
