Due to APU limitations, read the following guidelines before installing the memory in Dual Channel mode.
1.
Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.
2.
When enabling Dual Channel mode with two memory modules, it is recommended that memory of
the same capacity, brand, speed, and chips be used for optimum performance.
1-5
Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
• Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.
• Always turn off the computer and unplug the power cord from the power outlet before installing an
expansion card to prevent hardware damage.
1-6 Setup of the AMD Dual Graphics Configuration
A. System Requirements
- AMD A series processor
- Windows 8.1/8/7 operating system
- An AMD Dual Graphics technology-supported motherboard (with the BIOS updated to the latest version)
and correct driver (make sure the onboard graphics driver version is Rev. 8.982 or above)
- An AMD graphics card that supports AMD Dual Graphics technology (for more details, please visit AMD's
official website) and correct driver (For an FM2+ APU, please use an AMD R7 200 series graphics card;
for an FM2 APU, please use an AMD Radeon
B. Installing the Graphics Cards and Configuring BIOS Setup
Step 1:
Observe the steps in "1-5 Installing an Expansion Card" and install an AMD Dual Graphics technology-supported
graphics card on the PCIEX16 slot. Plug the monitor cable into the graphics card and start up your computer.
Step 2:
Enter BIOS Setup to set the following items under the Peripherals\GFX Configuration menu:
- Set Integrated Graphics to Force.
- Set UMA Frame Buffer Size to 512M or above.
Save the settings and exit BIOS Setup. Restart your computer.
C. Configuring the Graphics Card Driver
After installing the graphics card driver in the operating system, go to the AMD VISION Engine Control Center.
Browse to Performance\AMD Radeon
check box is selected.
(Note)
Make sure the drivers for the Chipset, onboard graphics, and external graphics card are properly
installed.
1-7

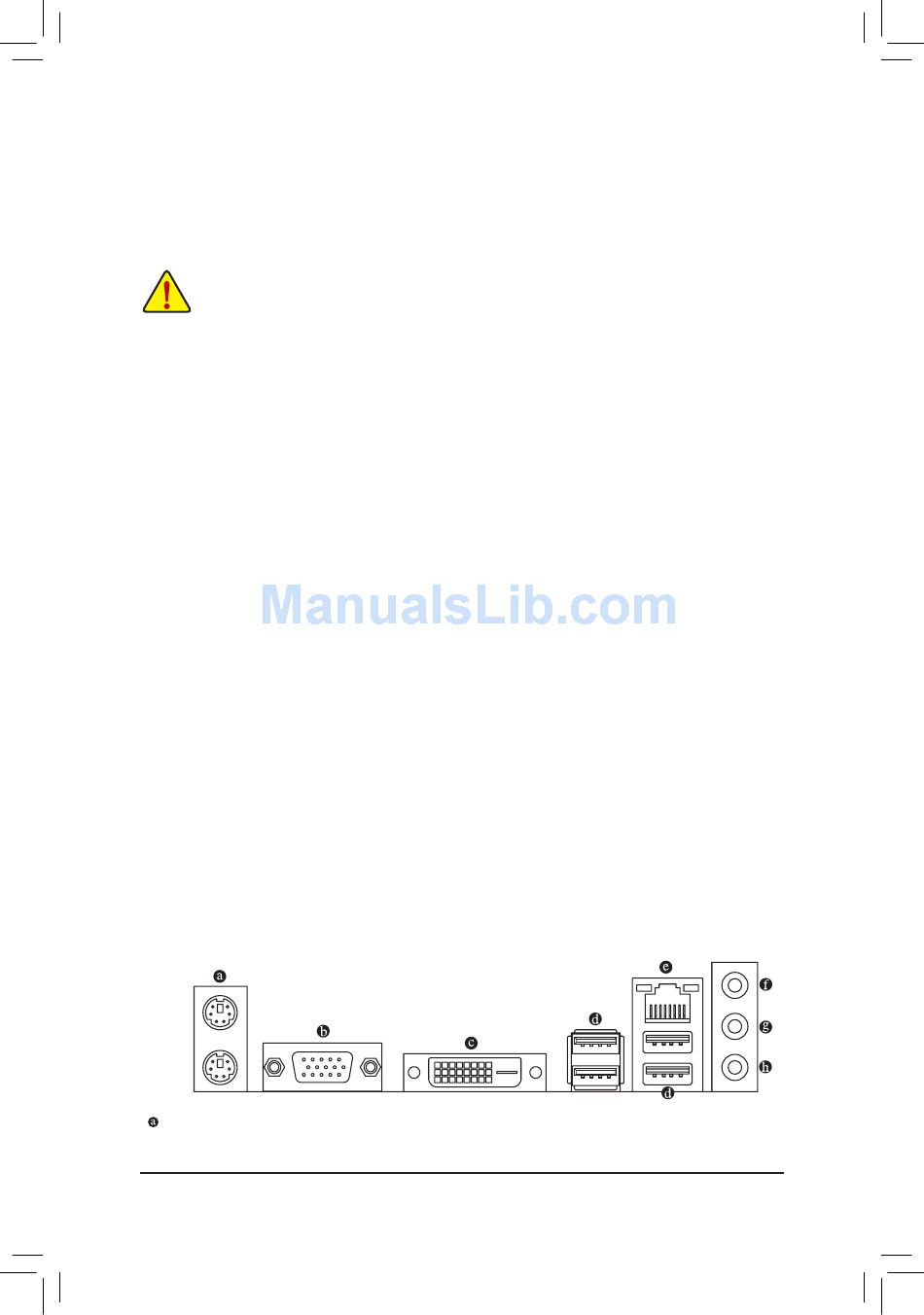

Back Panel Connectors
PS/2 Keyboard and PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard.
HD 6000 graphics card.)
™
Dual Graphics and ensure the Enable AMD Radeon Dual Graphics
™
- 10 -
