Revo 18.5" wide LED monitor User Manual

18.5-inch wide led monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

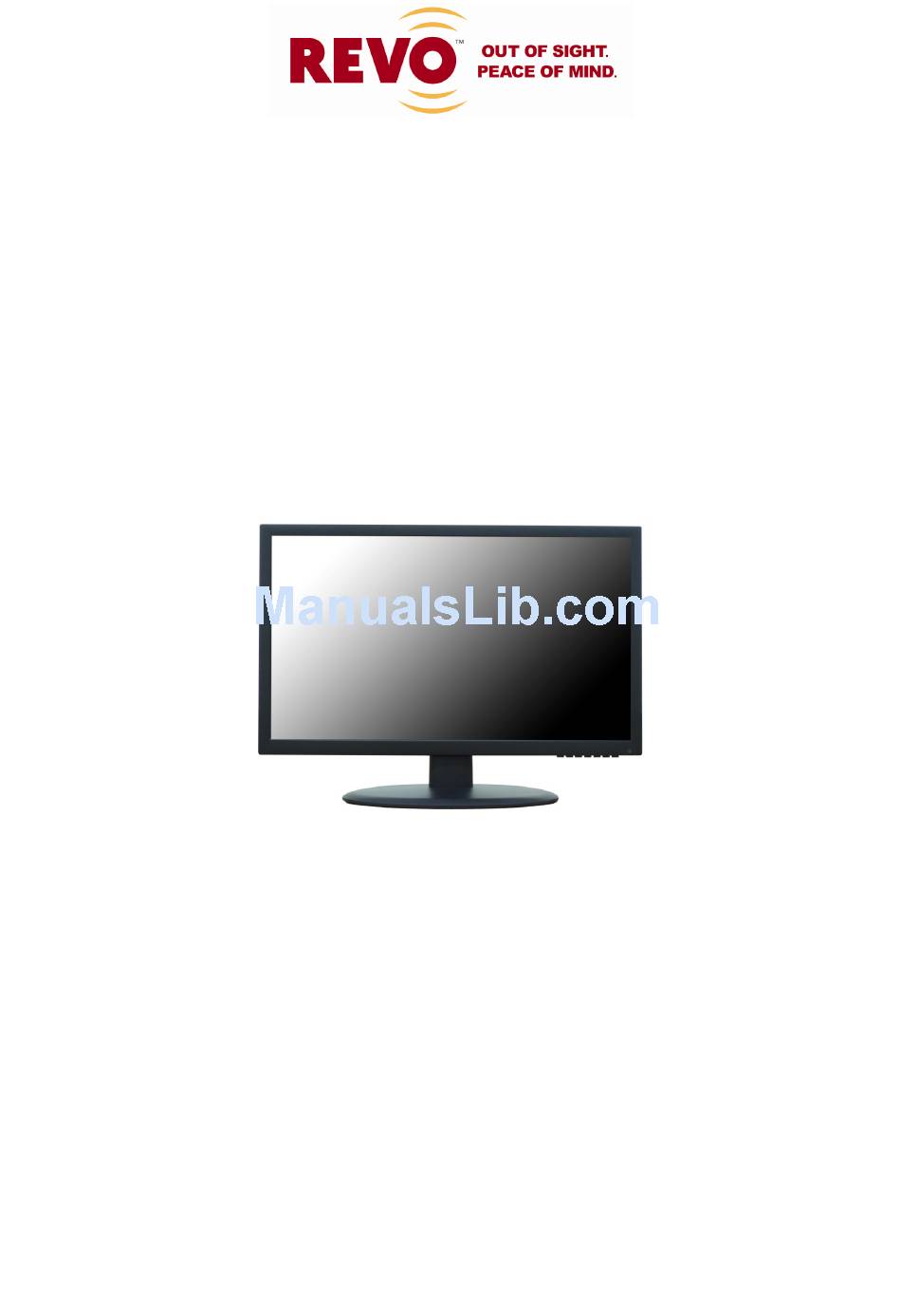

18.5-INCH WIDE
LED MONITOR
USER MANUAL
Please read this manual thoroughly before use, and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 18.5" wide LED monitor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Revo 18.5" wide LED monitor

Summary of Contents for Revo 18.5" wide LED monitor

  • Page 1 18.5-INCH WIDE LED MONITOR USER MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
  • Page 3 SAFETY INSTRUCTIONS ………………………………………………………….….. 2 ~ 3 CAUTIONS ……………………………………………………………......FCC RF INTERFERENCE STATEMENT ……………………………....... CONNECTING WITH EXTERNAL EQUIPMENT …………………………………… INSTALLATION ………………………………………………………………………….. CONTROLS AND FUNCTIONS ……………………………………………………….. 8 ~ 15 MOUNTING GUIDE …………………………………………………………………….. D-SUB CONNECTOR PIN ASSIGNMENTS ………………………………………… POWER MANAGEMENT ……………………………………………………………… SPECIFICATIONS ……………………………………………………………………… TROUBLE SHOOTING GUIDE …………………………………………………..

  • Page 4: Important Safety Instructions

    Important Safety Instructions 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this monitor near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 5 - The monitor shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus. Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation. monitor “WARNING – To reduce the risk of fire or electric shock, do not expose the to rain or moisture.”...
  • Page 6 ▶ NEVER REMOVE THE BACK COVER Removal of the back cover should be carried out only by qualified personnel. DO NOT USE IN HOSTILE ENVIRONMENTS ▶ To prevent shock or fire hazard, do not expose the unit to rain or moisture. This unit is designed to be used in the office or home.

  • Page 7: Doc Compliance Notice

    NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 8: Positioning Your Display

    Before setting up the monitor, ensure that the power to the monitor and other attached devices are turned off. ※ Notice: Stand & screws are optional. A. Connecting the stand 1. Place the monitor with its front facing downward on a soft cloth. 2.

  • Page 9: Rear Connection

    1. Rear Connection 1. 3.5mm AUDIO OUT. 2. 3.5mm AUDIO IN. 3. VGA. 4. DC 12V. - 7 -...
  • Page 10 2. Bottom Key Control 1. SELECT Selects an option in the OSD. (On Screen Display) 2. MENU Activates or exits the OSD. Moves previous menu or status in the OSD. 3, 4. AUTO/▼ & ▲ Moves another option in the OSD. The ▲...
  • Page 11 OSD (On Screen Display) Menu Description All picture, sound settings and setup for the monitor can be adjusted in the OSD menu. To adjust the OSD screen: 1. Press the MENU button to enter the OSD menu. 2. Press the ▲/▼ buttons to select the desired option. The selected option is yellow color. 3.

  • Page 12: Image Setting

    2. Image Setting Option Function Value Clock Adjusts the vertical noise of screen image. 0 ~ 100. Phase Adjusts the number of horizontal picture elements. 0 ~ 60. Gamma Adjusts the gamma of the picture. 0 ~ 3. Sharpness Adjusts sharpness of the picture. 0 ~ 4.
  • Page 13 3. Position Option Function Value H. Position Adjusts the horizontally picture position. 0 ~ 100. V. Position Adjusts the vertically picture position. 0 ~ 100. Back Returns to previous menu. - 11 -...

  • Page 14: Osd (On-Screen Display) Menu

    4. OSD (On Screen Display) Menu Option Function Value OSD H. Pos. Moves the horizontally OSD position. 0 ~ 100. OSD V. Pos. Moves the vertically OSD position. 0 ~ 100. OSD Timer Adjusts the display time of OSD. 5 ~ 20. Back Returns to previous menu.
  • Page 15 5. Language Option Function Value Language Sets the language of OSD menu. English, Korean, French, German & Spanish. - 13 -...
  • Page 16 6. Misc. Option Function Value Shows the signal source. Signal Source Converts the aspect ratio. Fit to screen 16:9 & 4:3 Volume Adjust the level of audio volume. 0 ~ 100. Reset Resets the monitor settings to the factory default. Back Returns to previous menu.
  • Page 17 7. Exit Option Function Exit Exits the OSD menu. - 15 -...
  • Page 18 Wall mounting (Optional) The LCD monitor is suitable for wall mounting by using the VESA 100 standard wall mount (not included). M4x10 screws ※ Attention! You must use four M4x10 screws to assemble this monitor and the wall mount bracket. - 16 -...
  • Page 19 ▶ in Assignments Pin 1 RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND GROUND SDA(for DDC) GROUND H-SYNC.(or H+V SYNC.) RED GROUND V-SYNC. GREEN GROUND SCL(for DDC) BLUE GROUND D-SUB Accessories ▶ 1. Power Adaptor (Power Cord Included). 2.
  • Page 20 This monitor features a power management system to “power down” upon receipt of the VESA DPMS(The display power management signaling) from a VESA DPMS video card. The VESA DPMS-compliant video card performs this signaling system through not sending horizontal, vertical, or sync signal. This monitor enters an appropriate mode through identifying each of the three modes of the signaling system.
  • Page 21 18.5” 18.5˝ Diagonal AM-TFT(Active-Matrix) Pixel pitch(㎛): 300(H) x 300(V) Brightness: 250cd/㎡(Typical) LCD Type Contrast ratio: 1000:1(Typical) Viewing angle: 170°/160°(H/V) Response time: 5ms(Typ., on/off) Resolution (H x V) 1366X768@60Hz Frequency Horizontal: 31~64kHz, Vertical: 56~75Hz VGA(RGB-PC) Input Signal Audio in & out Active Display Area (H x V) 409.8mm x 230.4mm Packing Dimensions (W x H x D)

  • Page 22: Weee Symbols

    WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
  • Page 23 MEMO...
  • Page 24 MEMO...
  • Page 25 MEMO...
  • Page 26 MEMO...
  • Page 28 P/N: L39ME0230 Rev.0...
