Broil King Independence C3-1 Owner's Manual

Charcoal grill
Hide thumbs Also See for Independence C3-1:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual

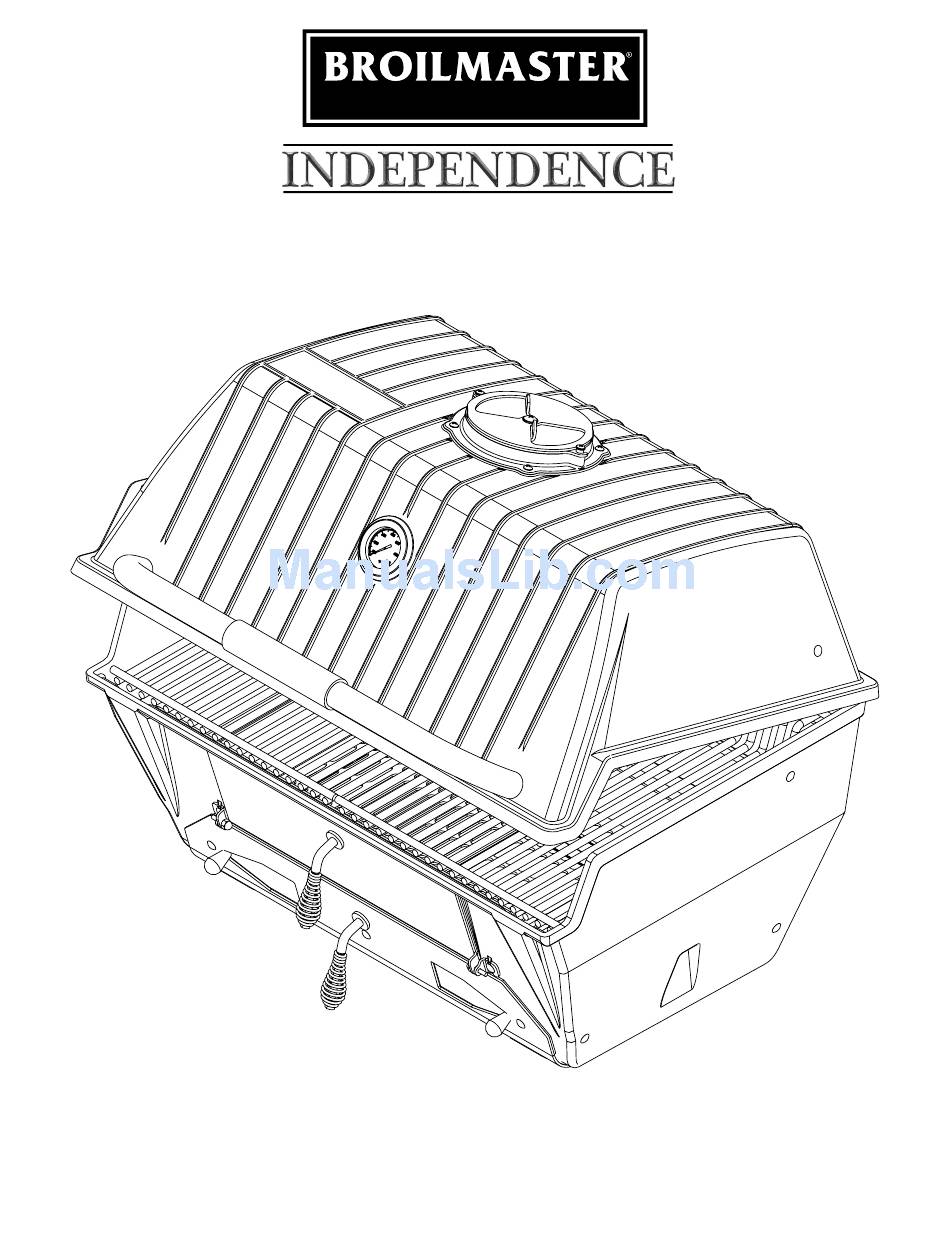

PR EM IU M GR ILL S
C H A R C O A L G R I L L
C H A R C O A L G R I L L
Owner's Manual For Models:
C3-1
Page 1

Advertisement

Table of Contents
loading

Related Manuals for Broil King Independence C3-1

Summary of Contents for Broil King Independence C3-1

  • Page 1 PR EM IU M GR ILL S C H A R C O A L G R I L L C H A R C O A L G R I L L Owner’s Manual For Models: C3-1 Page 1...

  • Page 2: Safety Information

    Always follow the manufacturer’s can cause personal injury or property damage. Never instructions. Never use lighter fluid in your Broilmaster grill – modify the grill. Use only parts and accessories produced this will void your warranty. Do not use gasoline, kerosene or by Broilmaster.
  • Page 3 At Broilmaster, we continually strive to enhance the performance and quality of our products for your grilling enjoyment. Every effort will be made to ensure that Broilmaster continues to be your choice as the Premium grill of the future. Whether you are at the lake or in the privacy of your own backyard, the Independence Charcoal Grill performs far beyond the ordinary and is designed to provide your family with years of outdoor cooking pleasure.

  • Page 4: Parts Diagram

    PARTS DIAGRAM Order repair parts through your local Broilmaster dealer. To locate a dealer in your area visit www.broil- master.com. Please provide the following information when placing a repair part order: Model Number, Purchase Date, Serial Number, Part Name, Part Number, and Quantity of parts needed. See Page 7 for parts ordering information.

  • Page 5: Parts List

    PARTS LIST INDEX NUMBER PART NUMBER DESCRIPTION B101882 GRILL BODY TOP B102114 TOP VENT ASSEMBLY B102112 SPARK ARRESTOR, LID DPP119 HEAT INDICATOR B070486 HANDLE B101282 COOKING GRID B073097 FOAM GRIP B101875 CHARCOAL GRATE B101892 CHARCOAL TRAY FRAME B102111 REAR SUPPORT BRACKET B057804 HINGE PIN B057805...

  • Page 6: Hardware Package

    HARDWARE PACKAGE B073097 FOAM GRIP (QTY. 1) B100130 10-24 x 3/8 SS B102117 10-24 x 1-1/4 SS TRUSS-HEAD SCREW (QTY. 4) PAN-HEAD SCREW (QTY.2) B662325 SPACER (QTY. 1 ) B100563 10-16 x 3/4 SS PAN-HEAD SCREW (QTY. 4) B073967 10-24 SS B101770 10-24 x ½...

  • Page 7: Master Parts Distributor List

    MASTER PARTS DISTRIBUTOR LIST To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort.com. To provide warranty service, your dealer will need your name and address, model number, purchase date and serial number, and the nature of the problem with the unit.

  • Page 8: Warranty Terms

    WARRANTY TERMS Empire Comfort Systems Inc. warranties this Broilmaster premium grill to be free from defects at the time of purchase and for the periods specified below. Broilmaster Premium Grills must be installed by a qualified technician and must be maintained and operated safely, in accordance with the instructions in the owner’s manual.

  • Page 9: Before You Begin

    To ease installation, remove the grill body top from the grill ter grill head. body bottom by removing the two hinge pins and clips. See Figure 1. Refer to the Broilmaster Cart, Base, and Post instructions provided with each accessory for assembly, installation, and mounting pro- cedures. Before You Begin All Broilmaster grills require some assembly and installation.
  • Page 10 GRILL ASSEMBLY Rear Support Bracket Adjusting Door Latches Align the four holes and attach the rear support bracket to The doors should be checked for a tight fit when doors are the back inside of the lower grill body with four #10-24 x 3/8” latched.
  • Page 11 GRILL ASSEMBLY Attach vent stop using one #10-24 x 1-1/4 pan-head screw Upper Spark Arrester Plate and spacer on the right side of the top vent opening. Tighten Secure the upper spark arrester plate to the inside of the with #10-24 lock nut from underside of grill body top. Use grill body top using four #10-16 x 3/4”...
  • Page 12 GRILL ASSEMBLY Charcoal Frame and Grates Reinstall Grill Body Top to Grill Body Bottom Place the charcoal grate frame in the lower grill body bottom Secure the grill body top to the grill body bottom by replacing on the lower casting ledge front and back. See Figure 14. the two hinge pins and clips.

  • Page 13: Operation

    IMPORTANT! With the lid open and the charcoal piled in tray, use natural Initial Use: The first time you use your Broilmaster Charcoal charcoal starter cubes, a charcoal chimney start or an electric Grill, keep the cooking temperature between 350 to 400 degrees charcoal starter.

  • Page 14: Maintenance And Cleaning

    Clean regularly with a solution of mild detergent and warm water. grees maximum. This will season and set the gasket adhesive Touch up paint is available from your dealer. Broilmaster protec- properly. Let burn for at least 60 minutes. tive covers are recommended. Stainless steel can be cleaned with a spray on stainless steel cleaner found in most hardware stores or home center.

  • Page 15: Cooking Tips

    COOKING TIPS Cook Food To Proper Temperatures Cooking food safely requires that you raise the internal temperature of the meat high enough and for a long enough period of time to kill any food-borne bacteria that may cause illnesses. Color is not the best indicator that food is safe to eat. Use a high-quality probe thermometer to be sure your food is properly cooked. Place the tip of an instant-read thermometer into the center of the thickest part of the food but at least 1/2 inch deep.
  • Page 16 Your Broilmaster Premium Grill is identified by model number and serial number. This information is provided on a product identification label located on the grill’s control panel. For your convenience, complete this section for future reference when contact- ing your dealer.
