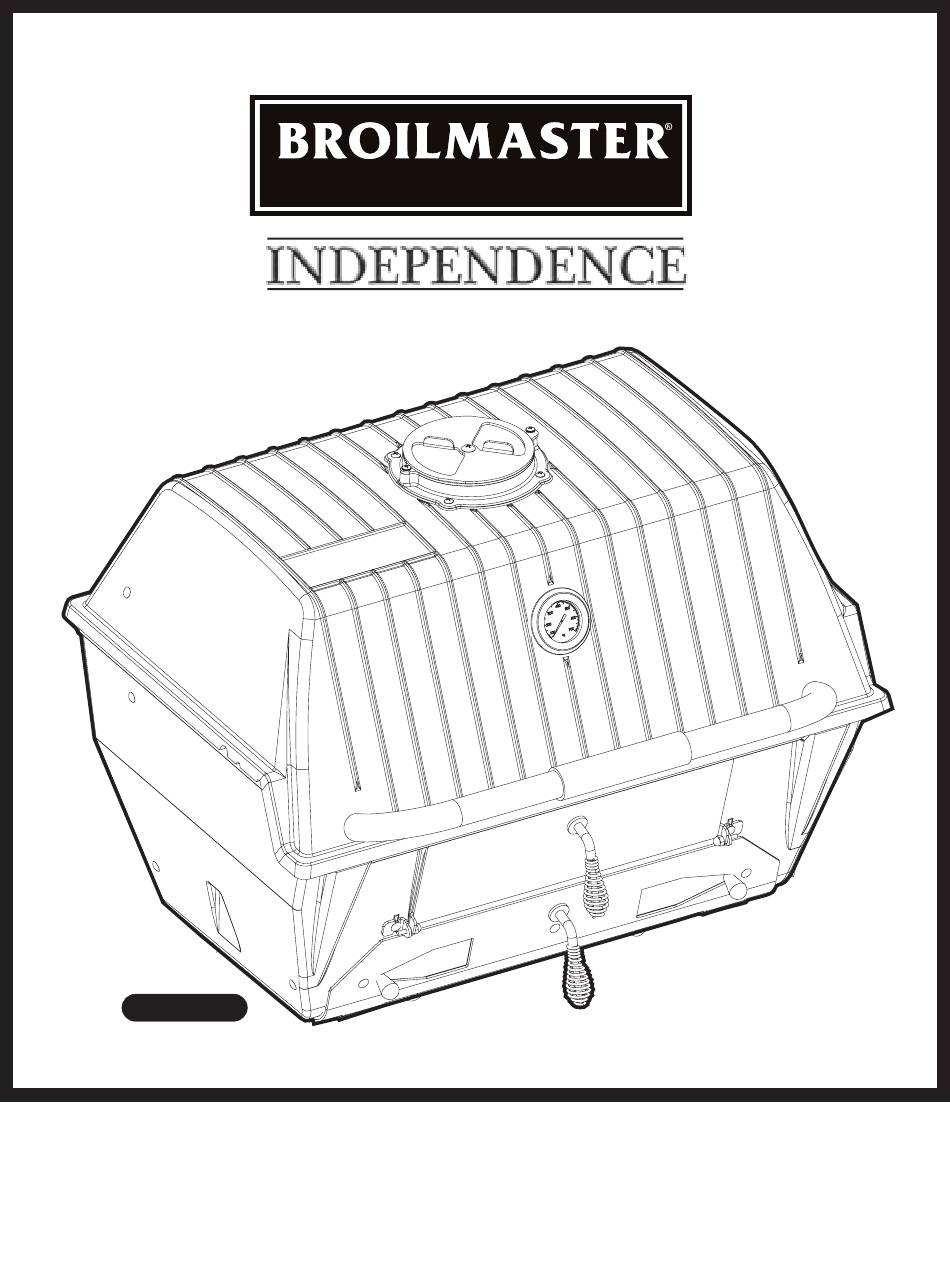

- Page 1 P R E M I U M G R I LL S C H A R C O A L G R I L L C H A R C O A L G R I L L SERIES C3-1 C3 GRILL HEAD...
- Page 2 IMPORTANT INFORMATION IMPORTANT his manual should be read thoroughly by the installer and by anyone who will use or maintain the grill. Installer - Write the model number, serial number, and date of installation in the manual. If available, attach a copy of the receipt. Leave this manual with the grill owner. Grill Owner - Read and retain this manual.
- Page 3 Thank you for purchasing a Independence Charcoal Grill. Welcome to the beauty, durability, and prestige of an Independence Charcoal Grill by Broilmaster. With award-winning excellence built into every feature and durability that surpasses other Premium charcoal grills, Broilmaster has manufactured the ultimate grills for discriminating outdoor chefs for over 30 years. At Broilmaster, we continually strive to enhance the performance and quality of our products for your grilling enjoyment.
-
Page 4: Table Of Contents
TABLE OF CONTENTS You have chosen the finest grill for your outdoor cooking pleasure. Please take time to read this entire manual before assembling your Premium Broilmaster Grill. ASSEMBLY INSTRUCTIONS ..................... 5 C3 SERIES PARTS DIAGRAM ....................6 GRILL HEAD HARDWARE PACK - B102165 ................7 UNPACK AND REMOVE LID ..................... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before You Begin Before You Begin Before You Begin Before You Begin Before You Begin Before You Begin Compare the parts in the box to the parts list provided in this manual. If any are missing, contact your Compare the parts in the box to the parts list provided in this manual. -
Page 6: C3 Series Parts Diagram
C3 SERIES PARTS DIAGRAM DPP155 B101882 (1) GRILL BODY TOP B073097 (1) FOAM GRIP B102114 (1) B102492 (1) TOP VENT ASSEMBLY LID HANDLE (W/SCREWS) B101865(1) VENT TOP DPA111 (1) B069756 (1) B069756 (1) COOKING GRID (2) PIECES HOSE & LPS REGULATOR VENT BASE B102112 (1) SPARK ARRESTOR... -
Page 7: Grill Head Hardware Pack - B102165
GRILL HEAD HARDWARE PACK - B102165 PHILLIPS PAN HEAD SCREW, PHILLIPS PAN HEAD SCREW, PHILLIPS PAN HEAD SCREW, PHILLIPS PAN HEAD SCREW, SS,10-24 X 1-1/4 SS,10-24 X 1 SS,10-16 X 3/4 SS,1/4-20 X 3/4 B102117 B073978 B100563 B072217 HEX NUT, HEX LOCKNUT, KEPS NUT, SPACER... -
Page 8: Unpack And Remove Lid
UNPACK AND REMOVE LID REMOVING LID To ease assembly, remove Grill Lid. Remove the two Pins and Clips at the rear of the Grill Lid and set aside. After Pins and Lid have been Prior to assembling Grill Head removed, remove the contents from assemble Cart or Post mounting first. -
Page 9: Relocate Carriage Bolts (Post Install Only)
RELOCATE CARRIAGE BOLTS (POST INSTALL ONLY) B102097-3-0119 Page 9... -
Page 10: Rear Support Bracket Placement
REAR SUPPORT BRACKET PLACEMENT PHILLIPS TRUSS HEAD SCREW, SS, 10-24 X 3/8 B100130 (4) KEPS NUT, SS, 10-24 B073967(4) 3/8” Align the four holes and attach the Rear Support Bracket to the back inside of the lower grill body. Note: If Side Shelf Accessory was purchased install at this time. -
Page 11: Adjusting Door Latches
ADJUSTING DOOR LATCHES 1/8” The doors should be checked for a tight fit when doors are latched. If the door latches need to be adjusted loosen the set screw on the latch pawl with a Allen wrench. Slide the pawl in or out on the shaft to adjust for the proper tension when the door is closed. -
Page 12: Attach Top Smoke Vent Assembly
ATTACH TOP SMOKE VENT ASSEMBLY PHILLIPS PAN HEAD SCREW, SS,1/4-20 X 3/4 B072217(1) HEX NUT, SS, 1/4-20 B076331 (2) 7/16” Attach the Vent Base and Vent Top with one truss head screw and two hex nuts. Hand tighten first nut against vent base. -
Page 13: Attach Top Smoke Vent Assembly
ATTACH TOP SMOKE VENT ASSEMBLY PHILLIPS PAN HEAD SCREW, SS,10-24 X 1-1/4 B102117(2) SPACER B662325(1) 3/8” HEX LOCKNUT, SS,10-24 R4021(2) Attach vent stop using one pan-head screw and spacer on the right side of the top vent opening. Tighten with lock nut from underside of grill body top. -
Page 14: Attach Upper Spark Arrester Plate
ATTACH UPPER SPARK ARRESTER PLATE PHILLIPS PAN HEAD SCREW, SS,10-16 X 3/4 B100563(4) Secure the upper spark arrester plate to the inside of the grill body top using four screws. Page 14 B102097-3-0119... -
Page 15: Handle Installation
HANDLE INSTALLATION Handle is shipped with screws installed. Remove the screws, align handle with top casting, and re-install screws. Tip: For ease of installation, lightly lubricate the inside of the Foam Grip with Liquid Soap before twisting it on to Handle. -
Page 16: Reinstall Lid
REINSTALL LID HINGE PIN, (FROM PREVIOUS STEPS) B057804 (2) COTTER PIN, (FROM PREVIOUS STEPS) B057805 (2) Page 16 B102097-3-0119... -
Page 17: Install Charcoal Grates
INSTALL CHARCOAL GRATES Place the Charcoal Grate Frame in the lower Grill Body bottom on the lower casting ledge front and back. Set the Charcoal Grates into place in the bottom of the charcoal grate frame. B102097-3-0119 Page 17... -
Page 18: Install Cooking Grids
INSTALL COOKING GRIDS MEDIUM HIGH COOKING GRID POSITION COOKING GRID POSITION COOKING GRID POSITION Grates can be positioned at three different cooking levels. Page 18 B102097-3-0119... -
Page 19: Install Ash Pan
INSTALL ASH PAN Open the lower access door and slide the ash pan into place and close and latch the door. B102097-3-0119 Page 19... -
Page 20: Completed Assembly
COMPLETED ASSEMBLY Thank you for purchasing a Independence Charcoal Grill and we hope you enjoy years of great meals prepared on your Broilmaster. Please feel free to visit the Broilmaster Facebook page and share photos of your Broilmaster grill. Thank You! Page 20 B102097-3-0119... -
Page 21: Owner's Manual For C3 Grills
OWNER’S MANUAL FOR C3 GRILLS OPERATION - CHARCOAL GRILLS Grill Location WARNING This grill is designed for outdoor use only. o not install or operate this grill where gasoline or other flammable materials are used or stored. Failure to comply Never operate your grill in any building, garage, or other with this warning could result in explosion or fire causing enclosed area. - Page 22 OPERATION - CHARCOAL GRILLS Lighting After coals have been lit for about seven to ten minutes, or when several coals are burning, close the lid and, with Follow the instructions below to build a fire. Use only the dial open fully, swing open the smoke vent on top full high-quality charcoal –...
-
Page 23: Maintenance
MAINTENANCE Cleaning the Grill Heat Indicator Calibration The heat indicator can be calibrated if needed. Remove the heat indicator from the grill and place the probe end in a pot of boiling water. It should read 212 degrees. Set the heat indica- WARNING tor by turning the screw in the end of the stem slightly until it ever clean a hot grill. -
Page 24: Cooking Tips
COOKING TIPS Cook Food To Proper Temperatures Cooking food safely requires that you raise the internal temperature of the meat high enough and for a long enough period of time to kill any food-borne bacteria that may cause illnesses. Color is not the best indicator that food is safe to eat. Use a high-quality probe thermometer to be sure your food is properly cooked. -
Page 25: Important Safety Information
IMPORTANT SAFETY INFORMATION Be sure the grill is cool before using any type of aerosol cleaner on or around the grill. The chemical that produces the spraying action could, in the presence of heat, ignite or cause metal parts to corrode. -
Page 26: Important Safety Information
IMPORTANT SAFETY INFORMATION Practice Safe Grilling Do not wear loose fitting clothing or readily flammable clothing (such as synthetics) around the grill. Never let clothing, pot holders, or other flammable materials come in contact with or too close to any grate, burner or hot surface. Fabric may ignite and result in personal injury. Use only dry pot holders. -
Page 27: Warranty Terms
WARRANTY TERMS Empire Comfort Systems Inc. warranties this Broilmaster Premium Grill to be free from defects at the time of pur- chase and for the periods specified below. Broilmaster Premium Grills must be installed by a qualified technician and must be maintained and operated safely, in accordance with the instructions in the owner’s manual. This war- ranty applies to the original purchaser only and is not transferable. -
Page 28: Grill Maintenance History
GRILL MAINTENANCE HISTORY Date Maintenance Performed Page 28 B102097-3-0119... - Page 29 GRILL MAINTENANCE HISTORY Date Maintenance Performed B102097-3-0119 Page 29...
-
Page 30: Grill Maintenance History
GRILL MAINTENANCE HISTORY Date Maintenance Performed Page 30 B102097-3-0119... -
Page 31: Master Parts Distributor List
MASTER PARTS DISTRIBUTOR LIST To order parts under warranty, please contact your local Broilmaster dealer. See the dealer locator at www.broilmaster.com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem. - Page 32 PR EM IU M GR ILL S BROILMASTER A Division of Empire Comfort Systems, Inc. Belleville, Illinois .broilmaster.com isit our web site at www If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer.
