Related Manuals for Oster OSDR325B1
Summary of Contents for Oster OSDR325B1

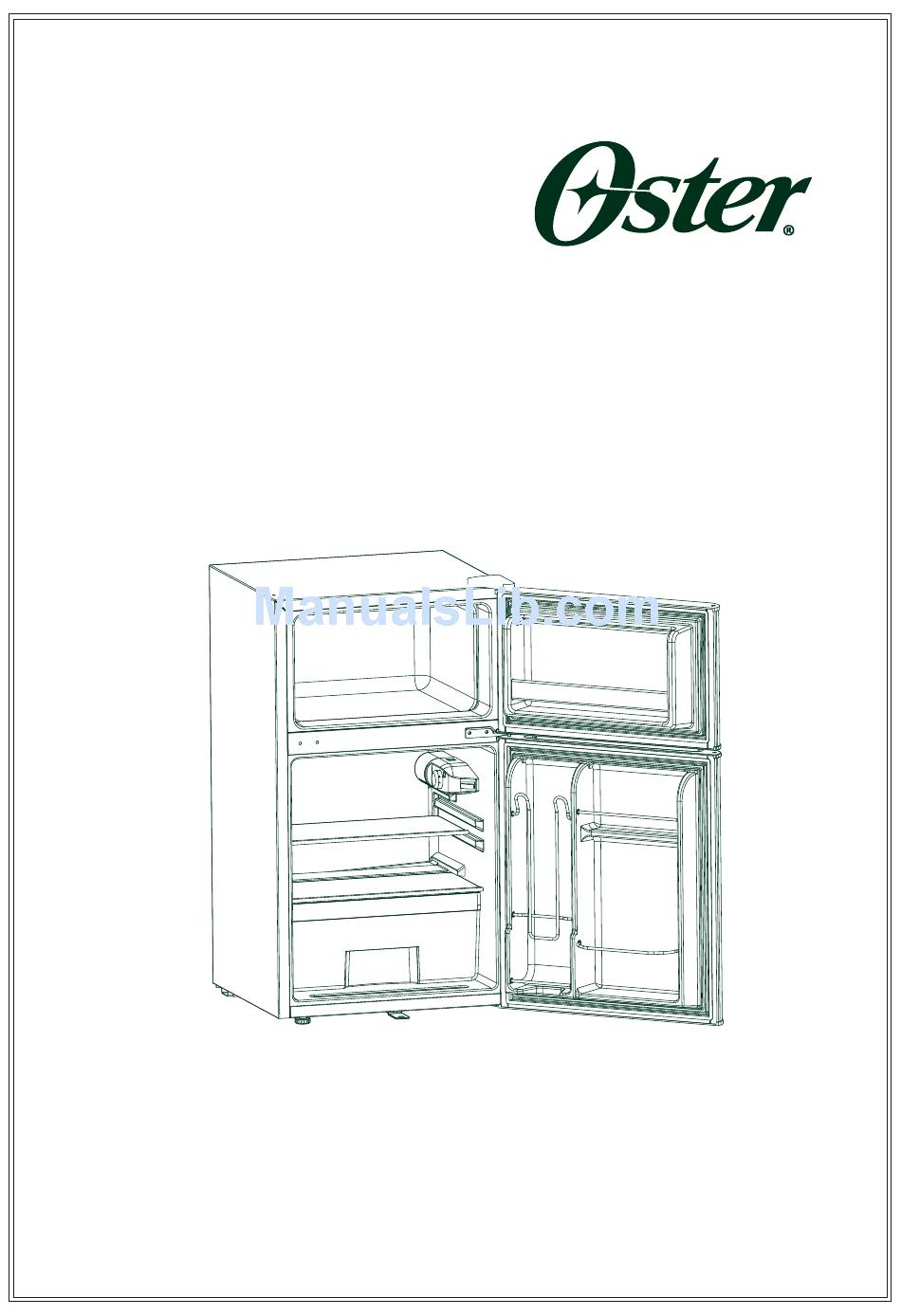

- Page 1 3.25 CU. FT. REFRIGERATOR INSTRUCTION MANUAL Model No.: OSDR325B1 To ensure proper use of this appliance and your safety, please read the following instructions completely before operating this appliance.
-
Page 2: Table Of Contents
TABLE OF CONTENTS NAMES OF THE PARTS................2 SPECIFICATIONS..................2 IMPORTANT SAFETY INSTRUCTIONS............3 INSTALLATION INSTRUCTIONS BEFORE USING YOUR REFRIGERATOR..........3 INSTALLING YOUR REFRIGERATOR........... 3 ELECTRICAL CONNECTION..............4 OPERATING YOUR REFRIGERATOR TEMPERATURE CONTROL..............5 THE FREEZER COMPARTMENT............5 WHEN TO DEFROST................5 HOW TO DEFROST................ -
Page 3: Names Of The Parts
(7) Leveling Leg : Never touch the interior of the Freezer Section or frozen foods in the WARNING compartment with wet hands as this could result in frostbite. SPECIFICATIONS - MODEL NO.: OSDR325B1 PRODUCT DESCRIPTION Oster 2 Door Refrigerator MODEL NO. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of re, electrical shock, or injury when using your refrigerator, WARNING follow these basic precautions: • Read all instructions before using the refrigerator. • DANGER or WARNING: Risk of child entrapment. • To avoid the possibility of child entrapment, please take the following precautions before throwing out the refrigerator. -
Page 5: Electrical Connection
Electrical Connection WARNING Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center. This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is equipped with a three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of electrical shock. -
Page 6: Operating Your Refrigerator
OPERATING YOUR REFRIGERATOR Temperature Control • Your refrigerator has one control for regulating the temperature. The temperature control is located on the top TEMPERATURE center of the refrigerator compartment. CONTROL • The rst time you turn the unit on, adjust 7 IS COLDEST 15W MAX the temperature control knob to “7”... -
Page 7: Changing The Reversible Door
CHANGING THE REVERSIBLE DOOR CAUTION: To avoid personal injury to yourself and/or property, we recommend someone assist you during the door reversal process. • Remove the top hinge cover. (See Fig. 1) • Using Phillips Head Screwdriver, loosen and remove the screws holding the top hinge in place. -
Page 8: Light Bulb Replacement
• Insert 2 screws and tighten. • Place washers on the center hinge bracket pin and align the freezer door holes and insert into pin. • Replace screws on the top hinge cover, align door and tighten screws. • Replace top hinge cover. Door Axis Hole Plugs Hole Cover... -
Page 9: Care And Maintenance
CARE AND MAINTENANCE Cleaning Your Refrigerator • Upon installation of your new appliance, it is recommended that it be cleaned thoroughly. • Turn o the refrigerator rst and then unplug the unit from the wall outlet. • Remove all food content. •... -
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service. Refrigerator does not operate. - Not plugged in. - The circuit breaker tripped or a blown fuse. - Page 11 refrigerator by putting wood or metal shims under part of the refrigerator. The refrigerator is touching the wall. Re-level the refrigerator and move it from the wall. See “Installation Instructions”. Moisture forms on inside refrigerator walls. - Weather is hot and humid, which increases internal rate of frost build-up.
-
Page 12: Refrigerator Warranty
MC Appliance Corporation. Model Parts Labor Compressor (Part Only) Type of Service OSDR325B1 One-Year One-Year Five-Years Carry In For Service or Assistance, please call 877-856-0202. Or visit us on the web at www.mcappliance.com to request warranty service or order parts. - Page 13 © 201 unbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved. Oster is a registered trademark of Sunbeam Products, Inc. used under license. Distributed by MC Appliance Corporation, 777 Mark Street, Wood Dale, IL 60191 MCP042712 For service, support and warranty information, visit www.mcappliance.com or in the U.S. call 877-856-0202.
