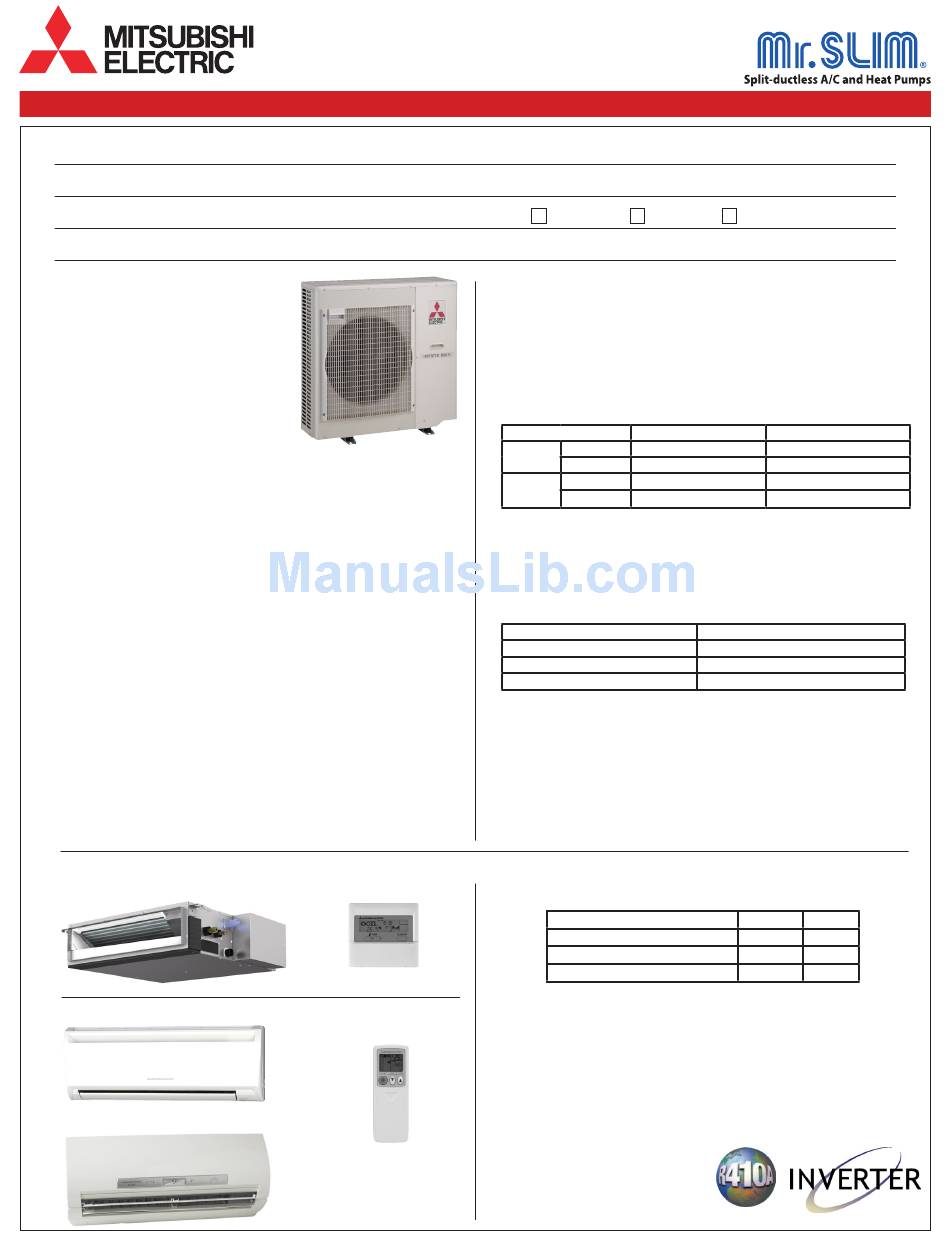

Mitsubishi Electric MXZ-3A30NA Specifications

SubMITTal DaTa: MXZ-3a30Na
Job Name:
Purchaser:
Submitted to:
Unit Designation:
GENERAL FEAtuREs
• Compact side discharge
outdoor unit
• Wireless or wired remote
controller, depending on the
indoor units used
• Quiet operation—both indoor
and outdoor units
• Automatic fan speed control
• Auto restart following a power
outage
• Self-check function—integrated
diagnostics
• Advanced microprocessor control
• Limited warranty: one year on parts and
defects and six years on compressor
OPtIONAL OutDOOR uNIt AccEssORy
• Air Outlet Guide (MAC-855SG)
cooling*
Rated Capacity (Non-ducted/Ducted) . . . 28,400 Btu/h / 27,400 Btu/h
Minimum Capacity (Non-ducted/Ducted) . . 12,600 Btu/h / 12,600 Btu/h
Total Input (Non-ducted/Ducted) . . . . . . . . . . . . . . 3,250 W / 3,300 W
Heating at 47°F*
Rated Capacity (Non-ducted/Ducted) . . . 28,600 Btu/h / 27,600 Btu/h
Minimum Capacity (Non-ducted/Ducted) . . 11,400 Btu/h / 11,400 Btu/h
Total Input (Non-ducted/Ducted) . . . . . . . . . . . . . . 2,180 W / 2,220 W
Heating at 17°F*
Rated Capacity (Non-ducted/Ducted) . . . 16,000 Btu/h / 15,100 Btu/h
Total Input (Non-ducted/Ducted) . . . . . . . . . . . . . . 1,690 W / 1,590 W
* Rating Conditions (Cooling) - Indoor: 80ºF (27ºC) DB / 67ºF (19ºC) WB.
Outdoor: 95ºF (35ºC) DB / 75ºF (24ºC) WB.
(Heating) - Indoor: 70ºF (21ºC) DB / 60ºF (16ºC) WB. Outdoor: 47ºF (8ºC) DB /
43ºF (6ºC) WB.
(Heating at 17ºF) - Indoor: 70ºF (21ºC) DB / 60ºF (16ºC) WB. Outdoor: 17ºF
(-8ºC) DB / 15ºF (-9ºC) WB.
(For data on specific indoor units [all ducted, all non-ducted, and both ducted
and non-ducted] combinations, see the MXZ Technical and Service Manual.)
COMpaTIblE INDOOR uNITS aND aSSOCIaTED REMOTE CONTROllERS
Horizontal-ducted Indoor units: SEZ-KD09, 12, 15, 18Na
Wall-mounted Indoor units: MSZ-a09, 12, 15, 17, 24Na
Wall-mounted Indoor units: MSZ-FD09, 12Na
Outdoor Unit: MXZ-3A30NA
Remote Controller PAR-21MAA -
Packaged with SEZ
Wireless Remote Controller -
Packaged with MSZ-A and MSZ-FD
(Optional Wired PAR-21MAA Remote
Controller)
MulTI-INDOOR INVERTER HEaT-puMp SYSTEM
Location:
Engineer:
For Reference Approval
Schedule No.:
Electrical Requirements
Power Supply . . . . . . . . . . . . . . . . . . . . 208 / 230V, 1-Phase, 60 Hz
Breaker Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 A
MCA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 A
Voltage
Indoor - Outdoor S1-S2 . . . . . . . . . . . . . . . . . . . . . . AC 208 / 230V
Indoor - Outdoor S2-S3 . . . . . . . . . . . . . . . . . . . . . . . . DC 12 - 24V
OPERAtING RANGE
Indoor Intake Air Temp.
Maximum 95ºF (35ºC) DB, 71ºF (22ºC) WB
Cooling
Minimum 67ºF (19ºC) DB, 57ºF (14ºC) WB
Maximum 80ºF (27ºC) DB, 67ºF (19ºC) WB
Heating
Minimum 70ºF (21ºC) DB, 60ºF (16ºC) WB
Compressor . . . . . . . . . . . . . . . . . . DC Inverter-driven Twin Rotary
Fan Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.93 F.L.A.
Sound Pressure Level
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 dB(A)
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 dB(A)
DIMENSIONS
W
D
H
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148 lbs. / 67 kg
Refrigerant Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . R410A
Refrigerant Pipe Size O.D. ― Three Ports
Gas Side. . . . . . . . . . . . . . . A: 1/2 / 12.7 mm; B, C: 3/8" / 9.52 mm
Liquid Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/4" / 6.35 mm
Max. Refrigerant Pipe Length. . . . . . . . . . . . . . . . . . . . . 230' / 70 m
Max. Refrigerant Pipe Height Difference
If Indoor Unit is Above Outdoor Unit . . . . . . . . . . . . . . . 49' / 15 m
If Indoor Unit is Below Outdoor Unit . . . . . . . . . . . . . . . . 33' / 10 m
Connection Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Flared
MXZ-3a30Na ENERgY EFFICIENCIES
Indoor unit type
Non-ducted
Ducted and Non-ducted
Ducted
SYSTEM COMpONENTS
Outdoor Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M X Z - 3 A 3 0 N A
Indoor Unit . . . . . Two (minimum) or Three Indoor Units Necessary
Refer to the separate submittal forms for the SEZ and MSZ Indoor units.
Date:
Construction
Outdoor Intake Air Temp.
115ºF (46ºC) DB
14ºF (-10ºC) DB
75ºF (24ºC) DB, 65ºF (18ºC) WB
14ºF (-10ºC) DB, 12ºF (-11ºC) WB
INCHES / MM
35-7/16 / 900
12-5/8 / 320
35-7/16 / 900
sEER HsPF
16 10
15.2 9.7
14.5 9.5
(Select Style as Installation Requires)
