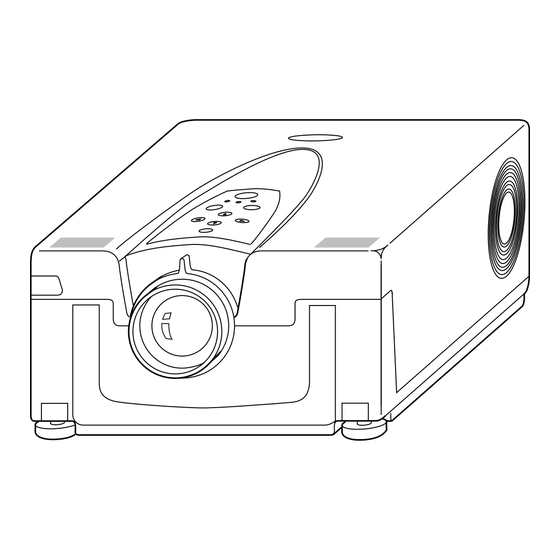

3M Multimedia Projector MP8625 Operator's Manual

Hide thumbs Also See for Multimedia Projector MP8625:
Table of Contents

Advertisement

Quick Links

Download this manual
PLEASE READ
This manual is provided as a free service
by Projector.com.
We are in no way responsible for the
contents of the manual. We do not guarantee
its accuracy and we do not make any claim
of copyright. The copyright remains the
property of their respective owners.
ABOUT PROJECTOR.COM
Projector.com (http://www.projector.com) is
your review and buying guide resource for
DLP and LCD video projectors.
Visit the site to read the latest projector
news and reviews, read and comment on
projector specifications, download user
manuals and much more.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multimedia Projector MP8625 and is the answer not in the manual?

Questions and answers

Related Manuals for 3M Multimedia Projector MP8625

Summary of Contents for 3M Multimedia Projector MP8625

  • Page 1 PLEASE READ This manual is provided as a free service by Projector.com. We are in no way responsible for the contents of the manual. We do not guarantee its accuracy and we do not make any claim of copyright. The copyright remains the property of their respective owners.
  • Page 2 MP8625 Multimedia Projector Operator's Guide MP8625 Projecteur multimédia Guide de l'opérateur MP8625 Multimedia-Projektor Benutzerhandbuch Proyector de Multimedia MP8625 Manual del Usuario MP8625 Proiettore Multimediale Manuale dell'operatore MP8625 Bruksanvisning for multimediaprojektor MP8625 Multimedia Projector Gebruiksaanwijzing 8625-02A...

  • Page 4: Table Of Contents

    Display Lamp Operation Hours ................... 15 Replacing the Lamp ..................... 15 Section 7: Troubleshooting ..................17 Sympton/Solution Table ....................17 Message/Solution Table ....................17 Service Information ..................... 18 Section 8: Accessories ....................18 Appendix: Technical Information ................A.1 © 3M 1998 ™ Multimedia Projector MP8625...
  • Page 5 ™ Multimedia Projector MP8625 © 3M 1998...

  • Page 6: Safeguards

    Always operate machine on a flat, sturdy surface. SAVE THESE INSTRUCTIONS The information contained in this manual will help you operate and maintain your 3M MP8625 Multimedia Projector. © 3M 1998 ™...

  • Page 7: Warranty

    LIMITED WARRANTY 3M warrants this product against any defects in material and workmanship, under normal usage and storage, for a period of two years from date of purchase. Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, 3M's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included).

  • Page 8: Section 1: Unpack

    RS-232 control cable ..(1) 1.3 Keep Your Packaging Materials Important Save the shipping box and packing materials in the event the MP8625 should require shipping to a 3M Service Center for repair. 1.4 What Next? After you have unpacked the MP8625 system and identified all the parts, you are ready to set up the projector.

  • Page 9: Section 2: Product Description

    Lens shutter (open/closed) Remote Control Sensors (front/back) Projection lens Terminal Connection Panels Cooling fan exhaust S-Video, Video, Audio inputs 10. Carry handle RGB1 and RGB2 inputs 11. Lampdoor RGB output 12. Kensington™ Lock ™ Multimedia Projector MP8625 © 3M 1998...

  • Page 10: System Setup

    For some laptop computers you may need to disable the internal pointing device (IPD). This is done through the BIOS level set up of the particular machine, or it could be listed in a "Utilities" program group, i.e., "Toshiba Utilities ™ ," or "Thinkpad Features ™ ." © 3M 1998 ™ Multimedia Projector MP8625...

  • Page 11: Remote Control Transmitter Identification

    C A U T I O N LASER RADIATION DO NOT STARE INTO BEAM WAVE LENGTH: 670 nm MAX. OUTPUT: 1mW CLASS II LASER PRODUCT Laser Aperture Battery Cover (Use AA or LR6 batteries) Figure 2.3 Remote Control Buttons ™ Multimedia Projector MP8625 © 3M 1998...

  • Page 12: Section 3: Basic Operations

    Caution Do not turn off the POWER SWITCH before pressing the STANDBY/ON button. After the STANDBY/ON button is pressed, the fan rotates for about 1 minute to cool the projector. Disconnect cables. © 3M 1998 ™ Multimedia Projector MP8625...

  • Page 13: Adjustments And Functions

    To reset a single item from SETUP menu T I N • Select the adjustment item (brightness, contrast...) COLOR BAL • Press the RESET button. Only the selected item resets. Figure 4.2 Default Settings ™ Multimedia Projector MP8625 © 3M 1998...

  • Page 14: How To Use Height Adjustment Feet

    Do not unlock the foot adjusters if the projector is not supported. If the foot adjusters do not lock completely, turn the foot adjusters slightly before locking. Front View Unlock Lock Side View 8625-12A Figure 4.3 Height Adjustment © 3M 1998 ™ Multimedia Projector MP8625...

  • Page 15: Setup

    TINT cannot be adjusted with a PAL or M-PAL video signal input. • TINT, COLOR and SHARPNESS cannot be adjusted with an RGB signal input. • V. POSIT, H. POSIT, H. PHASE and H. SIZE cannot be adjusted with a VIDEO signal input. ™ Multimedia Projector MP8625 © 3M 1998...

  • Page 16: Input

    Screen Area Selects the RGB1 terminal RGB1 Selects the RGB2 terminal RGB2 Video1 System Selects the video signal Select the VIDEO1 or format Auto, NTSC, PAL, VIDEO2 terminal Video2 SECAM, NTSC 4.43, M-PAL © 3M 1998 ™ Multimedia Projector MP8625...

  • Page 17: Image

    MIRROR V : INTERT Inverts the picture vertically. H&V : INVERT Inverts the picture horizontally and vertically. BLANK Selects the blank color. REVEAL Selects reveal speed. MESSAGE Turn ON or OFF on-screen messages. ™ Multimedia Projector MP8625 © 3M 1998...

  • Page 18: Opt

    (English, French, German, Spanish, Italian, Norwegian, Dutch) AUTO OFF Selects how long projector will stay on, if no input is detected. — Select to disable this function. START UP Enable/Disable Startup Screen. TURN ON © 3M 1998 ™ Multimedia Projector MP8625...

  • Page 19: Section 5: Maintenance

    4. Re-install the air filter and replace the air filter door. Note If air flow is restricted due to dust accumulation on filter, the projector may shut down due to over heating. ™ Multimedia Projector MP8625 © 3M 1998...

  • Page 20: Section 6: Lamp

    The message "CHANGE THE LAMP" will blink at projector start up to remind you to change the lamp. 3. To reset the timer, press the reset button and select (or CANCEL). The "CHANGE THE LAMP" message will not come up if the timer is reset. © 3M 1998 ™ Multimedia Projector MP8625...
  • Page 21 Insert the hinge tabs on the left side of the lamp access door, then close and tighten the retaining screw (1) to secure the door. Note Reset the lamp operation hours. See section 6.2 for details. 8625-16A Figure 6.2 Lamp Module ™ Multimedia Projector MP8625 © 3M 1998...

  • Page 22: Section 7: Troubleshooting

    Safety feature shuts projector down (Blinking message) hours to zero. after 10 minutes. Air flow to cooling fan is blocked. CHECK THE AIR FLOW. Clear air flow path to fan and clean air filter. © 3M 1998 ™ Multimedia Projector MP8625...

  • Page 23: Service Information

    The contents of this manual are subject to revision without prior notice. 3M assumes no responsibility for the infringement of special rights of a third party or other rights that may arise out of the information contained in this manual.
  • Page 24 VIDEO : RCA Jack terminal terminal AUDIO : RCA Jack terminal RGB input/output RGB signal : D-sub 15pin (Female) Input/Output signal terminal AUDIO : Stereo mini jack terminal Control terminal D-sub 15pin (Male) © 3M 1998 ™ Multimedia Projector MP8625...

  • Page 25: Dimensions

    L A M P T E M P M U T E I N P U T M E N U R E S E T 9.4 in. [239 mm] 4.9 in. [124 mm] 8625-01A ™ Multimedia Projector MP8625 © 3M 1998...

  • Page 26: Projector-To-Screen Distance

    1 inch. This is due to variations in the manufacture of the lens. If you are close to one of the endpoints you should verify with your unit that the image is the proper size at the proper distance. © 3M 1998 ™ Multimedia Projector MP8625...

  • Page 27: Connection To The Video Signal Terminal

    No Connection Video signal (Green) No Connection Video signal (Blue) Ground No Connection SDA (DDC) No Connection Horizontal/Composite sync signal Ground (for R) Vertical sync signal Ground (for G) SCL (DDC) Ground (for B) ™ Multimedia Projector MP8625 © 3M 1998...
  • Page 28 MAC 16" mode = switch 2, 5 and 6 are ON (Example of 16 inch mode) Note 2: Some input sources may not be displayed properly because they are not compatible with the projector. © 3M 1998 ™ Multimedia Projector MP8625...

  • Page 29: Indicator Status

    Let projector cool 20 minutes. Check air flow and filter. TEMP indicator call your dealer Blinks red Cooling fan not operating *When the LAMP indicator lights or blinks, turn the power off. If the problem persists, contact your dealer. ™ Multimedia Projector MP8625 © 3M 1998...

  • Page 30: Connection To The Control Signal Terminal

    PS/2 mouse Projector Computer Mini Din 6pin DATA DATA D-sub 15pin (Female) SEL0 PS/2 port ADB mouse Projector Computer Mini Din 4pin SDATA (POWER ON) D-sub 15pin (Female) ADB port © 3M 1998 ™ Multimedia Projector MP8625...
  • Page 31 RS-232 Control Cable (not included with basic packout) This cable is used to directly control the projector without using the Remote Control or Operator's Panel. Projector Computer D-sub 9pin (male) D-sub 15pin (Female) SEL0 RS-232 Cable ™ Multimedia Projector MP8625 © 3M 1998...
  • Page 32 The XX is the same as in the Ask code. Errors: For an error, the projector will reply with the same code that was sent but with a 0 in the first nibble. © 3M 1998 ™ Multimedia Projector MP8625...
  • Page 33 7F is high end of scale 00 00 7F Tint 00 00 00 - 7F is green end of scale 00 00 7F Sharpness 00 00 00 - 7F is sharp end of scale 00 00 7F ™ Multimedia Projector MP8625 © 3M 1998 A.10...
  • Page 34 Red on bit 3 - 0 No change bit 3 - 1 Change Reveal Stop Reveal down Reveal right X in down and right is 0 - 7 with 7 being the fastest © 3M 1998 ™ Multimedia Projector MP8625 A.11...
  • Page 35 ™ Multimedia Projector MP8625 © 3M 1998 A.12...
  • Page 37 United States and Canada from 7:30 a.m. to 5:30 p.m. (CST) or visit our Internet Website. Printed on 50% recycled wastepaper, 3M Austin Center 3M Canada 3M Mexico, S.A. de C.V. 3M Europe including 10% post-consumer Building A145-5N-01 P.O.
