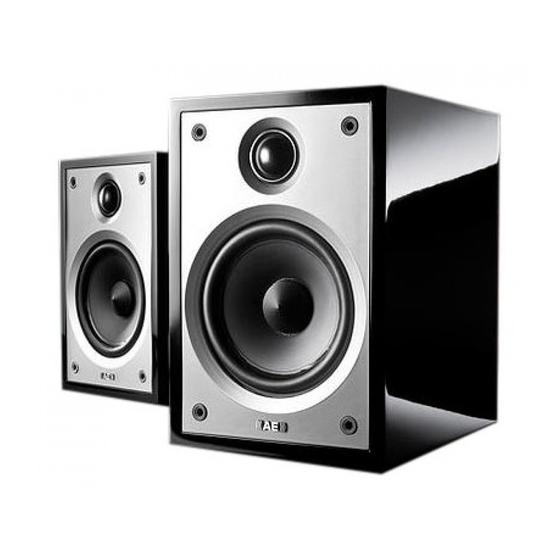

Acoustic Energy Compact-1 Owner's Manual
  1. Manuals
  2. Brands
  3. Acoustic Energy Manuals
  4. Speakers
  5. Compact-1
  6. Owner's manual

Acoustic Energy Compact-1 Owner's Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
COMPACT-1
OWNERS MANUAL
www.acoustic-energy.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Compact-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acoustic Energy Compact-1

Summary of Contents for Acoustic Energy Compact-1

  • Page 1 COMPACT-1 OWNERS MANUAL www.acoustic-energy.co.uk...
  • Page 3 Introduction Congratulations on choosing the Acoustic Energy Compact 1 - a high-power, ultra-compact two-way loudspeaker capable of outstanding audio performance. With its neutral character, exceptional power handling and low distortion, the Compact 1 is suitable for many rooms and systems alike.
  • Page 4 Positioning The Compact 1’s are very exible with regard to positioning and are designed to work well wherever they are located within the listening environment. There are however some basic guidelines that should be followed (where possible) for optimum performance: The tweeters (high frequency drivers) should ideally be at ear level when the listener is seated and for serious listening the grilles are best removed where practical.
  • Page 5 Connection Check that your ampli er is switched o before installing your loudspeakers. Failure to do so may result in speaker or ampli er damage. The positive cable from the ampli er positive (or red) terminal should connect with the positive (red) terminal on the loudspeaker. Similarly the negative cable should connect the ampli er negative terminal (black) to the negative terminal (black) on the loudspeaker.

  • Page 6: Speci Cations

    Speci cations Tweeter: 28mm Fabric Dome Mid/Bass Driver: 100mm Paper Cone Power Handling: 100 Watts RMS (continuous undistorted input) Frq Response: 65Hz-28kHz (+/- 3dB) Sensitivity: 88 dB/W Impedance: 8 ohm (6 ohm minimum) Cabinet: Multiple brace, pressure loaded 18mm MDF with rear- ring low turbulence re ex port Weight: 3.2kg per speaker...

  • Page 7: Warranty

    We suggest that you complete the details of purchase now and keep this information in a safe place for future reference. Under this warranty Acoustic Energy agrees to repair any defect or, at the company’s discretion, replace the faulty component(s) without charge for parts or labour.
  • Page 8 ACOUSTIC ENERGY LTD 16 Bridge Road, Cirencester, Gloucestershire, GL7 1NJ Tel: +44(0) 1285 654432 Fax: +44(0) 1285 654430 Email: info@acoustic-energy.co.uk www.acoustic-energy.co.uk...
