Acoustic Energy AEG05/P5 Owner's Manual

Technical Information

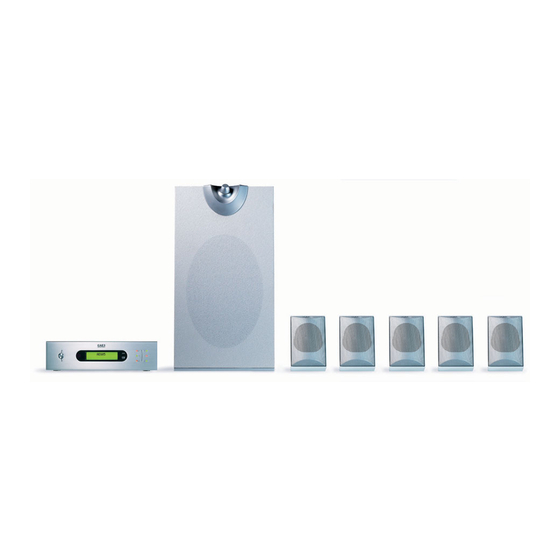

AEGO5 Speaker System
Inputs:
1 x 9 way G9 Multipin
Outputs:
5 x RCA Speaker Connectors
1 x RCA Auxiliary Sub Line level Feed
Controls:
1 x Volume Pot. (On front)
1 x Bass Level Pot. (On rear)
1 x Power switch (On rear)
Power Rating:
120V Model - 110-120V @ 50-60Hz; 80VA
240V Model - 220-240V @ 50-60Hz; 80VA
Dimensions:
Sub Woofer - 265mm x 190mm x 350mm
Satellites - 68mm x 103mm x 90mm
AEGOp5 Digital Decoder
Inputs:
3 x RCA Stereo analogue inputs
1 x RCA Digital input
1 x Optical Digital Input
Outputs:
6 x RCA discrete line outputs
1 x G9 Multipin combined line outputs
Controls:
1 x Power switch
Power Rating:
12V DC @ 1Amp
Dimensions:
228mm x 145mm x 59mm
Warranty
Your Acoustic Energy loudspeakers are guaranteed against original defects in materials, manufacture and
workmanship for 1 year from the date of purchase. Please retain all original packaging materials for
possible future use.
Under this warranty Acoustic Energy agrees to repair any defect or, at the company's discretion, replace the
faulty component(s) without charge for parts and labour.
This warranty does not imply any acceptance by Acoustic Energy or its agents for consequential loss
damage and specifically excludes fair wear and tear, accident misuse or unauthorised modification.
This warranty is applicable in the United Kingdom only and does not in any way limit the customer's legal
rights. Claims and enquiries under the warranty for AE products purchased outside the UK should be
addressed to the local importers or distributors.
If you have reason to claim under the warranty please contact your dealer in the first instance.
Designed by KOI Inc (USA) Exclusively for Acoustic Energy Limited (UK)
Manufactured in Malaysia.
Acoustic Energy Limited, 16 Bridge Road, Cirencester, Gloucestershire GL7 1NJ. UK
Tel: +44 (0)1285 654432 Fax: +44 (0)1285 654430
www.aego5.com
Weight:
13Kg
Finishes:
Black sub woofer
Textured black satellites with
silver/grey grilles
White sub woofer
Textured white satellites with
silver/grey grilles
Accessories:
2 x 5 metre speaker cables
2 x 10 metre Speaker cables
1 x 3 metre Speaker cable
1 x 9 way Multipin to 6 x RCA phono signal cable
5 x wall brackets
4 x rubber feet for subwoofer
Weight:
1.25Kg
Finishes:
Silver
Accessories:
1 x Remote control
1 x Set of batteries
1 x 9 way Multipin to Multipin signal lead
1 x Power adaptor (120V Model - 110/120V AC @ 50/60Hz - 12V DC 1A)
(240V Model - 220/240V AC @ 50/60Hz - 12V DC 1A)
16
