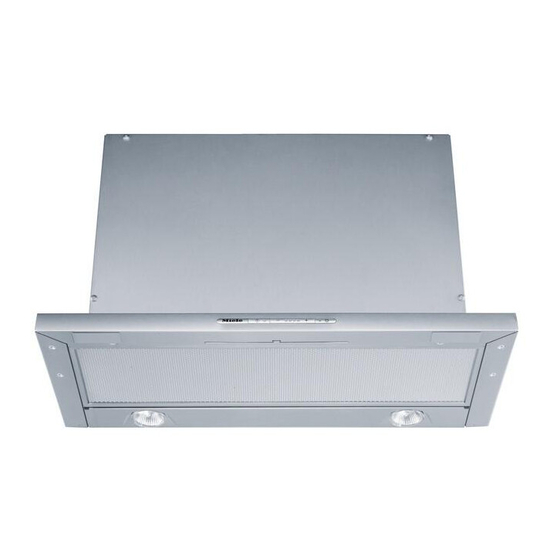

Miele DA 3160 EXT Operating And Installation Instructions
Cooker hoods
Hide thumbs
Also See for DA 3160 EXT:
- Operating and installation instructions (40 pages) ,
- Operating and installation instructions (40 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Miele DA 3160 EXT
Summary of Contents for Miele DA 3160 EXT
- Page 1 Operating and installation instructions Cooker hoods DA 3160 DA 3180 DA 3190 DA 3160 EXT DA 3190 EXT en - GB To avoid the risk of accidents or damage to this appliance it is essential to read these instructions before it is installed and used for the first time.
-
Page 2: Table Of Contents
Contents Caring for the environment ......... . 3 Warning and Safety instructions . -
Page 3: Caring For The Environment
Caring for the environment Disposal of the packing Disposal of your old appliance material Electrical and electronic appliances often contain materials which, if The transport and protective packing handled or disposed of incorrectly, has been selected from materials which could be potentially hazardous to are environmentally friendly for human health and to the environment. -
Page 4: Warning And Safety Instructions
Warning and Safety instructions This appliance is not intended for This appliance complies with all use by persons (including children) relevant local and national safety with reduced physical, sensory or requirements. Inappropriate use mental capabilities, or lack of can, however, lead to personal injury experience or knowledge, unless they and damage to property. - Page 5 Miele authorised person in accordance the data plate correspond with the with current national and local safety on-site electricity supply, otherwise the regulations.
- Page 6 These models may only be combined with a Miele external motor. This appliance may only be used in mobile installations such as ships, caravans, aircraft etc. if a risk...
- Page 7 The Miele DSM 400 control module appliance is switched off or vice versa. offers the possibility of combining other A ventilation brick alone is not generally components with the cooker hood (see sufficient to ensure safe ventilation.
-
Page 8: Correct Use
Warning and Safety instructions Correct use Do not use the cooker hood without the filters in place. This way you will Never use an open flame beneath avoid the risk of grease and dirt getting the cooker hood. To avoid the danger into the appliance and hindering its of fire, do not flambé... - Page 9 Safety regulations prohibit the fitting of a cooker hood over solid fuel stoves. All ducting, pipework and fittings must be of non-flammable material. These can be obtained from the Miele Spare Parts department or from builders' merchants. The appliance must not be connected to a chimney or vent flue which is in use.
-
Page 10: Guide To The Appliance
Guide to the appliance... -
Page 11: Guide To The Appliance
Guide to the appliance a Exhaust socket ø 150 mm b Control panel c Grease filter d Pull-out deflector plate e Hob lighting f Charcoal filter (extra accessory available to order for recirculation mode) g Drop-down lightshield to conceal control panel The front of the deflector plate can be fitted with a lightshield to match your kitchen furniture (max. -
Page 12: Description Of The Functions
Charcoal filters are available to order socket in the motor unit. through your Dealer or the Miele Spare Parts Department or via the internet on Having a non-return flap fitted in the www.miele-shop.com. (See back cover ducting ensures that air, once ducted for contact details and "Technical Data"... -
Page 13: Operation
If the cooker hood has been ^ Press the On/Off touch control for the connected to a window contact switch via the Miele DSM 400 control All the indicator lamps will go out. module, then the fan cannot be switched on if the window is shut. - Page 14 Operation Automatic switch-off of the Intensive setting You can set the Intensive setting so that it only runs for 10 minutes before ^ Press the + touch control to activate reverting automatically to level III. automatic switch-off. ^ To set this option, both the fan and The indicator lamps for fan power the hob lighting must be switched off levels I and IV will now light up...
-
Page 15: Cleaning And Care
Housing To help prevent re-soiling, a proprietary conditioning agent for stainless steel General notes (available from the Miele UK Spare Parts Department or via the internet on Warning: The surfaces and controls www.miele-shop.com) can also be used. are susceptible to scratches and Follow the manufacturer’s instructions,... -
Page 16: Grease Filter
Cleaning and care Important for DFB aluminium lightshields (optional accessory) Aluminium is affected by the way that light falls on it, by the surrounding environment and by the angle you observe it from. Aluminium surfaces may suffer discolouration or damage if soiling is ^ Grip the front of the deflector plate left on them for too long. - Page 17 Cleaning and care ^ When removing the filter for cleaning, Cleaning the grease filters by hand also clean off any residues of oil or ^ Clean the filters with a soft nylon fat from the now accessible housing brush in a mild solution of hot water to prevent the risk of these catching and a little washing-up liquid.
-
Page 18: Fitting And Replacing The Charcoal Filter
It is fitted in the canopy above the grease filter. Replacement charcoal filters can be obtained from your dealer or the Miele Spare Parts department or via the internet on www.miele-shop.com. See back cover for contact details, and "Technical data" for type and reference number. -
Page 19: Changing A Halogen Lamp
Cleaning and care Changing a halogen lamp ^ Pull out the deflector plate, and remove the grease filter as described earlier. ^ Switch off the fan and the lighting. Exercise caution when changing halogen lamps. They get very hot during use, and remain hot for some time after being switched off. -
Page 20: Appliance Dimensions
Appliance dimensions DA 3160 DA 3190* – The front section of the wall housing unit must be fitted with a shelf to the depth of the partition wall. – The partition wall in the wall unit must be removable. * Installation is also possible in a 600 mm wide unit. - Page 21 Appliance dimensions Safety distance between hob and cooker hood The minimum safety distances between the top of a cooker or hob and the bottom of the cooker hood are as follows, unless a greater distance is specified by the manufacturer of your cooking appliance: 450 mm above electric hobs and cookers,...
-
Page 22: Installation
Installation Installation accessories... - Page 23 Installation a 2 hose clips for securing the vent ducting to the exhaust socket. 14 screws 3.5 x 16 mm b 1 reducing collar for securing the cooker hood into the for exhaust ducting C125 mm (not on wall unit. EXT models).
- Page 24 Installation...
-
Page 25: Positioning The Appliance In The Wall Housing Unit
Installation Positioning the appliance in the wall housing unit To position the appliance correctly, cut the spacer strip to required depth T, and then attach it to the back of the appliance. T= Depth of carcase K minus depth of ^ Screw the spacer strip to the bottom appliance G of the sides of the housing, flush with... - Page 26 Installation ^ Place the appliance on its back. Do not remove the protective film between the deflector plate and the casing until the hood has been placed in the housing unit. ^ Screw the brackets onto the right and left inside walls of the housing unit as shown.
- Page 27 Installation Note for dismantling the cooker hood: Undoing the screws on the left and right inside the housing releases the brackets, allowing the appliance to ^ When fitting a DA 3180 or a DA 3190 be removed from the unit. into a 60 cm housing unit, unscrew the brackets on the deflector plate whilst it is pulled out.
- Page 28 Installation ^ Secure the front of the appliance to ^ Attach the lightshield (if using). the floor of the housing unit from below using 4 screws (6 screws for A DML 300 installation kit, available as 90 cm wide cooker hood). an optional accessory, is required for this.
-
Page 29: Set Up For Extraction Mode
Installation Set up for extraction mode ^ Remove the protective strip around the edge of the grease filter. Replace the grease filter. ^ If the on-site ventilation system does ^ To do this, pull the deflector plate not have a non-return flap, then the out. -
Page 30: Set Up For Recirculation Mode
For this, we recommend using the cable and the 6-pole plug connector. conversion kit available from your Miele dealer or the Miele Spare Parts Dept ^ Separate fitting instructions are (see "Technical data"). supplied with the external motor. -
Page 31: Connection For Air Extraction
Connection for air extraction Important: To avoid the danger of If the exhaust ducting is secured to toxic fumes please observe the the exhaust stub by a hose clip, Warning and Safety instructions. ensure that it is fitted correctly. Do This is especially crucial when using not overtighten. -
Page 32: Condensate Trap
Connection for air extraction Silencer Important: If the exhaust ducting is to run through To achieve even further reductions in rooms, ceiling space etc. where there noise levels, a special silencer can be may be great variations in temperature fitted in the ducting system. between the different areas, the It can be sited at any suitable position problem of condensation will need to... -
Page 33: Electrical Connection
Electrical connection If the switch is not accessible after All electrical work should be installation (depending on country), an undertaken by a suitably qualified additional means of disconnection must and competent person in strict be provided for all poles. accordance with current national For extra safety it is advisable to install and local safety regulations a residual current device (RCD) with a... -
Page 34: Operation With Dsm 400 Control Module
Operation with DSM 400 control module The Miele DSM 400 control module can If the control module is be used to combine the cooker hood disconnected in order to operate the with other components. cooker hood without the window It enables the following: contact switch (e.g. -
Page 35: Connection To A Light Switch
Operation with DSM 400 control module Connection to a light switch The control module can be used to switch on the cooker hood lighting via a light switch in the house. Installation The control module must be installed above the cooker hood housing. The control module is supplied with its own detailed operating and installation instructions. -
Page 36: After Sales Service
In the event of a fault which you cannot correct yourself, or if the appliance is under guarantee, please contact: – Your Miele Dealer – The Miele Customer Contact Centre (see back cover for address). When contacting your Dealer or the Contact Centre, please quote the mo- del and serial number of your appliance. -
Page 37: Technical Data
DA 3160 ....12 kg DA 3160 EXT ....10 kg DA 3190 . - Page 40 Alteration rights reserved / 4007 M.-Nr. 06 681 580 / 04...
