Hotpoint COUNTER SAVER PLUS RVM1625SJ Dimension Manual

RVM1625SJ – Hotpoint Counter Saver Plus

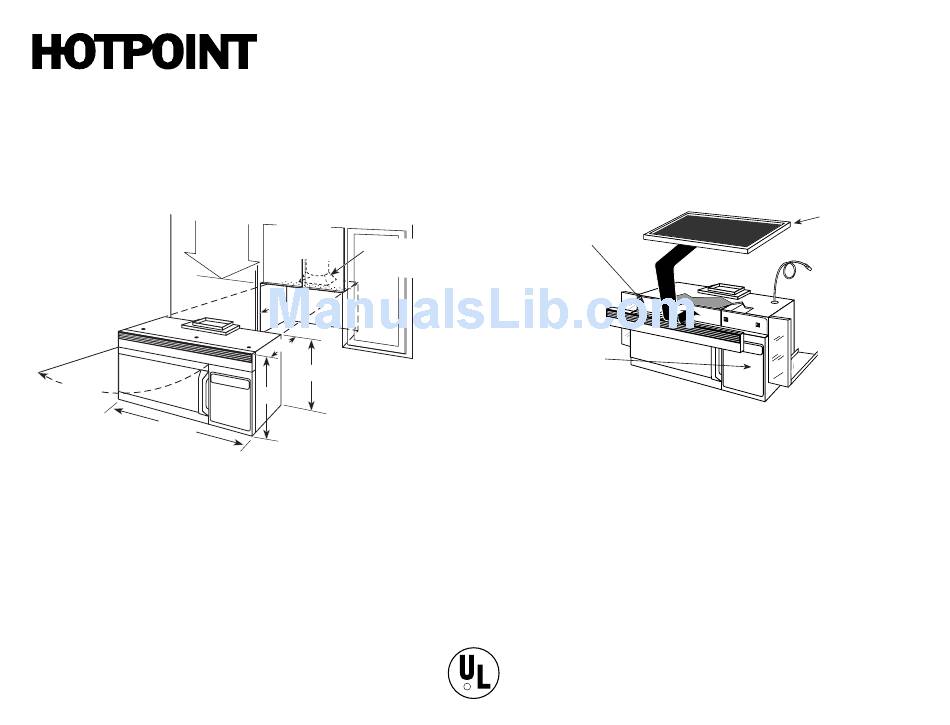

Dimensions (in inches)
66" MIN.
Mounting
height
from
21-3/4"
Door open
29-7/8
Important Information: When installing the Counter Saver Plus
microwave oven over a range, allow minimum of 2" from bottom of
Counter Saver Plus microwave oven to top of range backguard to allow for
removal of light covers.
Installation Information: This information is not intended to be used for
installing unit described. Before installing, consult installation instructions
packed with product/kit for current dimensional data.
Specification Created 1/04
440017
®
™
30"
MIN.
width
Exhaust outlet
required
connects to
floor
3-1/4" X 10" duct
12"
MIN.
15-1/4
16-13/32
16

Microwave Oven

Optional Accessories (Available at additional cost)
JX48BL – Black Filler
Panel Kit
When replacing a 36" range
hood, this kit fills in the
additional width to provide a
custom, built-in appearance. For
installation between cabinets only;
not for end-of-cabinet installation.
Each kit contains two, 3"-wide
filler panels.
Ventilation Options: The Counter Saver Plus microwave oven is designed for adaptation for the
following three types of ventilation:
Outside Exhaust (Vertical)
Outside Exhaust (Horizontal)
Recirculating (Non-vented ductless–see Filter Kit Drawing)
Note: Before installing, consult installation instructions for current dimensional data on these
three types of ventilation.
Listed by
Underwriters
Laboratories
R
JX81A–
Recirculating
Charcoal Filter Kit
To be used when the
Counter Saver Plus
microwave oven
cannot be vented to
the outside.
