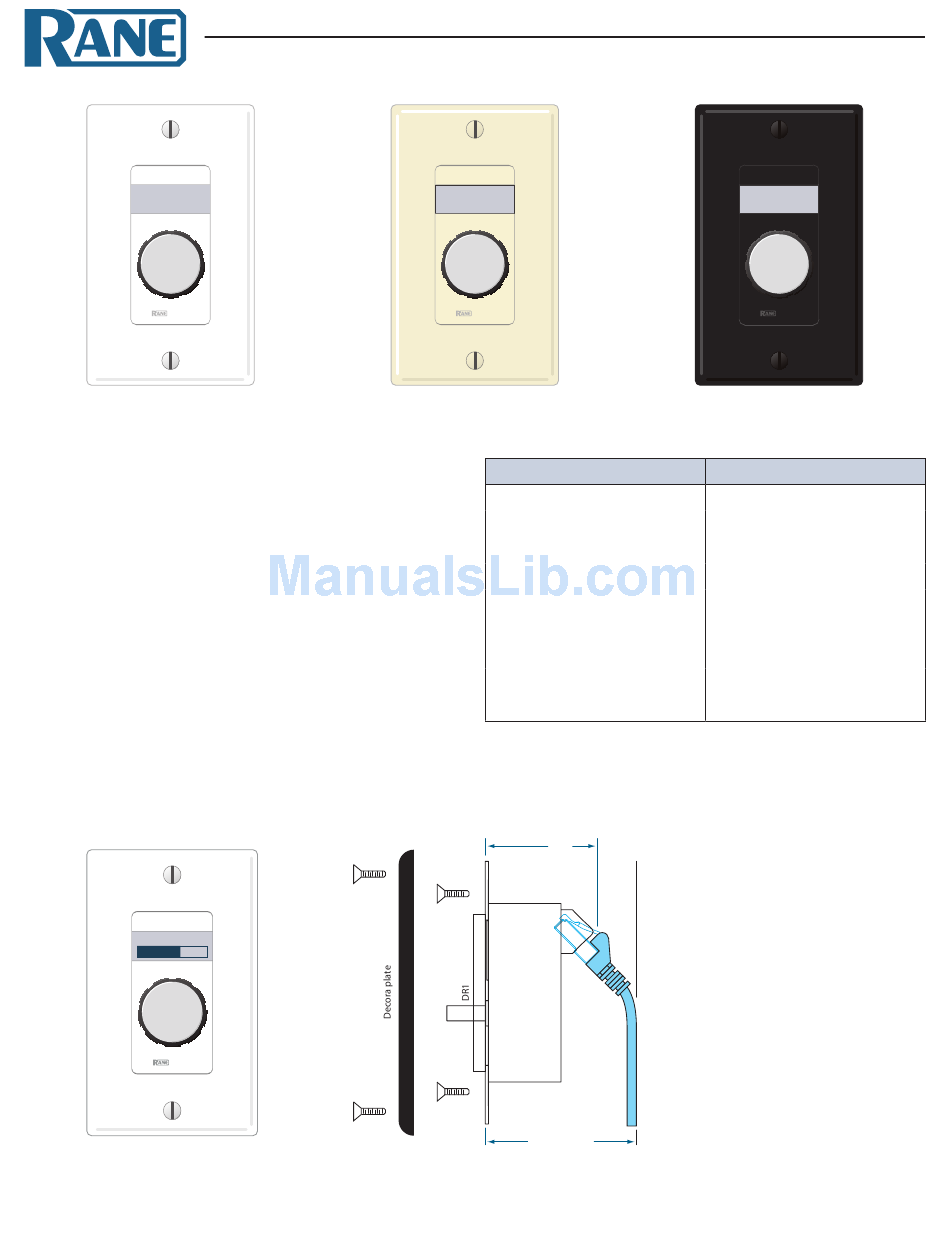

Rane DR1 Dimensions And Specifications

DR1

General Description

Rane Digital Remotes simplify end user control and eliminate
installer brain fatigue. All offer customizable backlit LCD
screens for intuitive end user labeling. All are available in three
colors to coordinate with surroundings: white, ivory or black,
and include a matching Decora® plate cover.
Home run shielded CAT 5e (or better) connections to a
HAL, EXP or CP66 eliminate addressing, external power, and
the need to test the cables. The DR can be up to 300 meters
(1000 feet) away from its host. It mounts in a standard two-gang
U.S. electrical box.
Display screens are dynamic, automatically updating when
the available options change through preset activation, room
combining, and so on. Therefore, the user always sees the op-
tions that are currently available. A DR1 provides a single level
control, used most commonly to control volume.
House Level
DR1
DR1
Unit Specifications
Parameter
CAT 5e Cable Length Max.
Power Requirement:
Baud Rate:
Unit: Conformity
Unit: Size
...cm 10.4H x 4W x 5.5D
...in 4.1˝H x 1.6˝W x 2.2˝D
Unit: Weight
Unit: Shipping
1.7"
(43.2 mm)
front of
mounting plate
to back of DR
2.25" (57 mm)
front of mounting plate to
back of minimum box depth
DR1
DIGITAL REMOTE
DR1
Specification
300 meters / 1000 feet
+24VDC / 50mA
115200
CE, FCC
6.6D including knob
2.6˝D including knob
113 g / 4.0 oz
261 g / 9.2 oz
Data Sheet-1
