General Description

Rane Digital Remotes simplify end user control and eliminate
installer brain fatigue. All offer customizable backlit LCD
screens for intuitive end user labeling. All are available in three
colors to coordinate with surroundings: white, ivory or black,
and include a matching Decora® plate cover.
Home run shielded CAT 5e (or better) connections to a HAL
or EXP1 eliminate addressing, external power, and the need to
test the cables. The DR can be up to 300 meters (1000 feet) away
from its host. It mounts in a standard two-gang U.S. electrical
box.
Display screens are dynamic, automatically updating when
the available options change through preset activation, room
combining, and so on. Therefore, the user always sees the op-

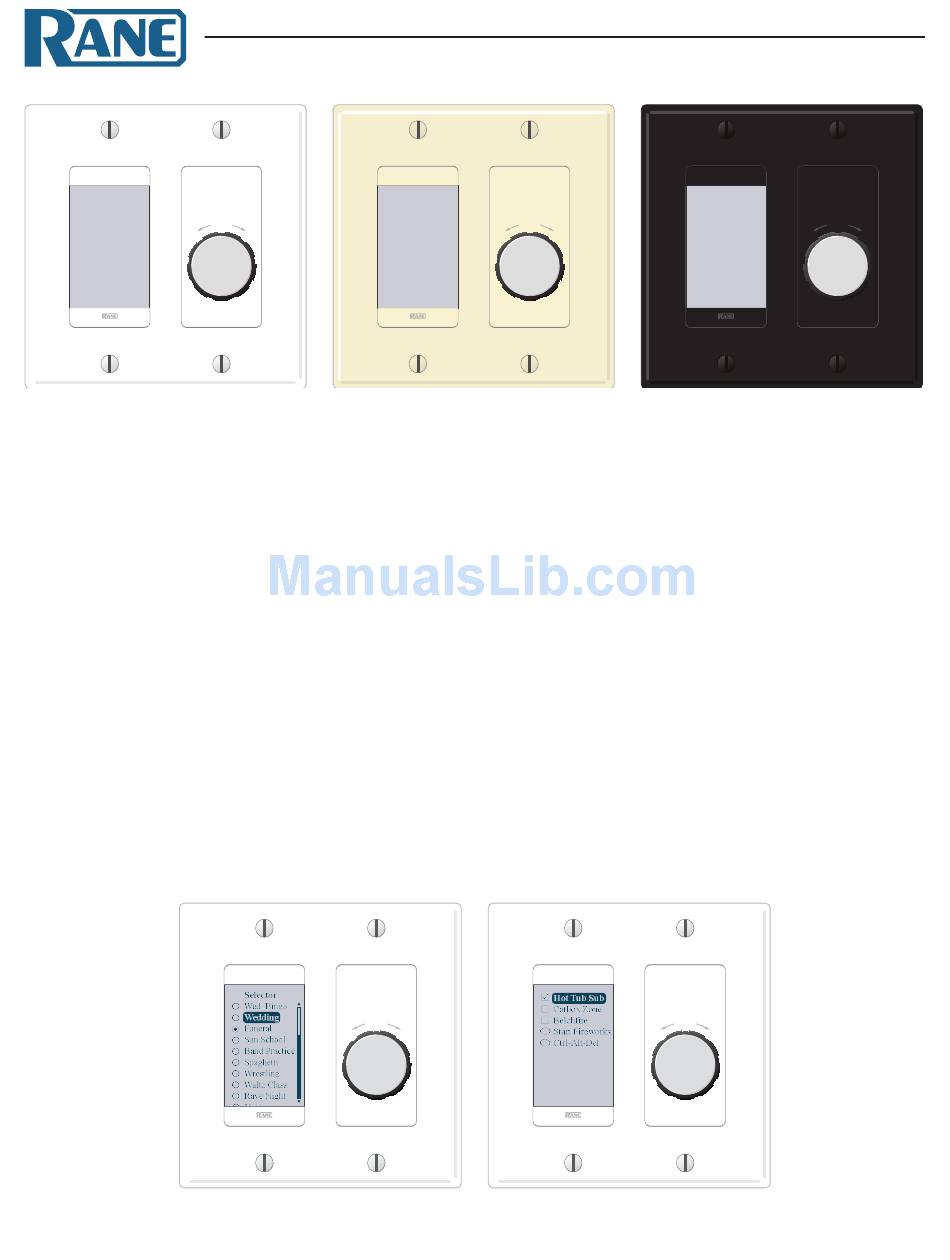

tions that are currently available. A DR2 works well for selecting
sources, presets, and room configurations. You can configure a
DR2 to behave in one of two ways:
SCROLL
DR2
SCROLL
PUSH TO SELECT
DR2
Single Selector
SCROLL
PUSH TO SELECT
DR2
• Single Selector: The control acts as a selector switch that
can select only one item at a time on the display screen. For
example, the display might show a list of background music
channels. Use the push control to select which channel to ac-
tivate. This behavior is similar to a radio button in a software
application (as displayed in the image below).
• List of Toggles/Commands: The control acts as a switch for
enabling or disabling each item on the display screen. For
example, the display screen might list presets and the user
uses the push control to enable or disable each preset in the
list. This behavior is similar to a series of checkbox items in a
software application.
See the HAL Installation Manual or the Halogen software
Help for complete DR2 instructions. Information on HAL,
Halogen and peripherals is available at rane.com/hal.
DR2 Digital Remote
List of Toggles / Commands
DIGITAL REMOTE
SCROLL
PUSH TO SELECT
DR2
SCROLL
PUSH TO SELECT
DR2
DR2
Data Sheet-1
