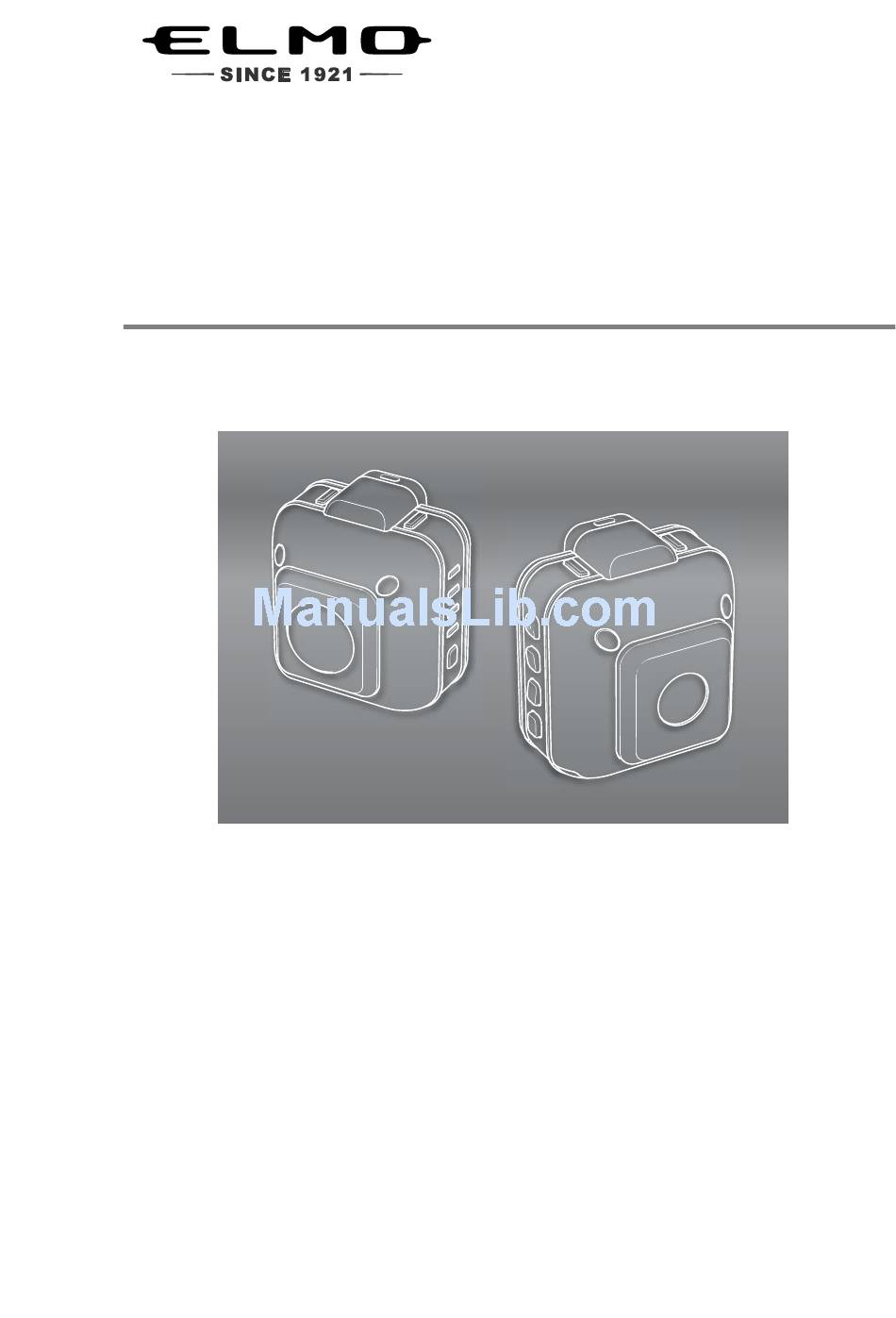

- Page 1 START-UP GUIDE QBiC S X1 / D1 ©2013 Copyright ELMO Co., Ltd. All rights reserved. Any names, company names and product names referred to in this guide are trademarks or registered trademarks of the respective companies.
-
Page 2: Table Of Contents
TABLE OF CONTENTS BEFORE YOU USE ....................3 QBiC S PACKAGE CONTENTS ................. 4 THE NAME OF EACH PART ..................5 PREPARATIONS ......................6 Installation of battery pack / Charging ..............6 INSERTING microSD CARD AND WiFi CARD ............7 PRECAUTIONS WHEN USING QBiC S IN THE OPEN AIR ........ -
Page 3: Before You Use
BEFORE YOU USE Thank you for purchasing QBiC S X1/D1 This guide is intended to describe the usage and settings of the product for the purpose of appropriate usage and the user’s safety. Please read this guide and the “Important Safeguards” carefully before using the product. -
Page 5: The Name Of Each Part
THE NAME OF EACH PART QBiC S FRONT Power/Battery PWR LED Maintenance MNT LED Power switch LED lights WiFi switch Lens Schedule switch LED lights switch QBiC S BACK WiFi LED Microphone Schedule LED Reset switch Key lock LED Lock REC LED Back cover (WiFi card slot inside) -
Page 6: Preparations
PREPARATIONS INSTALLATION OF BATTERY PACK/CHARGING *Battery pack is not inserted in the product. Battery is not fully charged at the time of purchase. Charge the battery fully before starting to use the product. 1. The rating label which mentions product name; etc. is attached at the bottom of the product (①). -
Page 7: Inserting Microsd Card And Wifi Card
INSERTING microSD CARD AND WiFi CARD 1. Insert the supplied micro SD card in the WiFi card. Slide switch *When the WiFi card is write-protected, recording is not possible. Verify that the slide switch is set to the unlock position. If the slide switch is set to [LOCK], slide it to other end to release the lock. -
Page 8: Precautions When Using Qbic S In The Open Air
Close the back cover and lock it. Insert a flat object such as a coin in ① and turn it to the direction ② indicated with an arrow. ② ① Make sure to close the cover correctly and lock it tight. Insufficient locking may deteriorate the waterproof performance and damage the CAUTION product. - Page 9 2. When this product is used with AC adapter, (①) remove USB cover (②) install USB packing seal to the micro USB port (③) plug the USB cable (with USB packing seal) connect USB cable and AC adapter, and start to use. Use a commercially available outdoor housing if this product is used in the open air.
-
Page 10: Starting The Alert Mode
STARTING THE ALERT MODE This product supports “Alert mode” which continuously records video and save it to microSD card and “Maintenance mode” which configures the variety of settings and also plays the recorded movie which is stored in the micro SD card. In this section the following topics are covered: [Operation of each mode] / [Indication of LEDs] POWERING ON/OFF... -
Page 11: Alarm Sound In Battery Mode
ALARM SOUND IN BATTERY MODE This product will sound to inform the remaining battery level. A long beep sound occurs when the product is working in “Alert mode” and the remaining operation time is less than 5 minutes. Immediately charge if the product starts to makes alarm sound. NOTICE Battery alarm can be disabled by using the QBiC S Maintenance Tool. -
Page 12: Start Alert Mode (Shifting To Alert Mode)
START ALERT MODE (SHIFTING TO ALERT MODE) Press “Alert/Cancel alert REC switch” in “Maintenance mode” and shift the mode to the “Alert mode”. When the product is in the “Alert mode”, “Maintenance MNT LED” and “WiFi LED” turn off, and instead “REC LED” turns green. Alert/Cancel alert/ REC switch “REC LED”... -
Page 13: Stop Alerting (Shifting To Maintenance Mode)
STOP ALERTING (SHIFTING TO MAINTENANCE MODE) Press and hold “Alert/Cancel Alert REC switch” (over 2 seconds) and cancel the “Alert mode”. The camera shifts the mode to the “Maintenance mode”. Use “QBiC S Maintenance tool” in the “Maintenance mode” to configure a variety of settings and play recorded movies. -
Page 14: Maintenance Tool
MAINTENANCE TOOL ABOUT QBiC S MAINTENANCE TOOL QBiC S Maintenance Tool is a tool to configure detailed settings of the camera. Install the tool to PC and connect PC and the camera with the supplied USB tool prior to use. By using the tool, you can: ●... -
Page 15: Get And Install The Qbic S Maintenance Tool
Warning messages about hardware compatibility and digital signature may appear, depending on PC environment. Tick “Always trust software from ELMO COMPANY, LIMITED.” And click “Install” button. 3. The “QBiC S Maintenance Tool” icon will be installed on your PC desktop if the installation is successful. -
Page 16: Connect This Product To Pc Viausb Cable
CONNECT THIS PRODUCT TO PC VIAUSB CABLE 1. Boot the QBiC S Maintenance Tool. From start menu in your PC, click “Start” ”All Programs” ”ELMO””QBiC S Maintenance Tool”.”QBiC S Maintenance Tool”. Or click the icon of the QBiC S Maintenance tool located on your PC desktop. -
Page 17: Connecting To Wifi
CONNECTING TO WiFi By using WiFi the camera can be connected to a network and movies can be displayed to other devices. The configuration differs from wireless LAN router or wireless LAN access point which you use. ● PC in the network is required to use. ●... -
Page 18: Mass Storage Mode
MASS STORAGE MODE This product can be used as a storage device. Using this mode, you can retrieve the data stored in the micro SD card. TURNING ON THE MASS STORAGE MODE Open the micro USB Port Cover of the product. Power off the product. -
Page 19: Update
UPDATE This product and the QBiC application software will be updated from time to time to improve their performance and functionality. For the details about updating, refer to the QBiC S Instruction manual. Please get the latest manual from the following QBiC Product website: http://www.elmoqbic.com/... - Page 20 QBiC S X1/D1 IMPORTANT SAFEGUARDS Please read this IMPORTANT SAFEGUARDS carefully before using the product and keep it for future reference. Also please download QBiC Instruction Manual from the following website and read carefully to ensure safe and proper use.
-
Page 21: Important Safeguards
IMPORTANT SAFEGUARDS Please read all precautions and warnings before starting to use. The information is provided to ensure proper operation of this product and will prevent you or others from personal injury or loss of assets. Review the following symbols so that you understand them before reading the rest of the manual. - Page 22 DANGER The battery used for this product is a rechargeable lithium-ion battery. This battery is susceptible to temperature and humidity. This battery is designed to be used solely with this product. Do not use it with other product. ● Do not use an apparently damaged or deformed battery. It could cause smoke, fire, electric shock or burn.
- Page 23 ● There are some points which have extremely high voltage inside the product. They could cause smoke, fire, electric shock, burn, or failure. ● Contact your dealer or ELMO Customer Service for check-up or repair. Keep this product and accessories out of reach from babies and children.
- Page 24 If any abnormality is found during use of the product or the supplied AC adapter, power off the product or carefully remove the battery. Contact your dealer or ELMO Customer Service. ● Continuous use could lead to fire or electric shock.
- Page 25 CAUTION Prior to using this product on a commercial airplane or in a hospital, check with authorized personnel. ● This product will emit electromagnetic energy which can interfere with aircraft instruments or patient monitoring equipment. Remove the attachments and leave this product uncharged if this product is unused for an extended period or when you do maintenance on the product.
- Page 26 Do not put this product in contact with your skin for an extended period. Pay close attention if your skin is sensitive. In case skin irritation occurs after touching this product go to see doctor immediately. ● This product may get hot. Holding this product with hand for an extended period may cause low temperature burns.
-
Page 27: Before You Use
■ When shooting an important scene, be sure of try shooting beforehand and confirm normal video and audio recording operation. ELMO shall not be liable for compensation to the user if the visual record or audio record fails due to a problem not related to this product. - Page 28 ● The product warranty does not cover malfunction due to misuse by the user. ● We do not guarantee its waterproof ability if the product is given excessive shock by dropping or bumping it. Contact your dealer or ELMO Customer Service for repair (fee applies).
- Page 29 The USB cable (included in the package) comes out during communication. ● Under those circumstances, ELMO shall not be liable for any damages due to corruption of or loss of the recorded data. ■ WiFi card and microSD CARD ●...
- Page 30 (10°-30°Celsius or 50°-86°Fahrenheit is ideal), the battery life seems to have come near its end. Replace it with a new battery. Contact your dealer or ELMO Customer Service for battery replacement (fee applies). ● Charging may not be possible in the cold and hot environment. In that case leave this product in the moderate temperature (10°-30°Celsius or...
-
Page 31: Disclaimers
■ It is prohibited under copyright law to use or copy any part or the whole of this document without our prior written consent. ■ ELMO shall not be liable for any claim for damage or loss of earnings or any claim raised by a third person due to the use, malfunction or repair of this product. - Page 32 ATTENTION ● This product is designed to be used in domestic environment. However, if this product is used in close proximity to a radio or television, it may cause interference to radio or television reception. ● Any image, which is obtained through a camera system, and which can be identified, is considered to be private information.
