Elmo QBiC MS-1 Instruction Manual

6X1MWMO11 R0-Xxx
Lens Cover Replacement Kit
INSTRUCTION
Please read this manual carefully before using
MANUAL
this product and keep it for future preference.
IMPORTANT SAFEGUARDS
Please read all precautions and warnings before starting to use.
The information is provided to ensure proper operation of this product and will prevent
you or others from personal injury or loss of assets.
Review the following symbols so that you understand them before reading the rest of the
manual. Please read carefully and keep the manual in a safe place for future preference.
Ignoring the warning and operating the system incorrectly may
WARNING
subject the user to possible risk of injury or death.
Ignoring the warning and operating the system incorrectly may
CAUTION
subject the user to risk of injury or loss of assets.
Keep Lens Cover Replace Kit, its accessories, package or packing materials
out of baby's reach.
・ They could choke or injure a baby if swallowed. Contact a doctor
immediately if this happens.
Do not install this product in areas where salt erosion or corrosive gas is
produced.
・The product will be damaged and it may cause to drop accidentally, leading
to injury or malfunction.
Do not directly look at the sun through the lens cover.
・Doing so may harm your eyes or cause loss of eyesight.
Do not leave Lens Cover Replace Kit in direct sunlight or reflected sun.
・Sunlight focused by the lens can cause fire.
Do not clean Lens Cover Replace Kit with strong solvents such as thinner
and benzene.
・This may damage the plastic parts. Clean Lens Cover Replace Kit only with
a dry, soft cloth. In case of heavy dirt, wash lightly with fresh water. Then
wipe it with a dry, soft cloth.
Do not strongly rub the lens cover or apply strong impact to it.
・This may damage the lens cover or cause malfunction.
Do not replace the lens cover in places where there is a lot of dust or there
are water splashes.
・Dust or water may enter the camera, leading to malfunction.
When the lens cover or lens surface gets dirty, gently clean it with a soft
cloth.
・Otherwise, the lens cover or lens surface may be damaged.
When attaching the lens cover to QBiC MS-1, firmly tighten the screws.
・Otherwise, the waterproof performance of QBiC MS-1 may be
compromised.
Do not apply excessive force when tightening screws.
・Doing so may cause damage or malfunction.
Do not wash Lens Cover Replace Kit.
・Water droplets may enter the camera, leading to malfunction.
WHAT'S IN THE BOX
□ □ □
Screw
Ring Lens cover
W A R N I N G
C A U T I O N
□
□
O-Ring Wrench
ｘ2

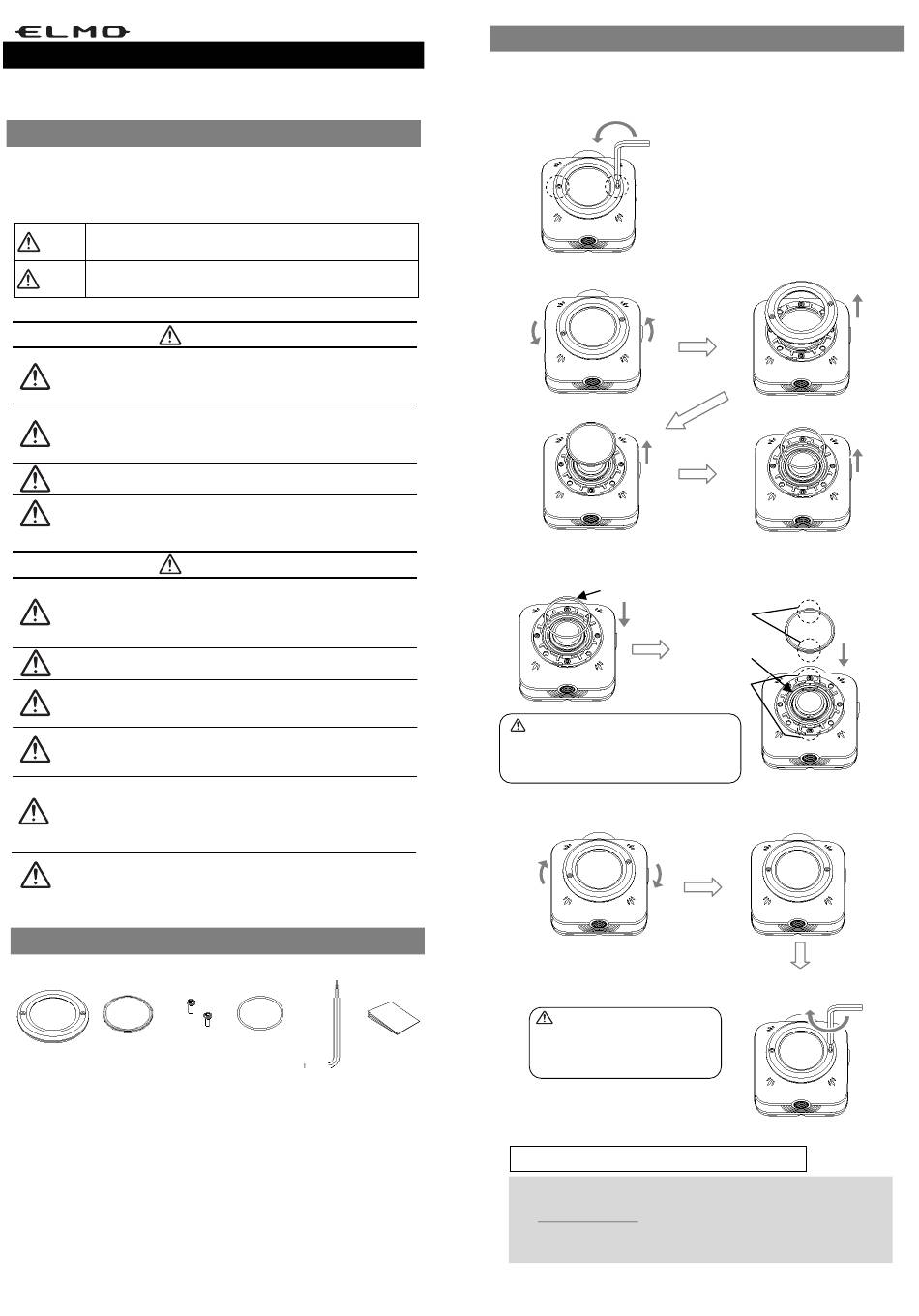

HOW TO USE
Do not replace the lens cover in places where there is a lot of dust or humidity or there are water
splashes. Make sure that your hand, camera, and Lens Cover Replace Kit are clean and free
from water, oil and dirt before replacing the lens cover.
1. Remove the lens cover.
① Remove 2 screws on the ring cover using the supplied wrench.
② Slightly turn the ring cover counter-clockwise. Then pull it to remove.
③ Remove the lens cover.
2. Attach the lens cover.
Assemble the parts in the opposite order as disassembly procedure.
① Attach the O-Ring.
CAUTION
Make sure that the O-Ring and lens cover are clean
and free from dust and that there is no damage on the
O-Ring.
Otherwise, it may cause water leak or malfunction.
③ Attach the ring cover as shown in the drawing. Then slightly turn it clockwise to fix the position.
□
Instruction
Manual
Using damaged or deformed ring cover may
cause water leak or malfunction. Be sure to
use the supplied new ring cover.
*Please refer to QBiC instruction manual for shooting information.
Installable device: QBiC MS-1
※Do not attach objects other than specified to this products.
PLEASE NOTE:
■ Contents of this manual may be subject to change without notice.
Please check the latest version from the following QBiC MS-1 website.
http://www.elmoqbic.com/
■ We shall not be liable for any direct, indirect, punitive, incidental, special, consequential or
exemplary damages, including but not limited to loss of profits or claims by third party,
resulting from your use of this product.
●Contact Us
Please refer to the above-mentioned QBiC Website.
② Attach the lens cover, matching the projected parts
O-Ring of the lens cover with the concave parts of the camera.
Projected parts of
the lens cover
O-Ring
Concave parts
of the camera
CAUTION
④ Remove the O-Ring.
④ Tighten 2 screws using the
supplied wrench.
