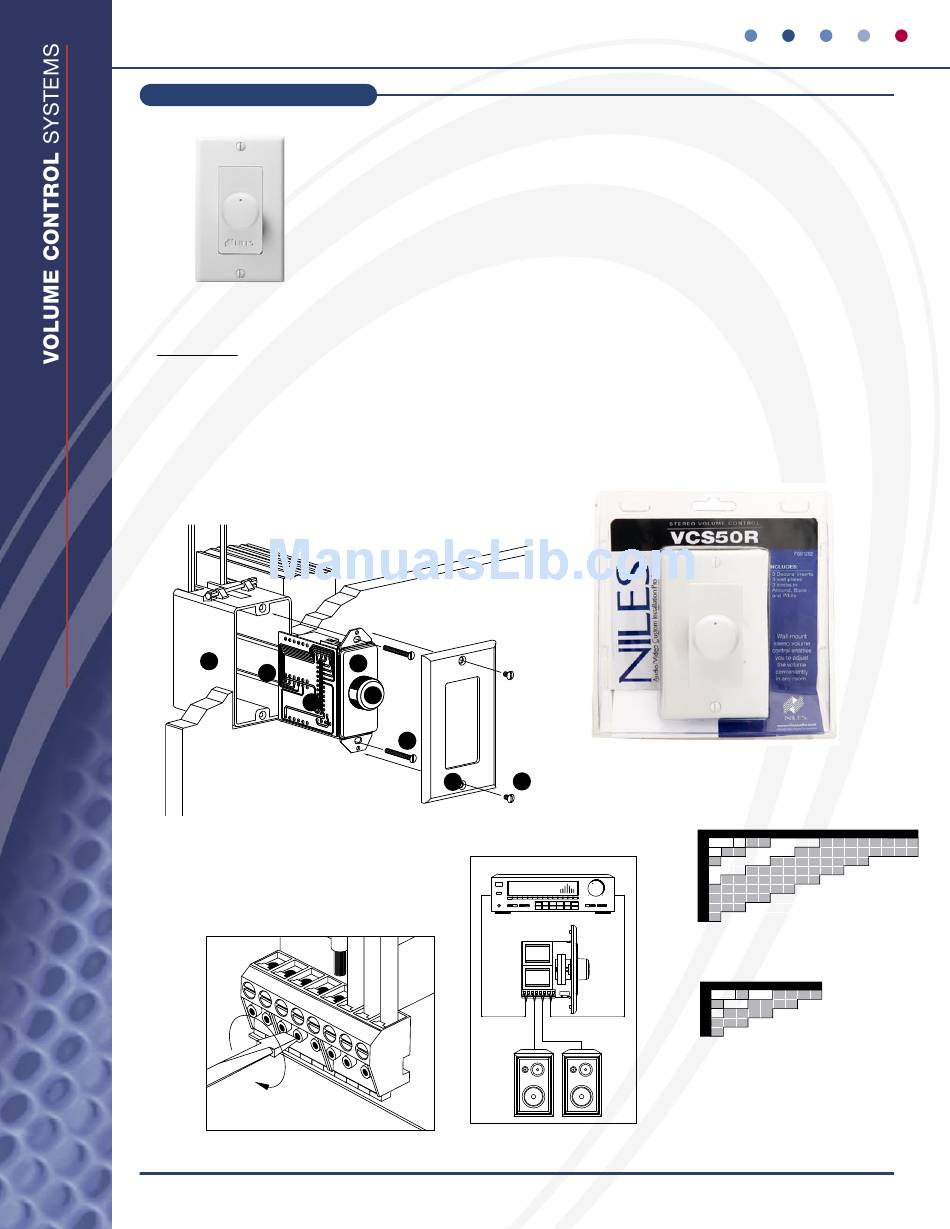

Specifications - Niles VCS50R Specifications

Features and Specifications
VCS50R
Stock Number
FG01282
a
b
c
(a) Electrical Box
(b) Speaker Wire
(c) VCS50R Volume Control
(d) Decora-Style Insert (3 supplied)
(e) Knob (3 supplied)
(f) Device Screws (2 supplied)
(g) Decora Wallplate (3 supplied)
(h) Faceplate Screws (6 supplied)
Wiring the connectors
NILES AUDIO CORPORATION
©2006 Niles Audio Corporation. All Rights Reserved. Niles and the Niles logo are registered trademarks of Niles Audio Corporation. CS0012
Features
Power handling: 50 watts per channel RMS; 100 watts peak
■
10 step control, 42 dB maximum attenuation
■
Pop-free switching between all steps
■
Removable knob and Decora
■
Recommended for use with Niles VCS HUB8 speaker distribution hub
■

Specifications

Impedance Settings: 1X, 2X, 4X, or 8X Switch
■
Dimensions: 1-5/8" wide x 2-5/8" high x 2-9/16" deep (behind faceplate)
■
Requires 1-gang electrical box at least 2-3/4" deep
■
Power Handling: 50 W (RMS)/100 W (peak music power) per channel
■
Frequency Response: 20Hz to 20kHz ± 2dB
■
Minimum Speaker Load: 4 ohm
■
Wiring Requirements: 14 to 16 gauge, stranded-copper loudspeaker wire with two individual runs
■
of two-conductor wire, or one run of four-conductor wire
Warranty: Ten Years
d
e
f
g
Left
(Input)
To Speakers
(Output)
12331 SW 130 Street, Miami, FL 33186 1-800-BUY-HIFI – www.nilesaudio.com
snap-in color inserts for quick and easy color changes
®
Colorful Retail Clamshell with Hang Tag
h
4 OHM
Receiver
Speaker
Pairs
VCS50R Amplifier's minimum speaker load is 4 OHM
Right
(Input)
4 OHM
Speaker
Pairs
Amplifier's minimum speaker load is 8 OHM
Wiring diagram shows
a Niles system with a
VCS50R volume control
8 OHM Speakers Pairs
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
0
1x 2x 2x
1
2x 2x 2x
4x
2
8x 8x
3
4
5
6
7
8
.
8 OHM Speakers Pairs
1 2 3 4 5 6 7 8
0
0
1x 2x 2x 4x
1
2x 2x 4x
2
4x 8x 8x
3
4
.
