Goodman, Janitrol, Trane/American Standard - ICM Controls SC2201 Installation, Operation & Application Manual

SimpleComfort

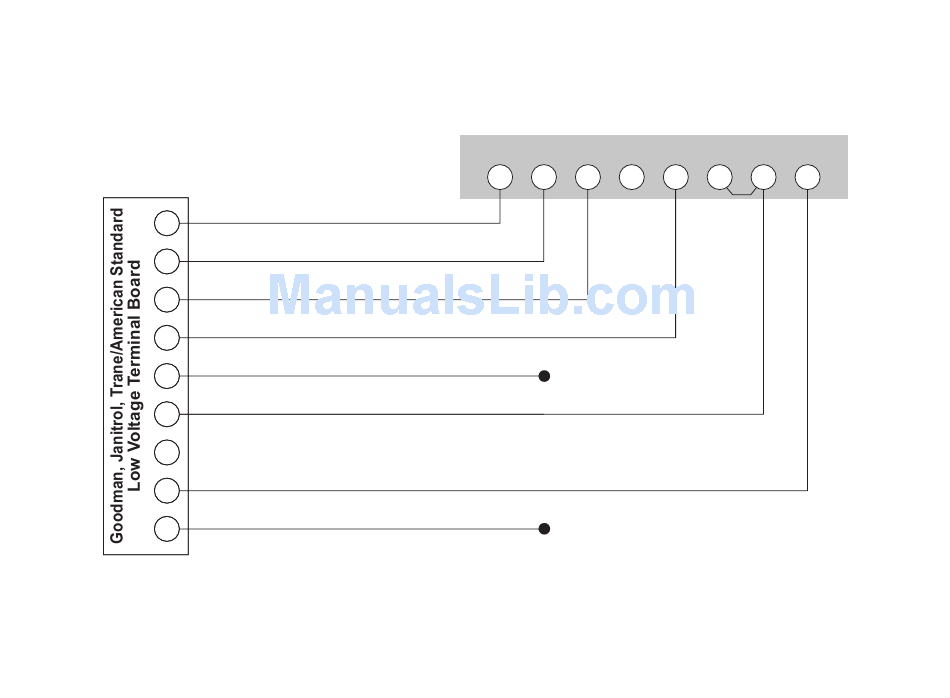

Goodman, Janitrol, Trane/American Standard Heat Pump Systems
Note 1: E and W2 terminals jumpered at thermostat.
Note 2: X2 terminal on Goodman, etc. capped at PCB.
Note 2: T terminal on Goodman, etc. capped at PCB.
R
Y
O
G
X2
W-U
B
T

2201 Electronic Thermostat Conversion to:
®
24 VAC, Return
Compressor Contactor
Reversing Valve (Cooling Mode)
Fan Contactor Circuit
2nd Stage Heating Circuit
24 VAC, Common
SimpleComfort
R Y1 O B G
(capped)
(capped)
2201
®
E W2 C
