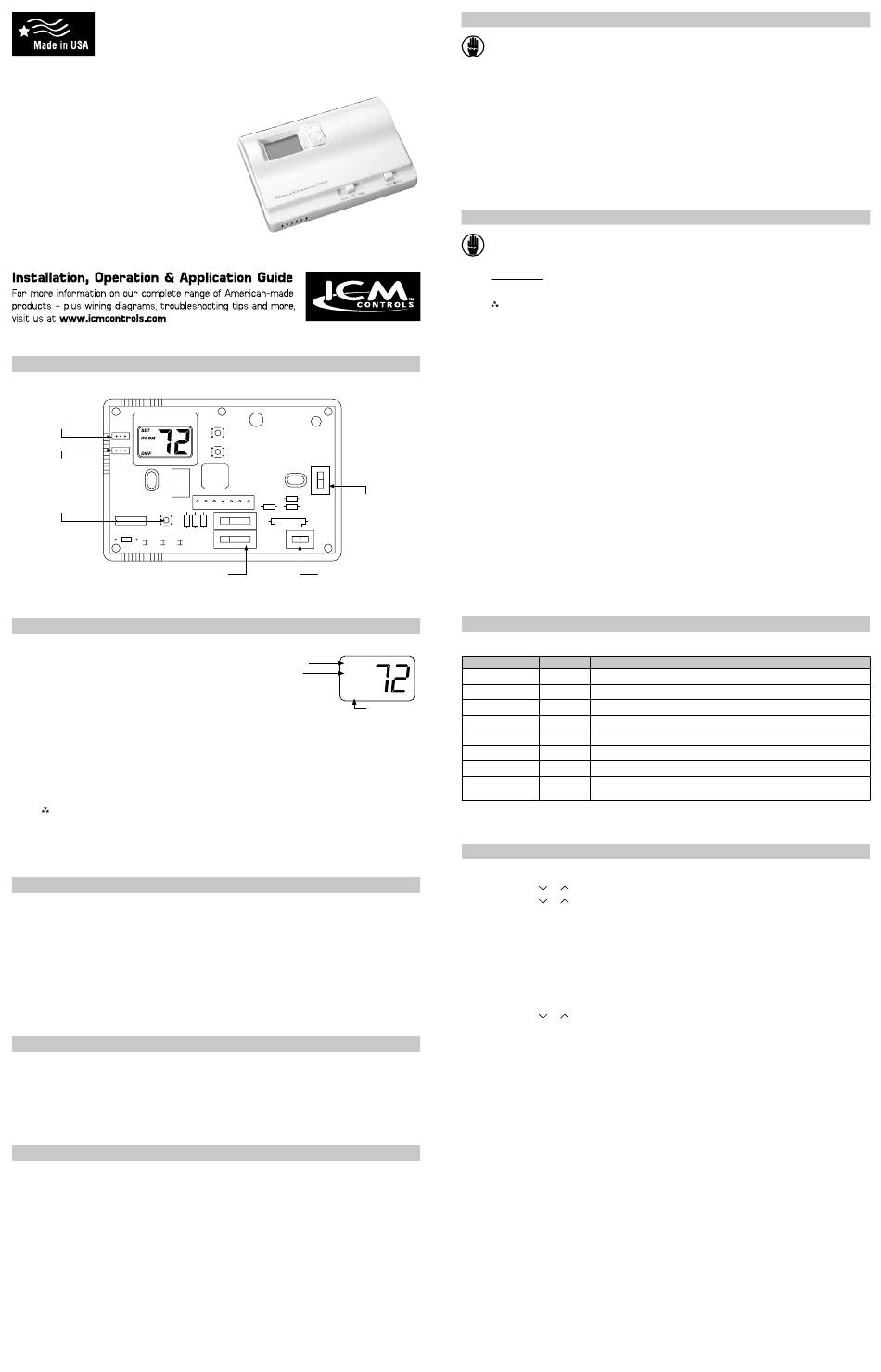

ICM Controls SC2001 Installation, Operation & Application Manual

SC2001
Non-Programmable Electronic Thermostat
• Controls Single Stage Heating/Cooling
Systems
• Single Stage Heat Pump Systems
• Compatible with Gas, Oil or Electric
Systems
• 30-Minute Power Loss Memory
Retention
• For use with 24 VAC Systems

Parts Diagram

Celsius/
Fahrenheit
Jumper
F–C
NON–HP
Heat Pump/
HP
Non-Heat
Pump Jumper
Reset Button

Specifications

Input:
• Voltage: 18-30 VAC
Output:
• Maximum: 1 amp per terminal (3 amp total for all terminals)
Temperature Ranges:
• Temperature control range: 45°F to 90°F (7°C to 32°C)
Accuracy: ± 1°F (± 0.5°C)
• Differential range: 1°F to 3°F (0.5°C to 1.5°C)
Accuracy: ± 1°F (± 0.5°C)
• System configurations: Single-stage heat pump
• Terminations: R, C, W, Y, B, O G
Note: This thermostat is designed for: Single stage gas, oil, or electric heating, heating/
cooling systems and heat pump systems. It will retain your setpoint temperatures in
memory for up to 30 minutes during a power outage.

Important Safety Information

• Always turn off the thermostat before installing, removing, cleaning, or servicing; turn off the power
at the main power source by unscrewing fuse or switching off circuit breaker
• Do not switch to "Cool" if outside temperature is below 50 ° F (10 ° C), this could damage your A/C
system and cause injury
• Do not install on voltages higher than 30 VAC
• All wiring must conform to local and national building and electrical codes and ordinances
• While cleaning, do not get soap directly on thermostat switches or LCD readout; only use a damp
cloth with a mild soap to wipe the outside of the thermostat cover
Package Contents/Tools Required
Package includes: SimpleComfort ® 2001 non-programmable thermostat on base, thermostat cover,
wiring labels, screws and wall anchors, Installation, Operation and Application
Guide.
Tools required for installation: Drill with 3/16" bit, hammer, screwdriver.

General Description

• The SimpleComfort 2001 thermostat is a hardwired, digital, mercury-free, non-programmable,
®
electronic thermostat
• Compatible with single stage heating systems, heating/cooling systems, and heat pump
systems, works with gas, oil, or electric systems
• Suitable as a master thermostat in zoned system applications
• Separate setpoints for heating and cooling
• Freeze Protection Feature: Protects pipes from freezing! If the room temperature drops to 40 ° F,
the thermostat automatically turns on the heat; the thermostat must be in the Heat position
• Built-in Compressor Protection for Air Conditioners; to protect the A/C's compressor, there is a
5-minute delay between the system turning off and the A/C starting
• 30-minute power loss memory retention protection
Manual Changeover
Non-Programmable
Gas
Electric Gas/Electric
Switch
Auto On
Cool Heat
Off
Mode Switch Fan Switch
Room
temperature
SET
setpoint
ROOM
Room
temperature
DIFF
Hardwired
ELECTRICAL SHOCK HAZARD – Turn off power at the main service panel by removing
the fuse or switching the appropriate circuit breaker to the OFF position before
removing the existing thermostat.
1. Turn off power to the heating and cooling system by removing the fuse or switching off the
appropriate circuit breaker.
2. Remove cover of old thermostat. This should expose the wires.
3. Label the existing wires with the enclosed wire labels before removing wires. See Replacing
Wiring Labels table (below) on other side for old and new label identification.
4. After labeling wires, remove wires from wire terminals.
5. Remove existing thermostat base from wall.
6. Refer to the following section for instructions on how to install this thermostat.
ELECTRICAL SHOCK HAZARD – Turn off power at the main service panel by removing
the fuse or switching the appropriate circuit breaker to the OFF position before
removing the existing thermostat.
IMPORTANT: Thermostat installation must conform to local and national building and
Note: Mount the thermostat about five feet above the floor. Do not mount the thermostat on
an outside wall, in direct sunlight, behind a door, or in an area affected by a vent or
duct.
1. Turn off power to your system. Move the Mode switch to Off .
2. Move the Fan switch to Auto.
3. To remove cover, insert and twist a coin or screwdriver in the slots on the sides of the thermostat.
4. Put thermostat base against the wall where you plan to mount it (Be sure wires will feed through
the wire opening in the base of the thermostat).
5. Mark the placement of the mounting holes.
6. Set thermostat base and cover away from working area.
7. Using a 3/16" drill bit, drill holes in the places you have marked for mounting.
8. Use a hammer to tap supplied anchors into mounting holes.
9. Align thermostat base with mounting holes and feed the control wires through wire opening.
10. Use supplied screws to mount thermostat base to wall.
CAUTION!: Be sure exposed portion of wires does not touch other wires.
11. Tighten screws on terminal block. Gently tug wire to be sure of proper connection. Double check
that each wire is connected to the proper terminal.
12. Seal hole for wires behind thermostat with non-flammable insulation or putty.
13. Set the Gas/Electric switch to electric or gas/oil, and heat pump jumper to NON-HP or HP.
14. Set the temperature scale jumper to Fahrenheit or Celsius.
15. Replace cover on thermostat by snapping it in place.
16. Turn on power to the system at the main service panel.
Replace the old labels with the enclosed new labels:
Old
F, G
O
B
Temperature
differential setting
Y, Y6
H, W, 4
M, 4, RH, RS, R
C
Setting the Room Temperature (Setpoint Temperature)
Step 1: Press the
Step 2: Press the
The new temperature setting is automatically saved. After 5 seconds, the display returns to showing
the current room temperature.
Setting a New Temperature Differential
The default temperature differential is 1°. When your room temperature varies by 1°F, the thermostat
turns on your system. If you notice your system turning on and off too frequently, increase the
temperature differential.
Step 1: Remove cover and press the Reset button once.
Step 2: F or the first 10 seconds of operation, the temperature differential is displayed.
Press the
Changing Fahrenheit to Celsius
The temperature displays in degrees Fahrenheit as a factory set default. Follow these steps to
change to degrees Celsius:
Step 1: Remove the cover.
Step 2: M ove the F/C jumper to the desired position, F or C using the center pin as a common.
Step 3: Press the Reset button once and reinstall the cover.
Your LCD readout changes accordingly.
Starting the Thermostat
Step 1: Move the Fan Auto/On switch into the Auto position.
Step 2: Move the Mode switch to Heat or Cool, depending on the season

To Remove Existing Thermostat

To Install Thermostat

electrical codes and ordinances.

Replacing Wiring Labels

New
G Fan control relay
O Cool active reversing valve
B Heat active reversing valve
Y Cooling control
W Heating control
C Transformer, common side
R Transformer, hot side
If the C terminal is the cooling control, connect to Y terminal; if it is
Y or C
the common side of the transformer, connect to C terminal
Operation
or button; the current temperature sepoint displays.
or button until the desired temperature sepoint displays.
or button to select desired setting.
Type
