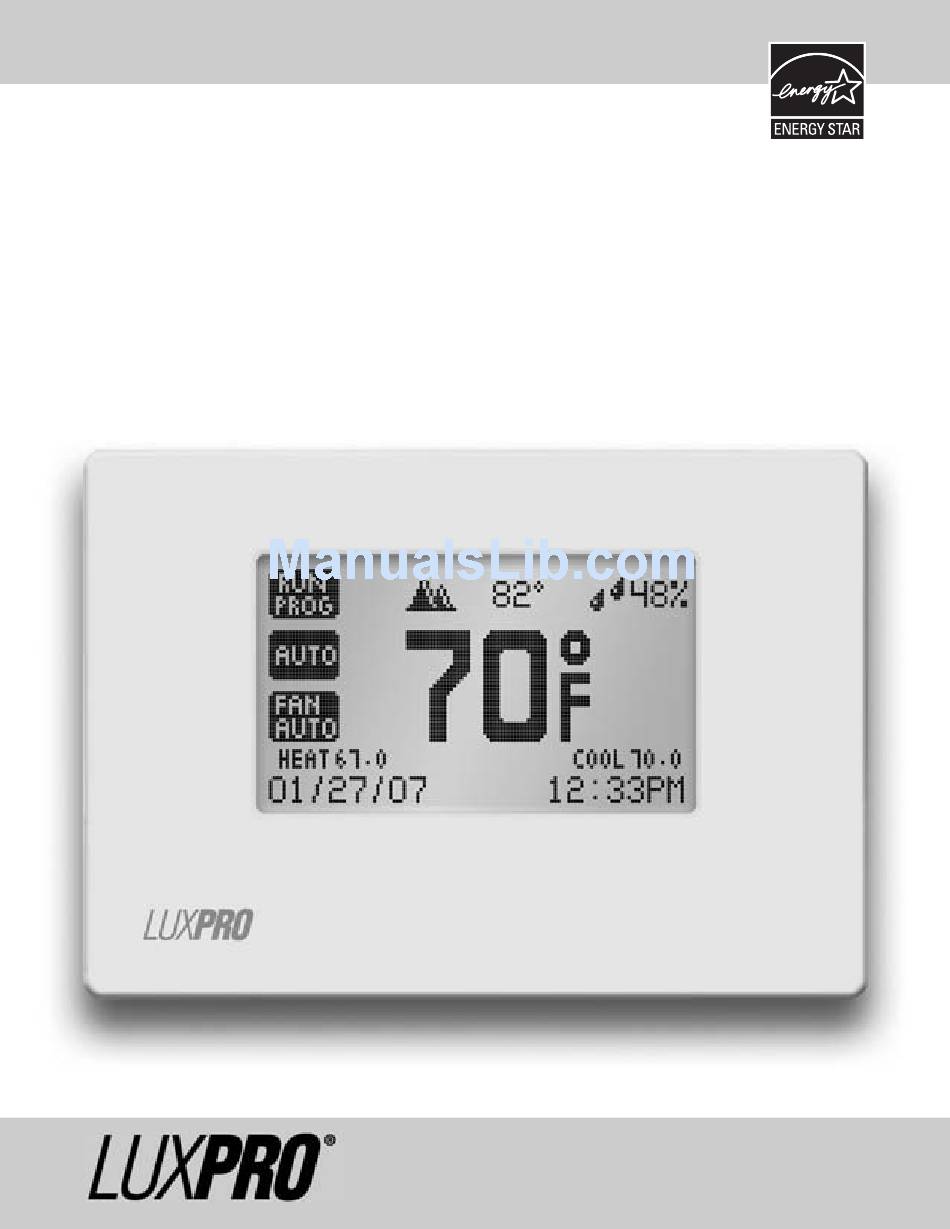

- Page 1 3-YEAR WARRANTY INSTRUCTION MANUAL LUXPRO ® PSPU732T 3 Heating and 2 Cooling with Automatic Humidity Control and Dual Fuel Switch LUX Products Corporation 6000 Commerce Parkway, Suite-I • Mt. Laurel, NJ 08054 (856) 234-7905 • FAX (856) 234-7825 52078 http://www.luxproproducts.com...
- Page 2 LUXPRO ® PSPU732T...
- Page 3 T T R R A A N N S S M M I I T T T T E E R R A A N N D D R R E E C C E E I I V V E E R R K K I I T T LUXPRO ® Part No. WTR064 Accurately Displays Current Outdoor Temperature on the LUXPRO ® Thermostat and Enables Dual Fuel and Automatic Humidity Capability Outdoor Wireless Temperature...
- Page 4 Introducing the LUXPRO ® PSPU732T touch-screen thermostat with 3-stage heating, 2-stage cooling control, an automatic humidity controller and fossil fuel switch (Available only when combined with LUXPRO ® Outdoor Wireless Transmitter and Receiver Kit. LUXPRO ® Part No. WTR064) • 7 Day programmable with 4 events per day •...
-
Page 5: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS........................5 GLOSSARY OF TERMS........................6 SELECTING A LOCATION.......................7 MOUNTING THE THERMOSTAT TO THE WALL ................8 WIRING LEGEND...........................9 WIRING DIAGRAMS ........................10 HOME SCREEN...........................16 CONTROL SCREEN........................17 THERMOSTAT OPERATION MODES .....................18 TEMPERATURE CONTROL MODES ....................19 AUTOMATIC HUMIDITY CONTROL ....................20 HUMIDIFY AND HUMIDITY SETPOINT ..................21 DE-HUMIDIFY AND HUMIDITY SETPOINT..................22 FAN OPERATION MODES ......................23... -
Page 6: Glossary Of Terms
SETBACK - The automatic alteration of the thermostat control point(s) by means other than man- ually changing the temperature set point. SET POINT - The desired temperature setting on an electromechanical or electronic thermostat. LUXPRO ® PSPU732T... -
Page 7: Selecting A Location
SELECTING A LOCATION Install your LUXPRO ® thermostat approximately 5 feet (1.5 meters) above the floor in an area with good air circulation. Avoid the following locations: • Hot or cold air from ducts • Radiant heat for appliances or sun such as a skylight •... -
Page 8: Mounting The Thermostat To The Wall
HVAC unit(s). Please refer to Wiring Table to determine the appropriate wire connec- tions. Place the thermostat on the backplate by firmly but gently from the top aligning the pins with the screw terminals. 10. Turn on the electricity at the electrical service panel. LUXPRO ® PSPU732T... -
Page 9: Wiring Legend
WIRING LEGEND TERMINAL EQUIPMENT STANDARD COLOR First Heat Pump and AC Yellow Green First Stage Furnace White Reverse Valve - Second Stage Furnace Orange Second Heat Pump and AC Unknown Common Blue Humidity Control Unknown Dehumidify Control, Variable Fan Control Unknown Unknown 11 and 12... -
Page 10: Wiring Diagrams
WIRING DIAGRAMS 1 AIR CONDITIONER I1 RC DH H C Y2 RH OBW W2 G Y1 COMMON 2 STAGE COOL I1 RC DH H C Y2 RH OBW W2 G Y1 COOL 2 COOL 1 COMMON LUXPRO ® PSPU732T... - Page 11 WIRING DIAGRAMS 1 AIR CONDITIONER AND 1 STAGE HEAT I1 RC DH H C Y2 RH OBW W2 G Y1 HEAT COMMON 1 AIR CONDITIONER AND 2 STAGE HEAT I1 RC DH H C Y2 RH OBW W2 G Y1 HEAT 2 HEAT 1 COMMON...
-
Page 12: Heat Pump
1 HEAT PUMP I1 RC DH H C Y2 RH OBW W2 G Y1 REVERSE VALVES COMMON 1 HEAT PUMP AND 1 STAGE HEAT I1 RC DH H C Y2 RH OBW W2 G Y1 REVERSE VALVES HEAT COMMON LUXPRO ® PSPU732T... -
Page 13: Heat Pumps
WIRING DIAGRAMS 1 HEAT PUMP AND 2 STAGE HEAT I1 RC DH H C Y2 RH OBW W2 G Y1 HEAT 2 REVERSE VALVES HEAT 1 COMMON 2 HEAT PUMPS I1 RC DH H C Y2 RH OBW W2 G Y1 REVERSE VALVES COMMON INSTRUCTION MANUAL... - Page 14 WIRING DIAGRAMS 1 TRANSFORMER I1 RC DH H C Y2 RH OBW W2 G Y1 HEAT TRANSFORMER 2 TRANSFORMERS I1 RC DH H C RH OBW W2 G Y1 COOL HEAT TRANSFORMER TRANSFORMER LUXPRO ® PSPU732T...
- Page 15 WIRING DIAGRAMS HUMIDIFIER WITHOUT TRANSFORMER I1 RC DH H C Y2 RH OBW W2 G Y1 HUMIDIFIER 1st WIRE HUMIDIFIER 2nd WIRE INSTRUCTION MANUAL...
-
Page 16: Home Screen
The HOME SCREEN displays the following information: Current Room Temperature Current Room Humidity Fan Operation Indicator Current Outdoor Vacation Mode Indicator Temperature Security Indicator Current Thermostat Operation Mode Heat setpoint Current Temperature Cool setpoint Control Mode Date Current Fan Operation Mode Time LUXPRO ® PSPU732T... -
Page 17: Control Screen
CONTROL SCREEN > > To access the CONTROL SCREEN, simply touch the HOME SCREEN Screen… anywhere! > > From the CONTROL SCREEN, you can: Change the Temperature Setpoint(s) using - and + buttons. In AUTO MODE toggle the Heat/Cool button (Heat or Cool will flash once selected), then raise or lower setpoints as desired. -
Page 18: Thermostat Operation Modes
Control Program with 4 independent events per day. To set up a custom tem- perature control program with customizable Temperature Setpoint and Fan operation mode, refer to Section PROGRAM SETTINGS (page 27). HOLD TEMPERATURE: the thermostat regulates the room temperature as determined by the selected Temperature Setpoint. LUXPRO ® PSPU732T... -
Page 19: Temperature Control Modes
TEMPERATURE CONTROL MODES > > Based on your HVAC equipment LUXPRO ® thermostat can operate in the following tempera- ture control modes - AUTO or HEAT or EMERGENCY HEAT or COOL or OFF AUTO - the thermostat keeps the room temperature between the selected HEAT and COOL setpoints by using both the cooling and heating HVAC units. -
Page 20: Automatic Humidity Control
Outdoor Temp in °F -29°C -20°F -24°C -10°F -18°C 0°F -12°C 10°F -7°C 20°F -7°C -20°F HUMIDITY MANUAL: The user selects the humidity setpoint. Available only in combination with WIRELESS OUTDOOR TEMPERATURE TRANSMITTER AND RECEIVER KIT (WTR064) LUXPRO ® PSPU732T... -
Page 21: Humidify And Humidity Setpoint
Once you choose HUMIDIFY follow these easy steps: • The HUM setpoint with - and + icons allow you to lower and raise your setpoint. Example of the typical use of the Humidify Function: If the current humidity is 30% your LUXPRO ®... -
Page 22: De-Humidify And Humidity Setpoint
DE-HUMIDIFY SETPOINT: Allows you to reduce and maintain the relative humidity at a specific setpoint. > > Please note that this feature functions in the COOL Mode only. Your LUXPRO ® hermostat must be configured to control a cooling unit such as an air conditioner of heat pump. Once you choose De-Humidify follow these easy steps: •... -
Page 23: Fan Operation Modes
FAN OPERATION MODES > > LUXPRO ® thermostat can operate the fan in one of the following three modes: FAN AUTO: The fan runs only when there is a demand for heating or cool- ing. FAN ON: The fan runs continuously FAN INTERMITTENT: The fan runs 10 minutes per 1/2 hour providing a convenient way to improve air quality and save energy. -
Page 24: Menu Screen
Access the SET SCREEN menu to change screen properties. Access VACATION SETTINGS to activate the VACATION MODE Access FILTER MONITOR to review days of "fan run time." LUXPRO ® PSPU732T... - Page 25 CONTROL SCREEN. DE-HUMIDIFY reduces and maintains the relative humidity of the room at a humidity setpoint selected on the CONTROL SCREEN. Please note that DE-HUMIDIFY feature functions only in COOL mode. LUXPRO ® thermostat will regulate both the room temperature and the room humidity at the same time.
-
Page 26: Date And Time Settings
DATE AND TIME SETTINGS Select the 12 OR 24 HOUR CLOCK display by pushing the corresponding button. Set the TIME by togggling hour, minute and AM/PM buttons. Set the DATE by toggling Month, Day and Year buttons. LUXPRO ® PSPU732T... -
Page 27: Program Settings
PROGRAM SETTINGS PROGRAM SETTINGS feature allows you to easily and quickly program daily temperature changes to fit your lifestyle and reduce energy con- sumption. You can customize the program for each day of the week with 4 independent temperature and fan operation settings per day. To setup your program: Select the DAY OF THE WEEK Select the EVENT NUMBER by toggling the... -
Page 28: Energy Watch
WATCH Settings (see page 32) Energy Watch will display the consumption as well as the real time dollar cost of the HVAC system. Otherwise, ENERGY WATCH will display only the total time the Compressor and the Furnace have been operating. LUXPRO ® PSPU732T... -
Page 29: Set Screen Options
6:00AM . OFF: screen background is determined by REVERSE function. • CONTRAST: Toggle the screen contrast settings button (1-10) to select the screen contrast that suits best your thermostat surroundings. LUXPRO ® recommends the setting of 7. -
Page 30: Vacation Mode
When the Vacation mode is active the suitcase icon appears on the HOME SCREEN. Upon your return, the message VACATION MODE ENDED will be displayed on the screen. Simply touch the screen, and your LUXPRO ® thermostat will automatically revert to the Program Settings if you are in RUN PROGRAM or to HOLD TEMPERATURE operation mode. -
Page 31: Filter Monitor
FILTER MONITOR FILTER MONITOR: Displays filter usage in days RESET: Resets filter timer (You should reset FILTER MONITOR after chang- ing the air filter. When activated the FILTER MONITOR icon appears on your HOME SCREEN - this feature must be activated in ADVANCED SETTINGS. INSTRUCTION MANUAL... -
Page 32: Advanced Settings - Features Settings
Compressor and the Furnace have been operating. Select temperature display in either CELSIUS or FAHRENHEIT degrees by toggling the °C / °F button to either °C or °F. LUXPRO ® PSPU732T... - Page 33 ADVANCED SETTINGS - FEATURES SETTINGS SECURITY: The security settings allow you to protect your LUXPRO ® thermostat from unautho- rized use. Turn Security ON or OFF. You will be prompted to enter the PIN. The Default PIN 1111. To CHANGE PIN, enter your new PIN and then, when prompted, re-enter your new PIN.
-
Page 34: Advanced Settings - System Configuration
• CYCLE RATE: Set Maximum compressor cycles per hour. We recommend that the factory default be maintained for optimal performance.. • AUTO CHANGE: Set the minimum difference between Auto Mode, Heat and Cool temperature set- points. We recommend that the factory default be maintained for optimal performance. LUXPRO ® PSPU732T... -
Page 35: Advanced Settings - Dual Fuel Switch
ADVANCED SETTINGS - DUAL FUEL SWITCH IMPORTANT: This feature can only be activated when used with the LUXPRO ® Outdoor Wireless Temperature Transmitter and Receiver. Please install the LUXPRO ® Outdoor Wireless Temperature Transmitter and Receiver before activating this feature. -
Page 36: Advanced Settings - Differential Settings
> > LUXPRO ® PSPU732T allows you to control up to 3 Stages of Heating and 2 Stages of Cooling, dependent on the type of system you have configured. • 1ST STAGE DIFFERENTIAL: Set temperature difference between temperature set point and actual temperature reading before 1st stage heating or cooling is initiated. -
Page 37: Advanced Settings - Timer Feature
ADVANCED SETTINGS - TIMER FEATURE • Specify the number of minutes for which Stage 1 will function until Stage 2 is activated to help raise (or cool) temperature (if the temperature set point is not reached). This unique function avoids excess compressor wear in the case where the necessary temperature set point is not met through setting of the Staging Differential. -
Page 38: Advanced Settings - Heat Pump
• HP ON when Furnace On: Heat Pump and Furnace can operate together when 2nd stage fur- nace is required. HP “OFF” when Furnace On: turns off the Heat Pump when the furnace is On (required on some gas or oil furnaces). LUXPRO ® PSPU732T... -
Page 39: Advanced Settings - Humidity Settings
ADVANCED SETTINGS - HUMIDITY SETTINGS > > IMPORTANT: The Automatic Humidity Control feature can only be activated when used with the LUXPRO ® Outdoor Wireless Temperature Transmitter and Receiver. Please install the LUXPRO ® Outdoor Wireless Temperature Transmitter and Receiver before activating this feature. - Page 40 • DH REVERSE function can be configured to meet the requirements of many variable speed fans, consult the manual of your variable speed fan and determine if an “open” or “closed” contact results in slowing fan operation. LUXPRO ® PSPU732T...
- Page 41 ADVANCED SETTINGS - HUMIDITY SETTINGS > > De-humidification options for increasing comfort and efficiency • HRV/ERV units can be controlled by simply connecting the DH terminal on the thermostat to the terminal DH of the HRV/ERV. Most HRV/ERV units will control properly with the DH REVERSE fea- ture turned off (contact normally open).
-
Page 42: Advanced Settings - Calibration
If you have determined due to drafts, sunlight or other environmental factors that your thermostat requires calibration, follow this easy guide. Common cause of offset are lack of air circulation, drafts or skylights in the direct vicinity of your LUXPRO ®... -
Page 43: Advanced Settings - Calibration
ADVANCED SETTINGS - CALIBRATION > > Temperature Calibration Table • Determine the temperature difference using an accurate thermometer and use the following table to calibrate your thermostat. The thermostat temperature reading can be calibrated by ±19°F (±9.5°C). Calibration Number °C Change °F Change ±0.0 ±0.0°F... -
Page 44: Simple Thermostat Mode
To enable “SIMPLE MODE”, press the reset button (take off the thermostat faceplate and press the reset button located in the bottom right-hand corner). The message “Touch for simple ther- mostat” will appear. Touch the screen immediately, and your LUXPRO ®... -
Page 45: Troubleshooting
Air conditioning turns on in HEAT mode and heating turns on in COOL mode. Reverse the OB valve (see “Advanced Settings” Page 36). PARTIAL LOCK and FULL LOCK do not function. You must not touch the screen for 1 minute for LUXPRO ® thermostat to automatically lock. -
Page 46: Important Notice
Terminals RC and RH are internally connected together however you should wish to use two transformers simply cut with a blade the copper trace on the printed circuit board located between the C and Y2 screw terminals. LUXPRO ® PSPU732T... -
Page 47: Warranty
WARRANTY HARDWARE LUX Products Corporation warrants the original end user (“Customer”) that new LUXPRO ® branded products will be free from defects in workmanship and materials, under normal use, for three (3) years from the original purchase date. SOFTWARE LUX Products Corporation warrants to Customer that the LUXPRO ®... - Page 48 TECHNICAL ASSISTANCE If you have any problems installing or using this thermostat, please reread the instructions careful- ly or visit our online technical support at www.luxproproducts.com.If you require assistance, please call our Technical Assistance number between 8:00 a.m. and 4:30 p.m. Eastern Standard Time, Monday through Friday.
