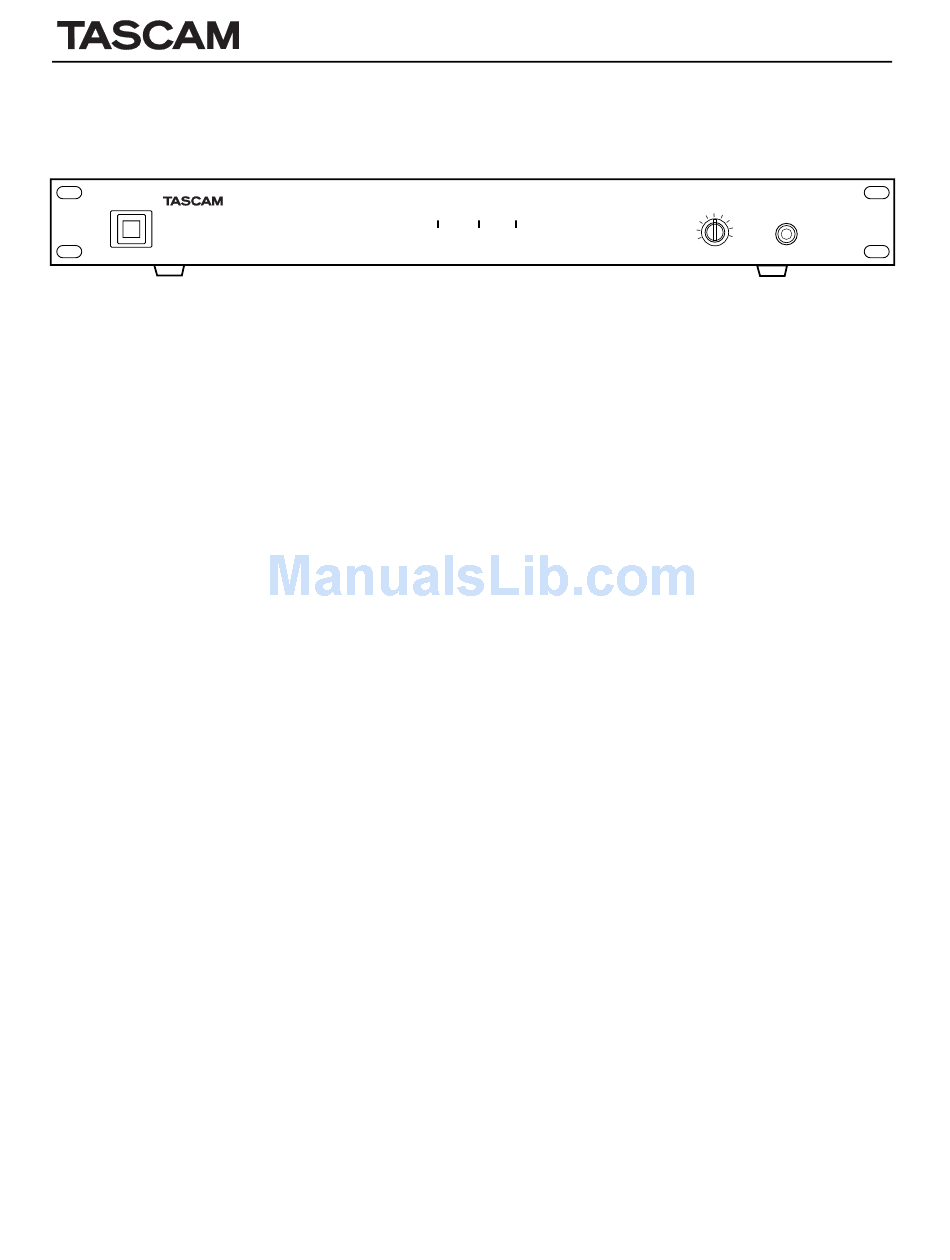

Front Panel-PA-20 II
MK
Every recording or project studio needs at least
one set of nearfield monitors for critical listening.
And so, every studio needs to power them with
a reliable, clean-sounding power amp that won't
add distortion to the incoming signal. The
TASCAM PA-20 II fills the bill with reliable,
MK
high-performance audio power amplification for
nearfield studio monitoring and other low-level
sound reinforcement applications. With its dual
power, switchable stereo/mono design, it excels
in control room and recording booth applica-
tions, whether it's powering single speakers,
stereo pairs or bridged series.
Like every TASCAM product, the PA-20
built to last, and provides years of trouble-free
service. It combines a rugged power transformer
and quality semiconductor circuitry with a con-
vection-cooled heatsink that dissipates heat
during marathon listening sessions.
Accepts Balanced &
Unbalanced Input
For maximum flexibility, the PA-20
with both XLR balanced and RCA unbalanced input
connectors, so it accepts signal from any commonly
used studio equipment. The back-panel inputs are
optimized for +4 dBm and -10 dBV levels, respectively,
minimizing gain staging to a single, front panel sen-
sitivity control. Nearby are well-labeled speaker wire
terminals that make it easy to correctly set up for
mono or stereo use. Setup is fast, easy and problem
free.
II
MK
II DUAL POWER AMPLIFIER
MK
POWER PROTECTION BTL
II is
MK
II is equipped
MK
• • •
Dual Power Means Added Flexibility
For stereo nearfield monitoring, the PA-20
25 watts per side of continuous power for flat response,
accurate reproduction all through the audible spec-
trum, from 20 Hz to 20 kHz. Total Harmonic Distortion
is minimized to 0.05%. For higher-rated speakers and
high-powered mono applications, the PA-20
easily converted to deliver 50 Watts into 8 ohms. Just
switch to bridged BTL (Balanced Transformerless)
mode with one rear panel switch, and reconnect the
speaker wires. Sound quality is still almost faultless,
at 0.008% Total Harmonic Distortion.
Protects Speakers Against Damage
The PA-20 II features multiple, resettable electronic
MK
protection circuits to guard against destructive turn-on
transients, output overload, DC offsets and output
shorts. Bright LEDs on the front of the unit light up
whenever the protection circuits are engaged, so that
on-going problems can be identified and rectified.
• BTL indicator lamp ensures you know whether
you're in stereo or bridged mono mode
• Protection mode lamp lights whenever PA-20
protecting your speakers are getting during power-
down and voltage irregularities
• Control input sensitivity (and indirectly, how much
signal your speakers are pumping) with one control
• Accepts balanced XLR or 1/4" input jacks
• Connect your speaker wires for stereo or bridged
mono use
• One switch toggles between 25W stereo and 50W
BTL output
DUAL POWER AMPLIFIER
